RS PRO Guide Block EGW, 19.5kN Dynamic Load, 25mm Rail Width

View all Linear Guide Blocks

Subtotal (1 unit)*

£120.41

(exc. VAT)

£144.49

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£120.41

*price indicative

RS Stock No.:
360-921
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Manufacturer Series

EGW

For Rail Width

25mm

Carriage Length

59.1mm

Accuracy Class

H

Carriage Width

73mm

Dynamic Load Rating

19.5kN

Static Load Rating

19.5kN

Size

25mm

COO (Country of Origin):
TW

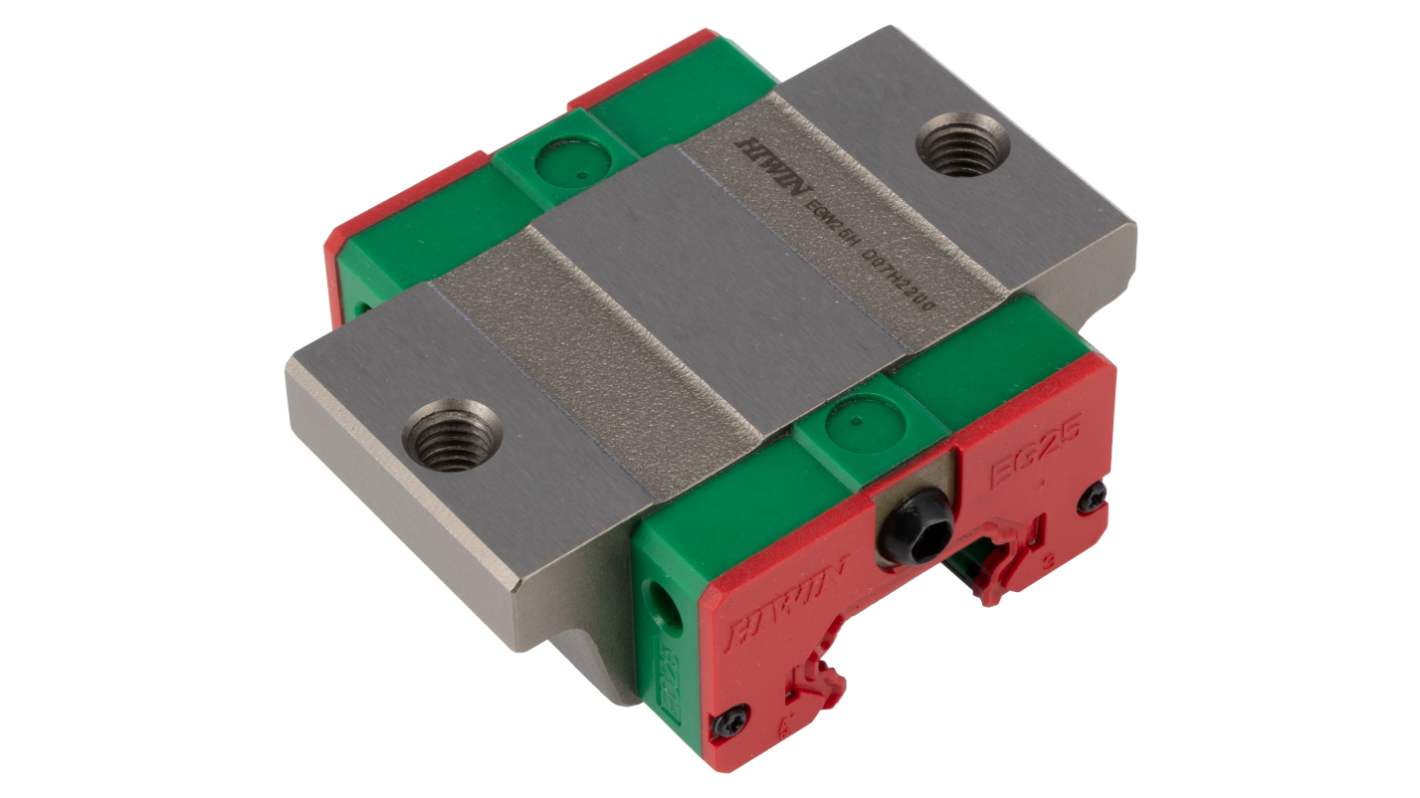

RS PRO EGW Linear Guide Block for 25mm Rail


An interchangeable top or bottom mounting low profile linear guide suitable for use with the RS PRO linear guide rails.

Featuring a four ball track design with a recirculating ball system offering high rigidity and low levels of friction loss.

The guide block is constructed from hardwearing Carbon Steel and features ball retainers ensuring the recirculating ball bearings stay in place when removed from the rail.

With a high load capacity and equal load rating in all four directions the guide block allows for higher accuracy and features self levelling alignment.

The guide block features a light preload and is designed for medium loads. Complete with end seals preventing the ingress of dust maintaining accuracy and extending service life.

The linear guide blocks short length is perfect for high speed automation applications with limited space. Other applications include lathes, tools, automation, transportation and precision measuring technologies.

Features and Benefits


Flange linear block guide

Top or bottom mounting

4 row recirculating ball bearings

45° contact angle

High load capacity

Equal load rating

Carbon Steel construction

Light preload

Medium load type

High rigidity free of play

High precision

Low friction losses
