RS PRO Guide Block MGW, 1.37kN Dynamic Load, 7mm Rail Width
- RS Stock No.:
- 360-805
- Brand:
- RS PRO
Subtotal (1 unit)*
£61.43
(exc. VAT)
£73.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 21 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £61.43 |
*price indicative
- RS Stock No.:
- 360-805
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Manufacturer Series | MGW | |
| For Rail Width | 7mm | |
| Accuracy Class | H | |
| Carriage Length | 31.2mm | |
| Carriage Width | 25mm | |
| Dynamic Load Rating | 1.37kN | |
| Static Load Rating | 2.06kN | |
| Size | 7mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Manufacturer Series MGW | ||
For Rail Width 7mm | ||
Accuracy Class H | ||
Carriage Length 31.2mm | ||
Carriage Width 25mm | ||
Dynamic Load Rating 1.37kN | ||
Static Load Rating 2.06kN | ||
Size 7mm | ||
- COO (Country of Origin):
- TW

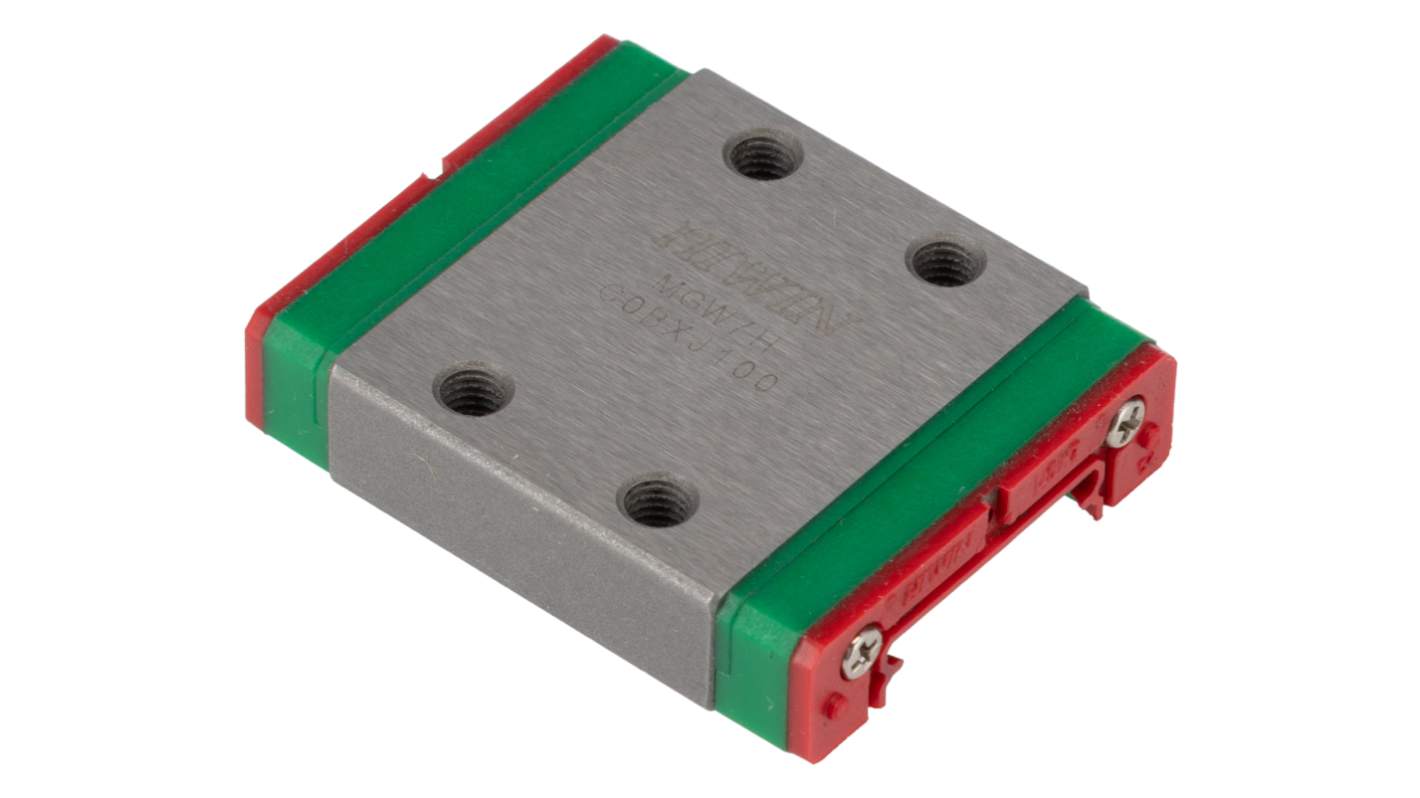

RS PRO MGW Linear Guide Block for 7mm Rail
A compact and lightweight top mounting linear guide block designed for miniature equipment and suitable for use with the RS PRO linear guide rails.
Featuring a gothic arc contact design offering excellent rigidity and a high level of accuracy. The guide block is constructed from hardwearing Stainless Steel and features ball retainers ensuring the recirculating ball bearings stay in place when removed from the rail.
Capable of sustaining loads from all directions the guide block features a very light preload and is designed for medium loads. Complete with end seals preventing the ingress of dust maintaining accuracy and extending service life.
The linear guide block is ideal for use in a wide range of applications including printers, robotics, precision measuring and semiconductor technologies.
Featuring a gothic arc contact design offering excellent rigidity and a high level of accuracy. The guide block is constructed from hardwearing Stainless Steel and features ball retainers ensuring the recirculating ball bearings stay in place when removed from the rail.
Capable of sustaining loads from all directions the guide block features a very light preload and is designed for medium loads. Complete with end seals preventing the ingress of dust maintaining accuracy and extending service life.
The linear guide block is ideal for use in a wide range of applications including printers, robotics, precision measuring and semiconductor technologies.
Features and Benefits
Flange linear block guide
Top mounting
Compact miniature design
2 row recirculating ball bearings
45° contact angle
Stainless steel construction
Very light preload
Medium load type
Top mounting
Compact miniature design
2 row recirculating ball bearings
45° contact angle
Stainless steel construction
Very light preload
Medium load type
