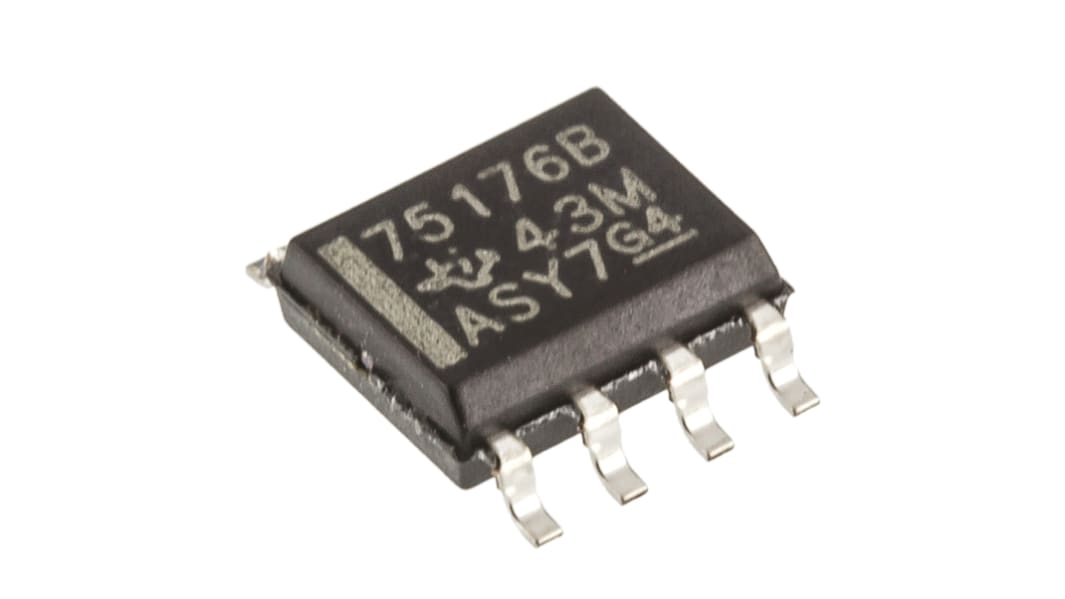

Texas Instruments 1-Channel Line Transceiver, Differential, Non-Inverting, 8-Pin SOIC

View all Line Interface ICs
Bulk discount available

Subtotal (1 tube of 75 units)*

£61.425

(exc. VAT)

£73.725

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 20,325 unit(s), ready to ship
Units
Per unit
Per Tube*
75 - 75£0.819£61.43
150 - 300£0.655£49.13
375 - 675£0.614£46.05
750 +£0.591£44.33

*price indicative

RS Stock No.:
920-3472
Mfr. Part No.:
SN75176BD
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Logic Family

SN75

Product Type

Line Transceiver

Logic Function

Bus Transceiver

Number of Channels

1

IC Type

Line Transceiver IC

Input Type

Differential

Output Type

Differential

Polarity

Non-Inverting

Mount Type

Surface

Package Type

SOIC

Minimum Supply Voltage

4.75V

Pin Count

8

Maximum High Level Output Current

-60mA

Maximum Supply Voltage

5.25V

Minimum Operating Temperature

0°C

Maximum Propagation Delay Time @ CL

35ns

Maximum Low Level Output Current

60mA

Maximum Operating Temperature

70°C

Length

5mm

Standards/Approvals

No

Series

SN75176B

Width

3.98 mm

Height

1.75mm

Supply Current

70mA

Automotive Standard

No

RS-485 Line Drivers and Receivers, High Speed, Texas Instruments


A range of High Speed RS-485 Line Drivers, Receivers and Transceivers from Texas Instruments with data rates of 10 Mbit/s or over.

RS-485 Line Drivers and Receivers
