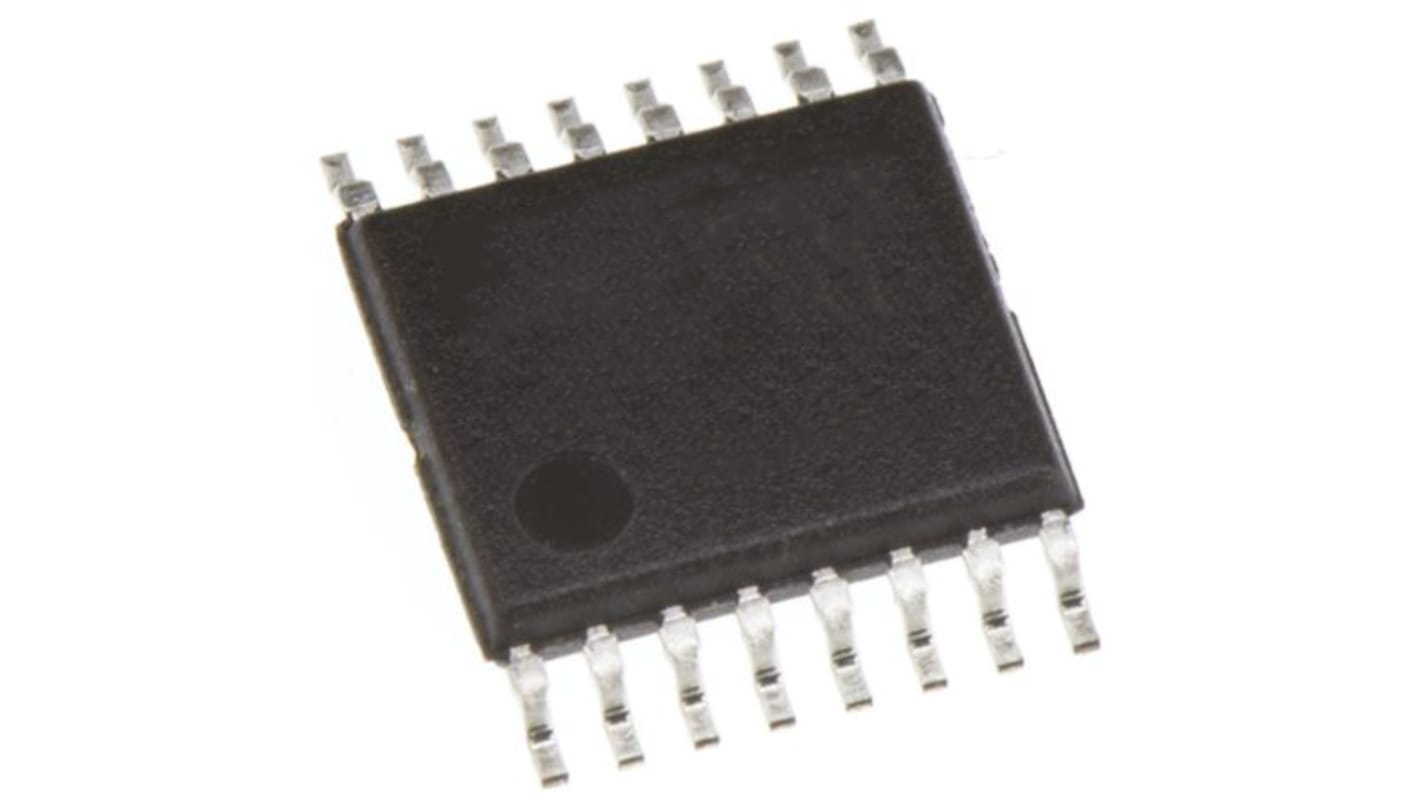

Renesas Electronics ICL3232ECV-16Z-T 16-Channel Line Transceiver, CMOS/TTL, 16-Pin TSSOP

View all Line Interface ICs

Subtotal (1 reel of 2500 units)*

£1,675.00

(exc. VAT)

£2,000.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.67£1,675.00

*price indicative

RS Stock No.:
264-3555
Mfr. Part No.:
ICL3232ECV-16Z-T
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Logic Family

CMOS/TTL

Product Type

Line Transceiver

Logic Function

Transceiver

Number of Channels

16

IC Type

Transmitter/Receiver

Input Type

CMOS, TTL

Output Type

CMOS/TTL

Mount Type

Board

Package Type

TSSOP

Pin Count

16

Minimum Supply Voltage

3V

Maximum Supply Voltage

5.5V

Maximum High Level Output Current

3mA

Minimum Operating Temperature

0°C

Maximum Propagation Delay Time @ CL

0.15μs

Maximum Low Level Output Current

0.3mA

Maximum Operating Temperature

70°C

Width

5.6 mm

Series

ICL3232E

Standards/Approvals

RoHS

Height

2mm

Length

6.5mm

Automotive Standard

No

Supply Current

1μA

COO (Country of Origin):
CN
The Renesas Electronics powered RS-232 transmitters/receivers that meet ElA/TIA-232. Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Data rates greater than 250kbps are ensured at worst case load conditions.

Latch-up free

Manual and automatic power-down features

Receiver hysteresis for improved noise immunity
