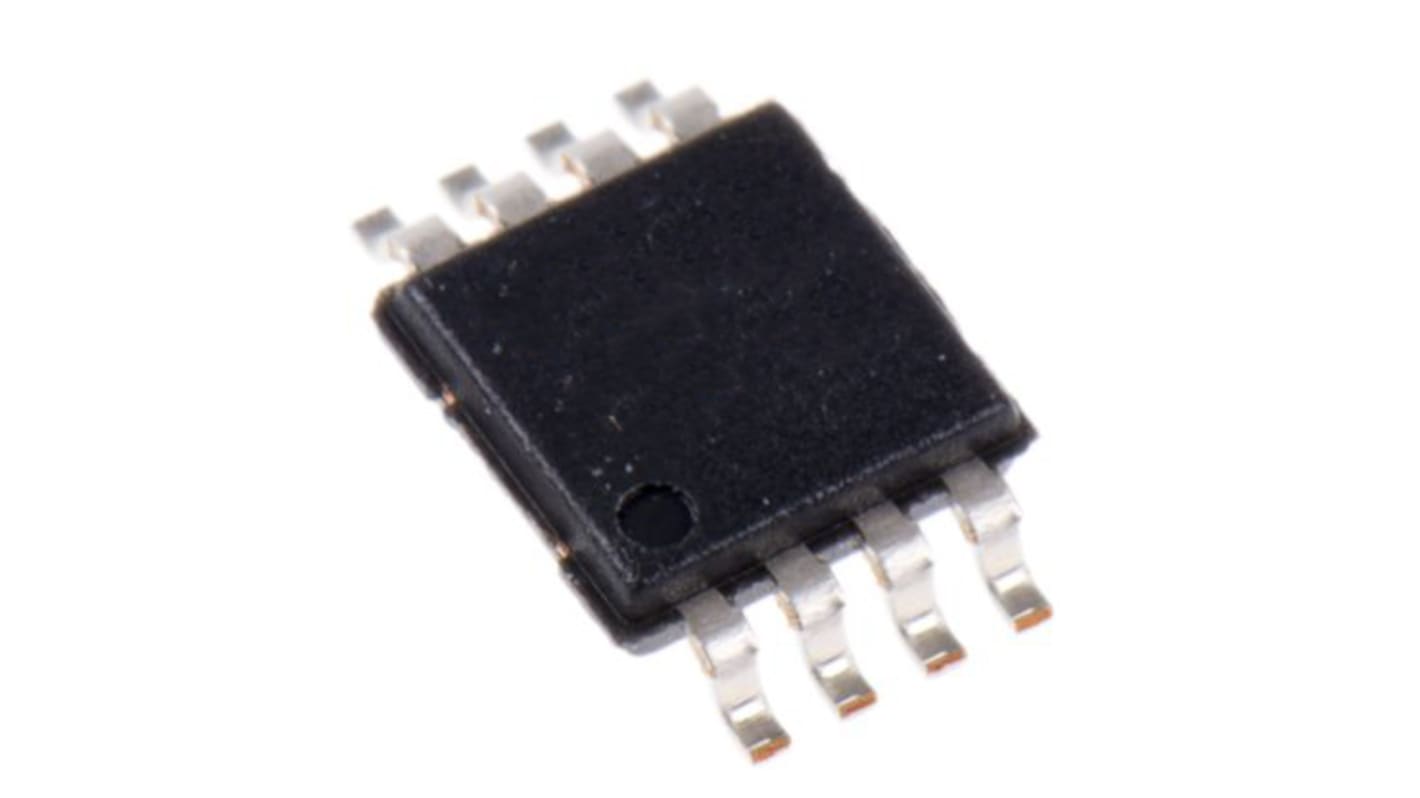

Renesas Electronics Line Transceiver, Differential, Non-Inverting, 8-Pin MSOP

View all Line Interface ICs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
256-1582
Mfr. Part No.:
ISL3159EFUZ-T7A
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Line Transceiver

Logic Family

CMOS

Logic Function

Transceiver

IC Type

Transmitter/Receiver

Input Type

RS422/RS485

Output Type

Differential

Polarity

Non-Inverting

Package Type

MSOP

Minimum Supply Voltage

4.5V

Pin Count

8

Maximum Supply Voltage

5.5V

Maximum High Level Output Current

800μA

Minimum Operating Temperature

-40°C

Maximum Low Level Output Current

2.6mA

Maximum Propagation Delay Time @ CL

1.5ns

Maximum Operating Temperature

125°C

Length

5mm

Series

ISL3159E

Standards/Approvals

RoHS

Height

1.75mm

Automotive Standard

No

Supply Current

4mA

The Renesas Transceiver is a ±15kV IEC61000 ESD protected, 5V powered, single transceiver that meets both the RS-485 and RS-422 standards for balanced communication. It also features the larger output voltage and higher data rate (up to 40Mbps) required by high speed PROFIBUS applications, and is offered in industrial and extended Industrial (-40°C to +125°C) temperature ranges. The low bus currents (+220μA/-150μA) present a 1/5 unit load to the RS-485 bus. This allows up to 160 transceivers on the network without violating the RS-485 specification’s load limit and without using repeaters.

Specified for +125°C operation

1/5 unit load allows up to 160 devices on the bus

Full fail-safe (open, shorted, terminated/undriven) receiver

Low quiescent supply current of 4mA

Low current shutdown mode of 1μA

Current limiting and thermal shutdown for driver overload protection

Pb-free (RoHS compliant)
