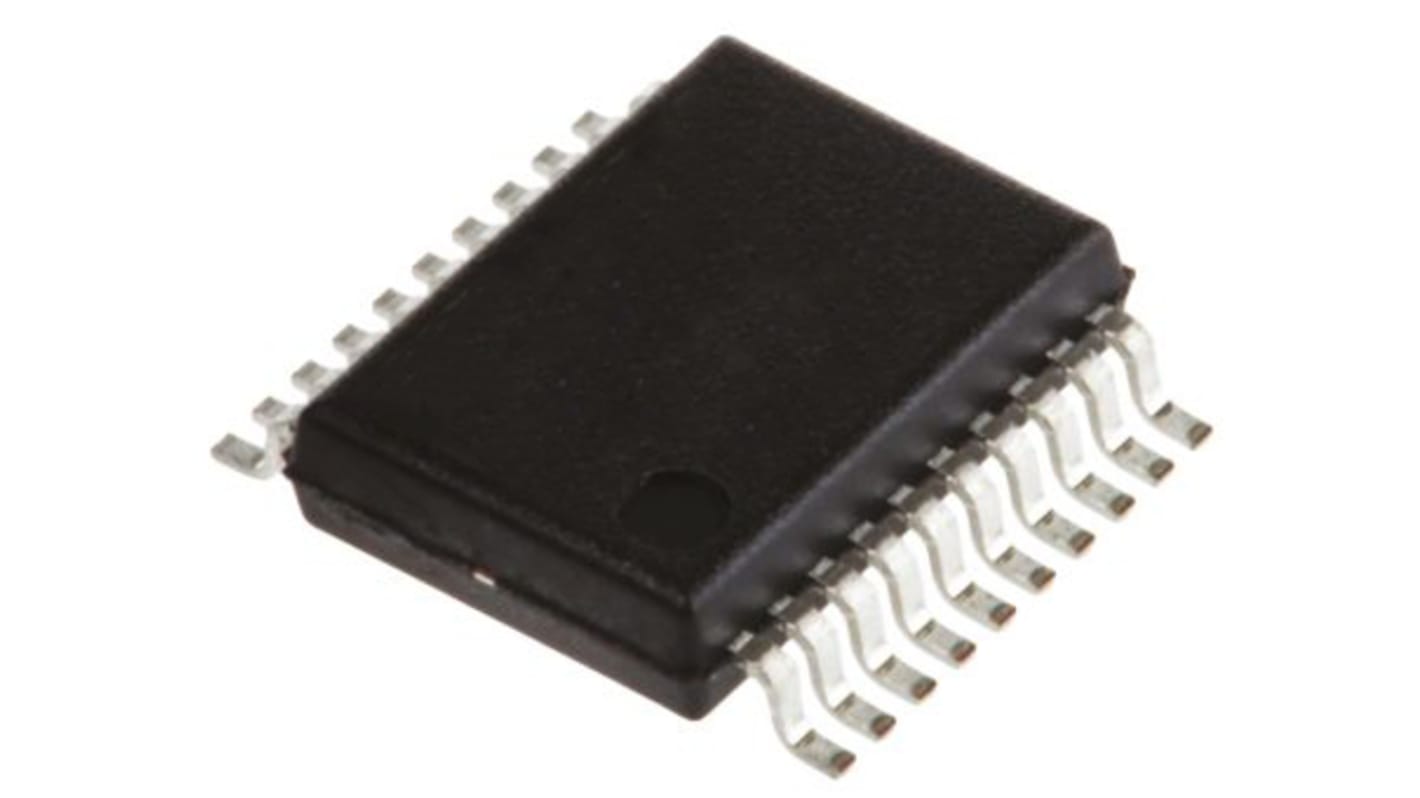

Renesas Electronics 2-Channel Line Transceiver, CMOS/TTL, 20-Pin SSOP

View all Line Interface ICs

Subtotal (1 reel of 1000 units)*

£913.00

(exc. VAT)

£1,096.00

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 2,000 unit(s), ready to ship
Units
Per unit
Per Reel*
1000 +£0.913£913.00

*price indicative

RS Stock No.:
256-1553
Mfr. Part No.:
ICL3222ECAZ-T
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Logic Family

CMOS

Product Type

Line Transceiver

Logic Function

Transceiver

IC Type

Transmitter/Receiver

Number of Channels

2

Input Type

Single Ended

Output Type

CMOS/TTL

Mount Type

Board

Package Type

SSOP

Minimum Supply Voltage

3V

Pin Count

20

Maximum High Level Output Current

3mA

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

0°C

Maximum Propagation Delay Time @ CL

0.3μs

Maximum Low Level Output Current

0.3mA

Maximum Operating Temperature

70°C

Width

5.6 mm

Series

ICL3222E

Standards/Approvals

RoHS

Length

6.5mm

Height

2mm

Automotive Standard

No

Supply Current

1mA

The Renesas RS-232 transmitter/receiver is 3.0V to 5.5V powered ,RS-232 transmitters/receivers that meet ElA/TIA-232 and V.28/V.24 specifications even at VCC 3.0V. Additionally it provides ±15kV ESD protection (IEC61000-4-2 air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical.

Latch-up free

On-chip voltage converters require only four external 0.1μF capacitors at VCC 3.3V

Manual and automatic power-down features

Receiver hysteresis for improved noise immunity

Ensured minimum data rate of 250kbps

Wide power supply range of single +3V to +5.5V

Low supply current in power-down state of 1μA

Pb-free (RoHS compliant)
