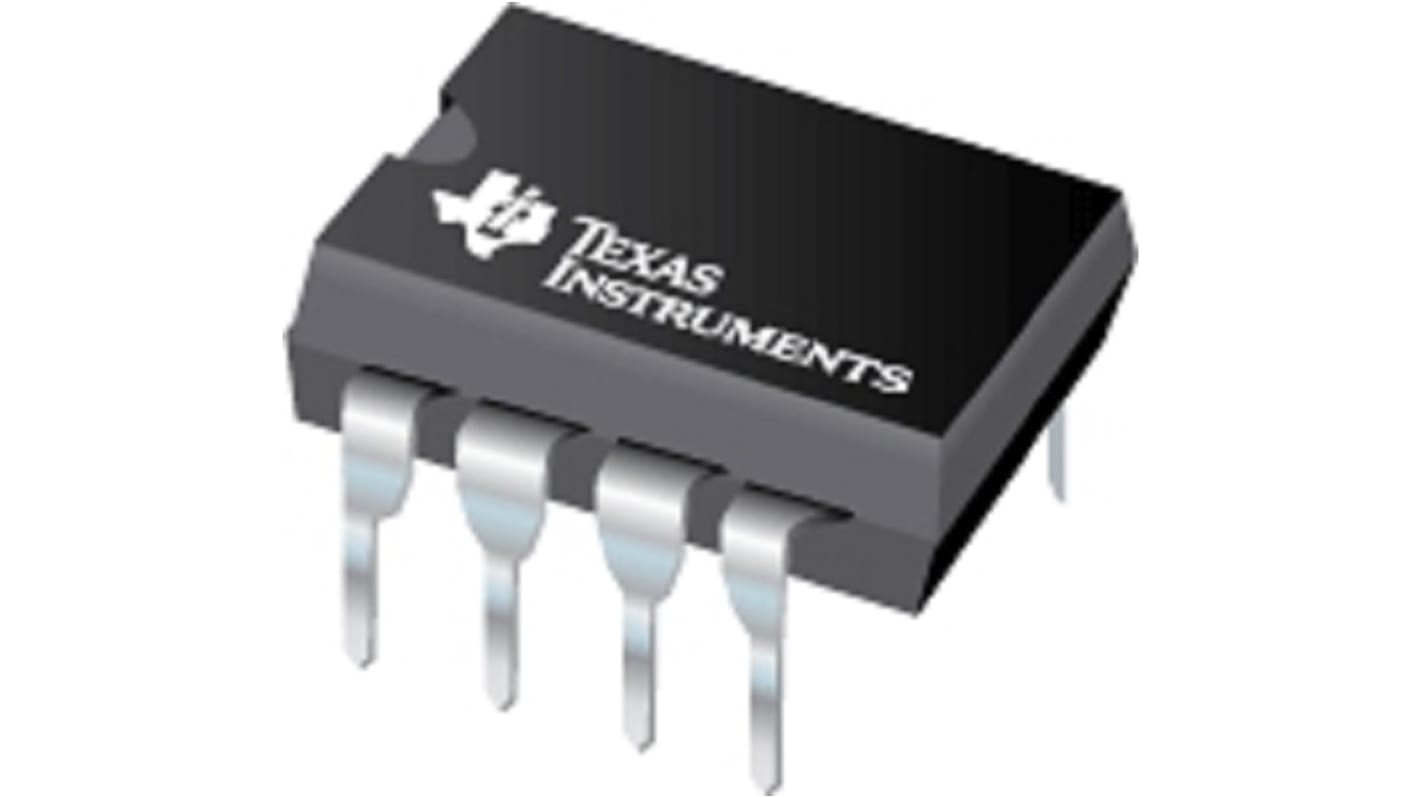

Texas Instruments Bus Transceiver, Differential, 8-Pin PDIP
- RS Stock No.:
- 252-8535
- Mfr. Part No.:
- SN65HVD1785P
- Brand:
- Texas Instruments
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 252-8535
- Mfr. Part No.:
- SN65HVD1785P
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Bus Transceiver | |
| Logic Function | Bus Transceiver | |
| Number of Channels | 1 | |
| Input Type | Differential | |
| Output Type | Differential | |
| Mount Type | Surface | |
| Package Type | PDIP | |
| Minimum Supply Voltage | 4.5V | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 2μs | |
| Maximum Operating Temperature | 105°C | |
| Series | SN65HVD1785P | |
| Length | 10.16mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Supply Current | 6mA | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Bus Transceiver | ||
Logic Function Bus Transceiver | ||
Number of Channels 1 | ||
Input Type Differential | ||
Output Type Differential | ||
Mount Type Surface | ||
Package Type PDIP | ||
Minimum Supply Voltage 4.5V | ||
Pin Count 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 2μs | ||
Maximum Operating Temperature 105°C | ||
Series SN65HVD1785P | ||
Length 10.16mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
Supply Current 6mA | ||
