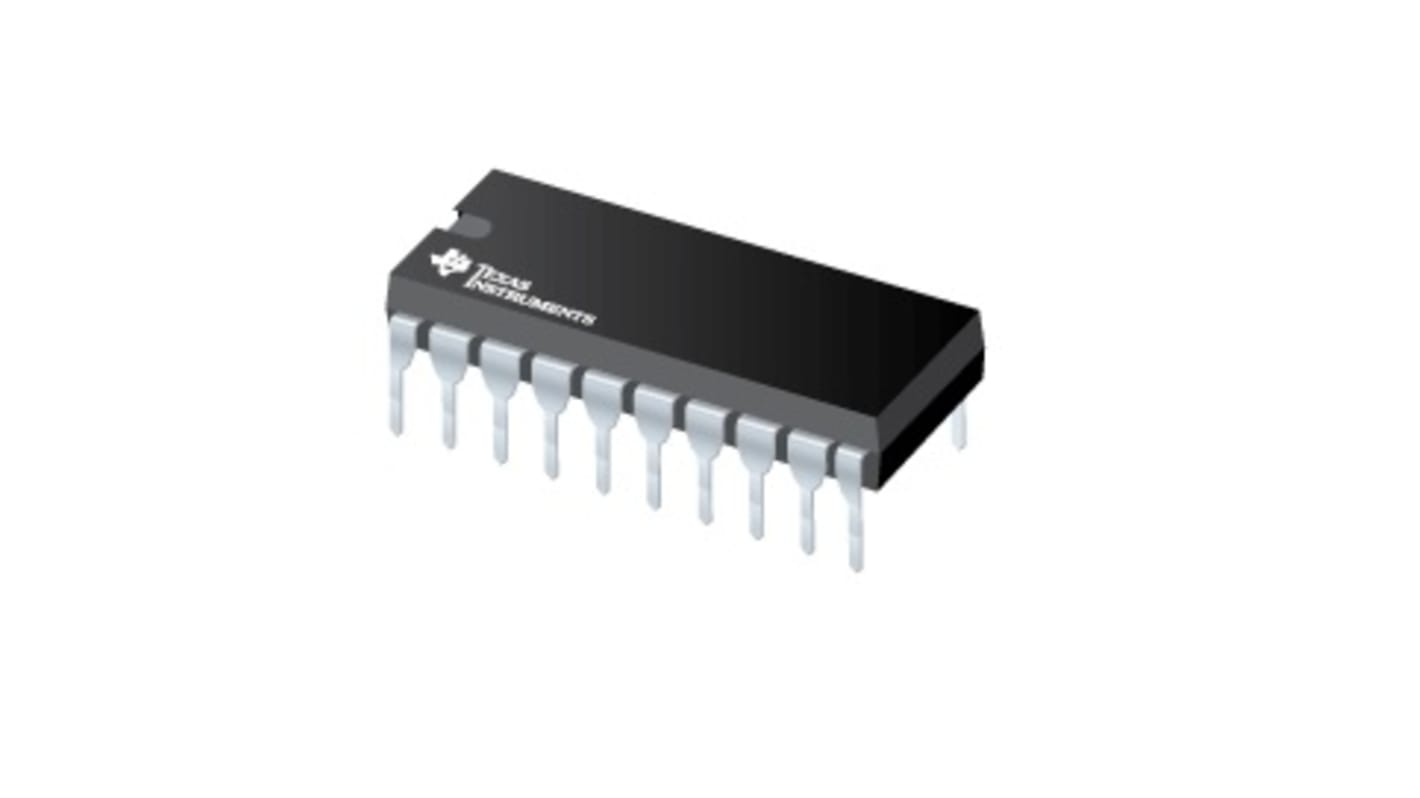

Texas Instruments 8-Channel Buffer, 3 State, 20-Pin PDIP
- RS Stock No.:
- 249-4909
- Mfr. Part No.:
- CD74HC541E
- Brand:
- Texas Instruments
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 249-4909
- Mfr. Part No.:
- CD74HC541E
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Buffer | |
| Logic Family | HC | |
| Logic Function | CMOS | |
| Number of Channels | 8 | |
| IC Type | Octal Buffer & Line Driver IC | |
| Input Type | Buffered | |
| Output Type | 3 State | |
| Mount Type | Through Hole | |
| Package Type | PDIP | |
| Minimum Supply Voltage | 2V | |
| Pin Count | 20 | |
| Maximum High Level Output Current | -7.8mA | |
| Maximum Supply Voltage | 6V | |
| Maximum Propagation Delay Time @ CL | 165ns | |
| Maximum Low Level Output Current | 7.8mA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 25.4mm | |
| Width | 6.35 mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Buffer | ||
Logic Family HC | ||
Logic Function CMOS | ||
Number of Channels 8 | ||
IC Type Octal Buffer & Line Driver IC | ||
Input Type Buffered | ||
Output Type 3 State | ||
Mount Type Through Hole | ||
Package Type PDIP | ||
Minimum Supply Voltage 2V | ||
Pin Count 20 | ||
Maximum High Level Output Current -7.8mA | ||
Maximum Supply Voltage 6V | ||
Maximum Propagation Delay Time @ CL 165ns | ||
Maximum Low Level Output Current 7.8mA | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Length 25.4mm | ||
Width 6.35 mm | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
