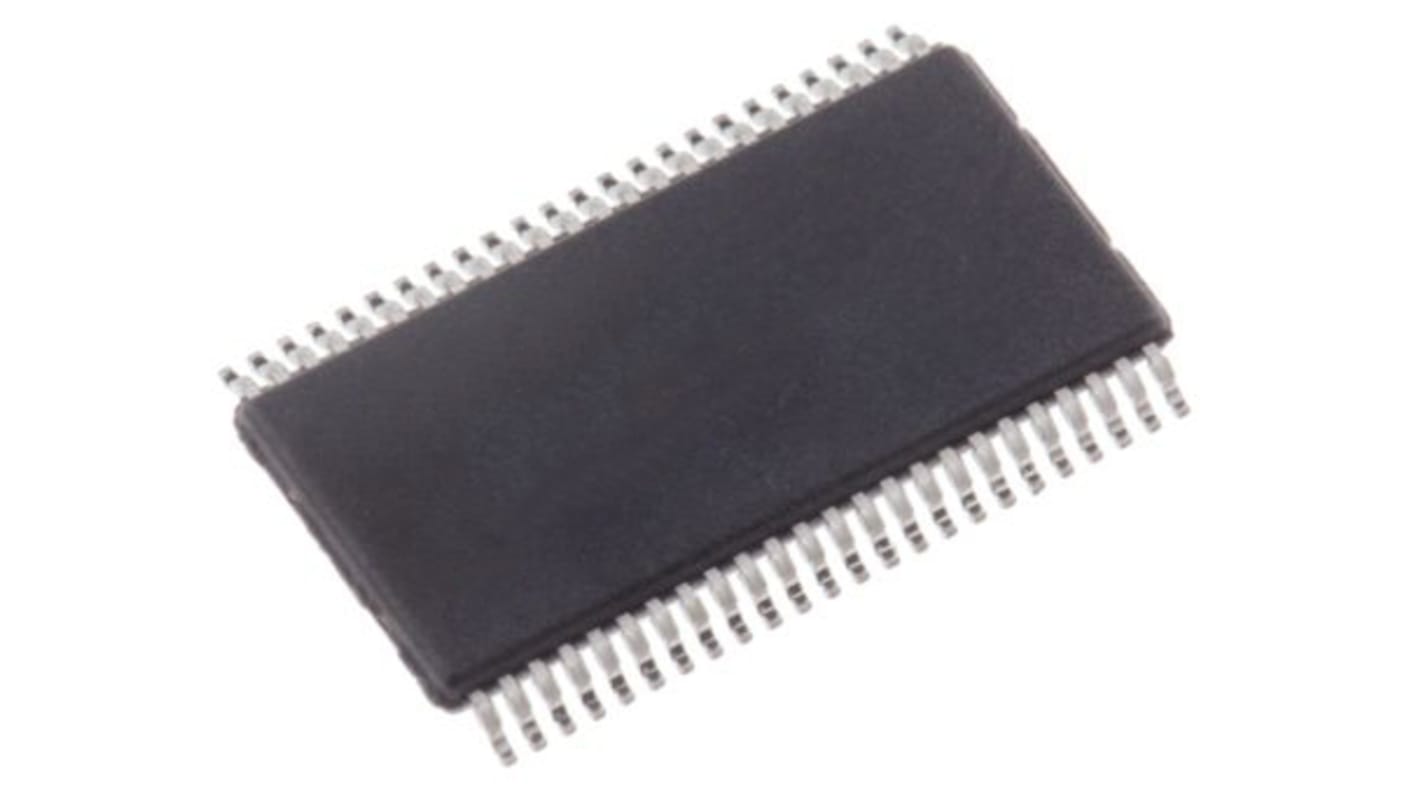

Renesas Electronics 74LVC162244APAG 4-Channel Buffer & Line Driver, 3 State, Non-Inverting, 48-Pin
- RS Stock No.:
- 249-4399
- Mfr. Part No.:
- 74LVC162244APAG
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 pack of 10 units)*
£10.61
(exc. VAT)
£12.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 570 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 20 | £1.061 | £10.61 |
| 30 - 90 | £1.007 | £10.07 |
| 100 - 240 | £0.825 | £8.25 |
| 250 - 490 | £0.771 | £7.71 |
| 500 + | £0.746 | £7.46 |
*price indicative
- RS Stock No.:
- 249-4399
- Mfr. Part No.:
- 74LVC162244APAG
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Logic Family | 74LV | |
| Product Type | Buffer & Line Driver | |
| Logic Function | Buffer | |
| IC Type | Buffer & Line Driver IC | |
| Number of Channels | 4 | |
| Input Type | Single Ended | |
| Output Type | 3 State | |
| Polarity | Non-Inverting | |
| Pin Count | 48 | |
| Minimum Supply Voltage | 2.3V | |
| Maximum Supply Voltage | 3.6V | |
| Maximum High Level Output Current | 12mA | |
| Maximum Low Level Output Current | 12mA | |
| Maximum Propagation Delay Time @ CL | 5.6ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | MIL-STD-883, Method 3015 | |
| Series | IDT74LVC162244A | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Logic Family 74LV | ||
Product Type Buffer & Line Driver | ||
Logic Function Buffer | ||
IC Type Buffer & Line Driver IC | ||
Number of Channels 4 | ||
Input Type Single Ended | ||
Output Type 3 State | ||
Polarity Non-Inverting | ||
Pin Count 48 | ||
Minimum Supply Voltage 2.3V | ||
Maximum Supply Voltage 3.6V | ||
Maximum High Level Output Current 12mA | ||
Maximum Low Level Output Current 12mA | ||
Maximum Propagation Delay Time @ CL 5.6ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals MIL-STD-883, Method 3015 | ||
Series IDT74LVC162244A | ||
Automotive Standard No | ||
The Renesas Electronics 74LVC162244A 16-bit buffer/driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters and can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. All pins of the 74LVC162244A can be driven from either 3.3V or 5V devices which allows the use of the device as a translator in a mixed 3.3V/5V supply system. The 74LVC162244A operates at -40C to +85C.
Typical tSK(o) (Output Skew) < 250ps
ESD > 2000V per MIL-STD-883, Method 3015
> 200V using machine model (C = 200pF, R = 0)
VCC = 3.3V ± 0.3V, Normal Range
VCC = 2.7V to 3.6V, Extended Range
CMOS power levels (0.4 uW typ. static)
All inputs, outputs, and I/O are 5V tolerant
Supports hot insertion
Available in 48 pin SSOP, TSSOP, and TVSOP packages
