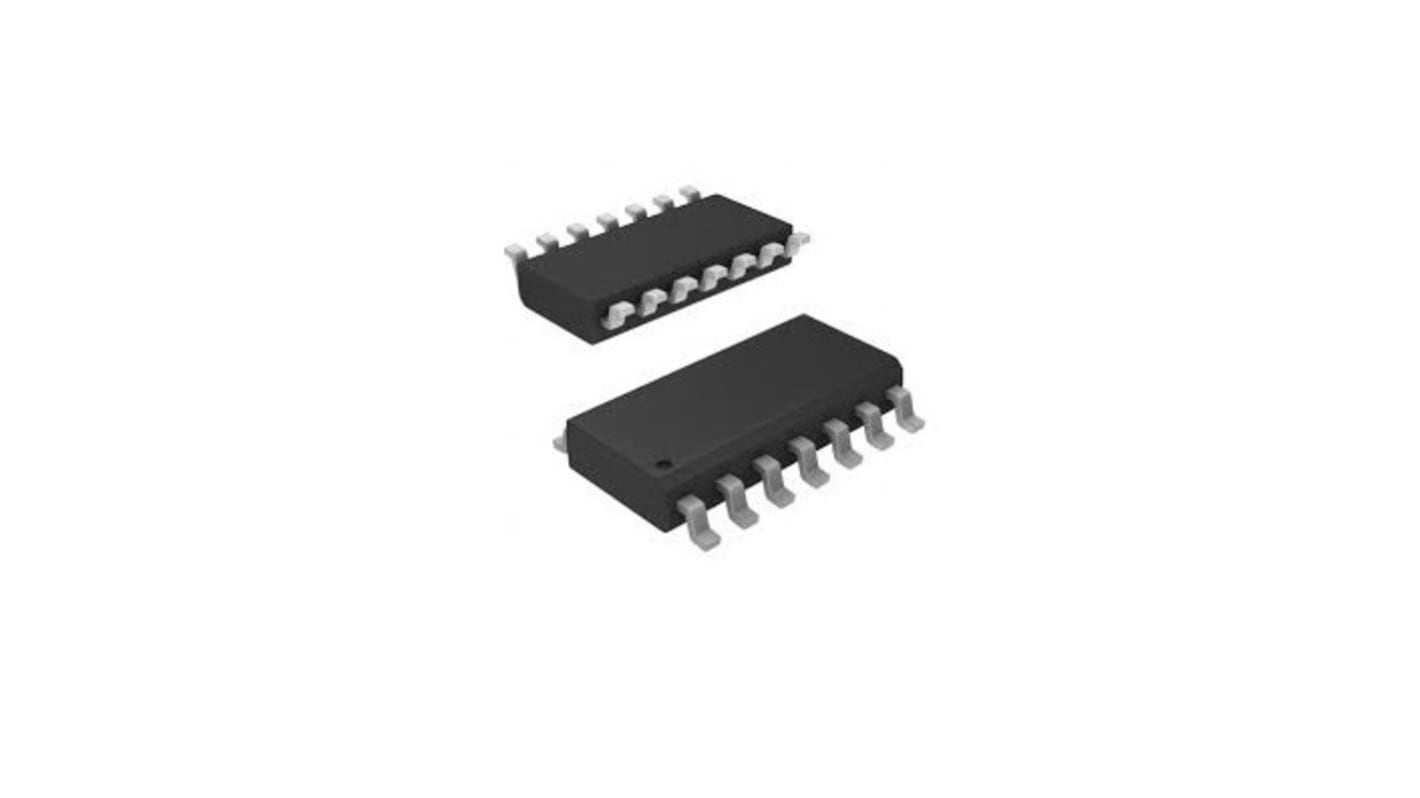

Renesas Electronics ISL8491EIBZ Line Transceiver, 3-State
- RS Stock No.:
- 248-5937
- Mfr. Part No.:
- ISL8491EIBZ
- Brand:
- Renesas Electronics
5 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£1.598
(exc. VAT)
£1.918
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £1.598 | £7.99 |
| 10 - 20 | £1.434 | £7.17 |
| 25 - 95 | £1.364 | £6.82 |
| 100 - 245 | £1.162 | £5.81 |
| 250 + | £1.09 | £5.45 |
*price indicative
- RS Stock No.:
- 248-5937
- Mfr. Part No.:
- ISL8491EIBZ
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
Product Details
The Renesas Electronics ISL8491E devices are ESD protected, BiCMOS, 5V powered, single transceivers that meet both the RS-485 and RS-422 standards for balanced communication. Each driver output and receiver input is protected against ±15kV ESD strikes, without latch-up. Unlike competitive versions, these Intersil devices are specified for 10% tolerance supplies (4.5V to 5.5V).
RS-485 I/O pin ESD protection ±15kV HBM
Class 3 ESD level on all other pins >7kV HBM
High data rates (ISL8490E, ISL8491E) up to 10Mbps
Class 3 ESD level on all other pins >7kV HBM
High data rates (ISL8490E, ISL8491E) up to 10Mbps
Specifications
Attribute | Value |
|---|---|
| Logic Family | BiCMOS |
| Logic Function | Transceiver |
| Number of Channels per Chip | 1 |
| IC Type | Transceiver IC |
| Input Type | Single Ended |
| Output Type | 3 State |
