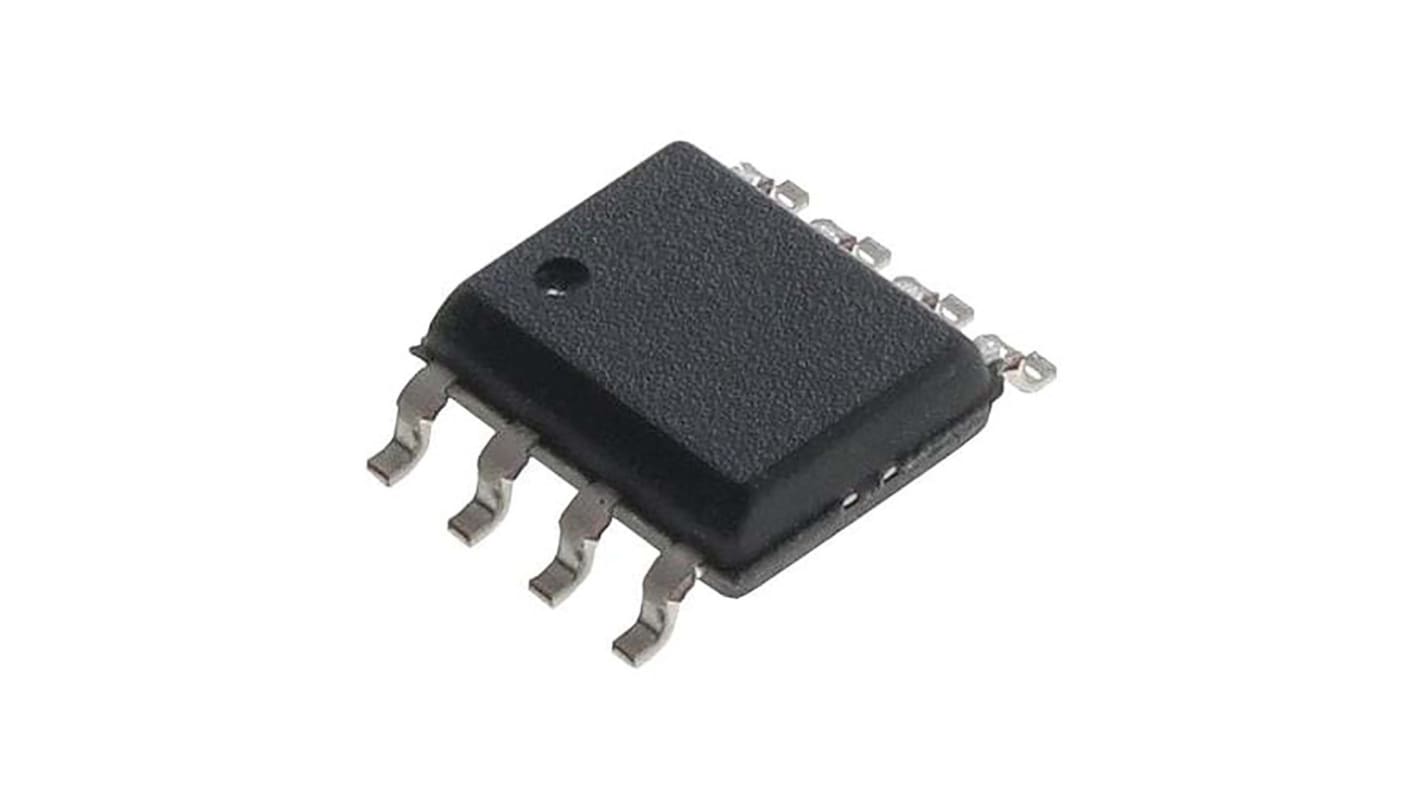

Renesas Electronics ISL32452EIBZ-T7A Line Transceiver, Non-Inverting, 8-Pin SOIC

View all Line Interface ICs

Subtotal (1 reel of 250 units)*

£973.50

(exc. VAT)

£1,168.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
250 +£3.894£973.50

*price indicative

RS Stock No.:
196-8625
Mfr. Part No.:
ISL32452EIBZ-T7A
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Line Transceiver

Logic Family

CMOS

Logic Function

TTL, CMOS

IC Type

Transceiver

Input Type

Differential

Output Type

Non-Inverting

Mount Type

Surface

Package Type

SOIC

Minimum Supply Voltage

0.3V

Pin Count

8

Maximum Supply Voltage

7V

Minimum Operating Temperature

-40°C

Maximum Propagation Delay Time @ CL

45ns

Maximum Operating Temperature

85°C

Length

5mm

Height

1.75mm

Standards/Approvals

No

Width

6.2 mm

Series

ISL32452E

Supply Current

2.1mA

Automotive Standard

No

The Renesas ISL3245 series are 3.3V to 5V powered, fault protected, extended Common-Mode Range (CMR) differential transceivers for balanced communication. These transceivers operate in environments with common-mode voltages up to ±20V (exceeds the RS-485 requirement), making this RS-485 family one of the most robust on the market.

Choice of RS-485 data rates is up to 20Mbps

Low quiescent supply current of 2.1mA

±15kV HBM ESD protection on RS-485 bus pins
