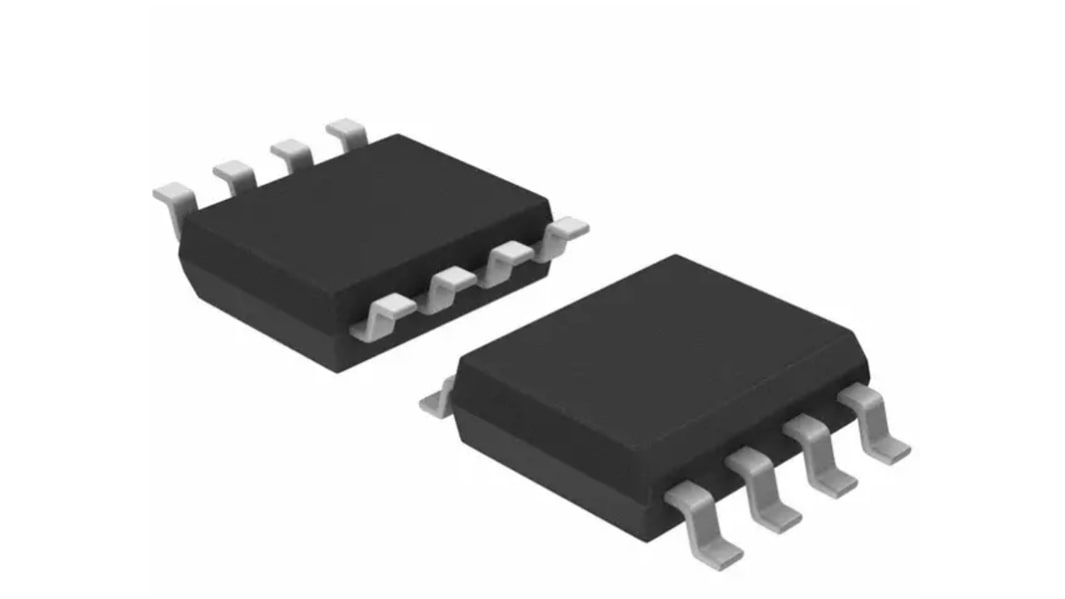

Renesas Electronics ISL8487EIBZ-T Line Transceiver, 3 State, Bipolar, 8-Pin SOIC
- RS Stock No.:
- 196-8081
- Mfr. Part No.:
- ISL8487EIBZ-T
- Brand:
- Renesas Electronics
Subtotal (1 reel of 2500 units)*
£1,287.50
(exc. VAT)
£1,545.00
(inc. VAT)
Add 2500 units to get free delivery
In Stock
- Plus 2,500 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.515 | £1,287.50 |
*price indicative
- RS Stock No.:
- 196-8081
- Mfr. Part No.:
- ISL8487EIBZ-T
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Logic Family | CMOS | |
| Product Type | Line Transceiver | |
| Logic Function | Transceiver | |
| IC Type | Line Transceiver IC | |
| Input Type | Differential | |
| Output Type | 3 State | |
| Polarity | Bipolar | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Minimum Supply Voltage | -7V | |
| Maximum High Level Output Current | -4mA | |
| Maximum Supply Voltage | 12V | |
| Maximum Low Level Output Current | -4mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 30ns | |
| Maximum Operating Temperature | 85°C | |
| Width | 6.2 mm | |
| Standards/Approvals | No | |
| Height | 1.75mm | |
| Length | 5mm | |
| Series | ISL8487E | |
| Automotive Standard | No | |
| Supply Current | 500μA | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Logic Family CMOS | ||
Product Type Line Transceiver | ||
Logic Function Transceiver | ||
IC Type Line Transceiver IC | ||
Input Type Differential | ||
Output Type 3 State | ||
Polarity Bipolar | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 8 | ||
Minimum Supply Voltage -7V | ||
Maximum High Level Output Current -4mA | ||
Maximum Supply Voltage 12V | ||
Maximum Low Level Output Current -4mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 30ns | ||
Maximum Operating Temperature 85°C | ||
Width 6.2 mm | ||
Standards/Approvals No | ||
Height 1.75mm | ||
Length 5mm | ||
Series ISL8487E | ||
Automotive Standard No | ||
Supply Current 500μA | ||
The Renesas Electronics are Bi CMOS,5V, half duplex, 250kbps, slew rate limited, ±15kV ESD, 1/8 unit load, RS-485/RS-422 transceiver. it is ESD protected, fractional unit load and it is single transceiver that meet both the RS-485 and RS-422 standards for balanced communication. Each driver output/receiver input is protected against ESD strike without latch-up. All device present a 1/8 unit load to the RS-485 bus, which allows up to 256 transceiver on the network.
High data rate version
Slew rate limited versions for error free data transmission
Low current shutdown mode
Low quiescent supply current
-7V to +12V common mode input voltage range
Three state Rx and Tx outputs
30ns propagation delay, 5ns skew
Half duplex pinout
Operate from a single +5V supply (10% tolerance)
Current limiting and thermal shutdown for driver overload protection
