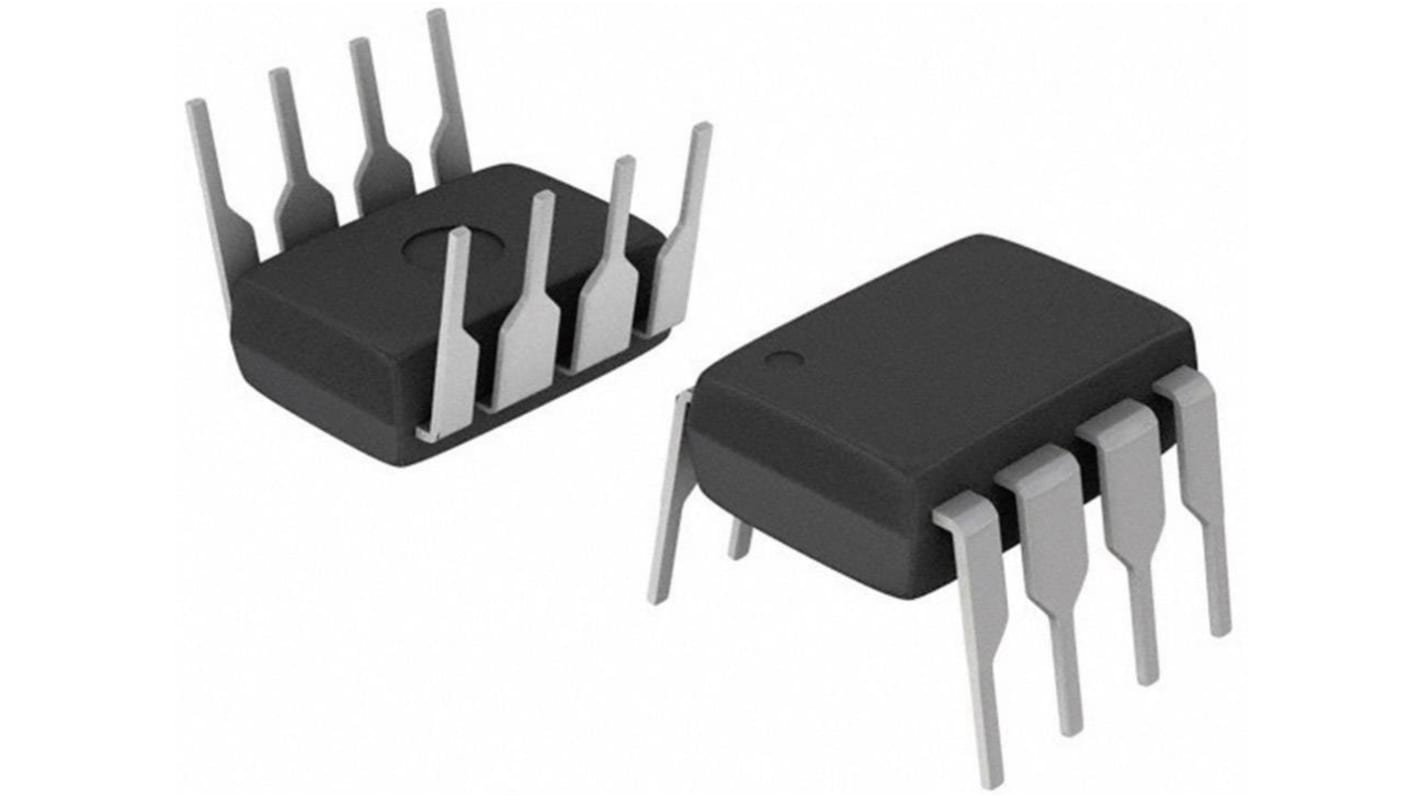

Renesas Electronics Line Transceiver, 3 State, Bipolar, 8-Pin PDIP
- RS Stock No.:
- 196-8052
- Mfr. Part No.:
- ISL81487EIPZ
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal (1 tube of 50 units)*
£30.80
(exc. VAT)
£36.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 100 unit(s) ready to ship
- Plus 3,350 unit(s) shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 200 | £0.616 | £30.80 |
| 250 - 450 | £0.586 | £29.30 |
| 500 + | £0.524 | £26.20 |
*price indicative
- RS Stock No.:
- 196-8052
- Mfr. Part No.:
- ISL81487EIPZ
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Line Transceiver | |
| Logic Family | CMOS | |
| Logic Function | Transceiver | |
| IC Type | Line Transceiver IC | |
| Input Type | Differential | |
| Output Type | 3 State | |
| Polarity | Bipolar | |
| Mount Type | Through Hole | |
| Package Type | PDIP | |
| Minimum Supply Voltage | -7V | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 12V | |
| Maximum Propagation Delay Time @ CL | 30ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 10.16mm | |
| Height | 5.33mm | |
| Width | 6.2 mm | |
| Standards/Approvals | No | |
| Series | ISL81487E | |
| Automotive Standard | No | |
| Supply Current | 500μA | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Line Transceiver | ||
Logic Family CMOS | ||
Logic Function Transceiver | ||
IC Type Line Transceiver IC | ||
Input Type Differential | ||
Output Type 3 State | ||
Polarity Bipolar | ||
Mount Type Through Hole | ||
Package Type PDIP | ||
Minimum Supply Voltage -7V | ||
Pin Count 8 | ||
Maximum Supply Voltage 12V | ||
Maximum Propagation Delay Time @ CL 30ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 10.16mm | ||
Height 5.33mm | ||
Width 6.2 mm | ||
Standards/Approvals No | ||
Series ISL81487E | ||
Automotive Standard No | ||
Supply Current 500μA | ||
The Renesas Electronics are Bi CMOS 3.3V powered, single transceiver that meet both the RS-485 and RS-422 standard for balanced communication. these device have very low bus current and this allows up to 256 transceiver on the network without violating the RS-485 specification ,32 unit load maximum and without using repeater. It configured as full duplex (separate Rx input and Tx output pins) application. The half duplex version multiplex the Rx input and Tx output to allow transceiver with output disable function.
RS-485 I/O pin ESD protection
Fractional unit load allows up to 256 devices on the bus
Specified for 10% tolerance supplies
High data rate version
Slew rate limited versions for error free data transmission
30ns propagation delay
Operate from a single +5V supply (10% tolerance)
Current limiting and thermal shutdown for driver overload
