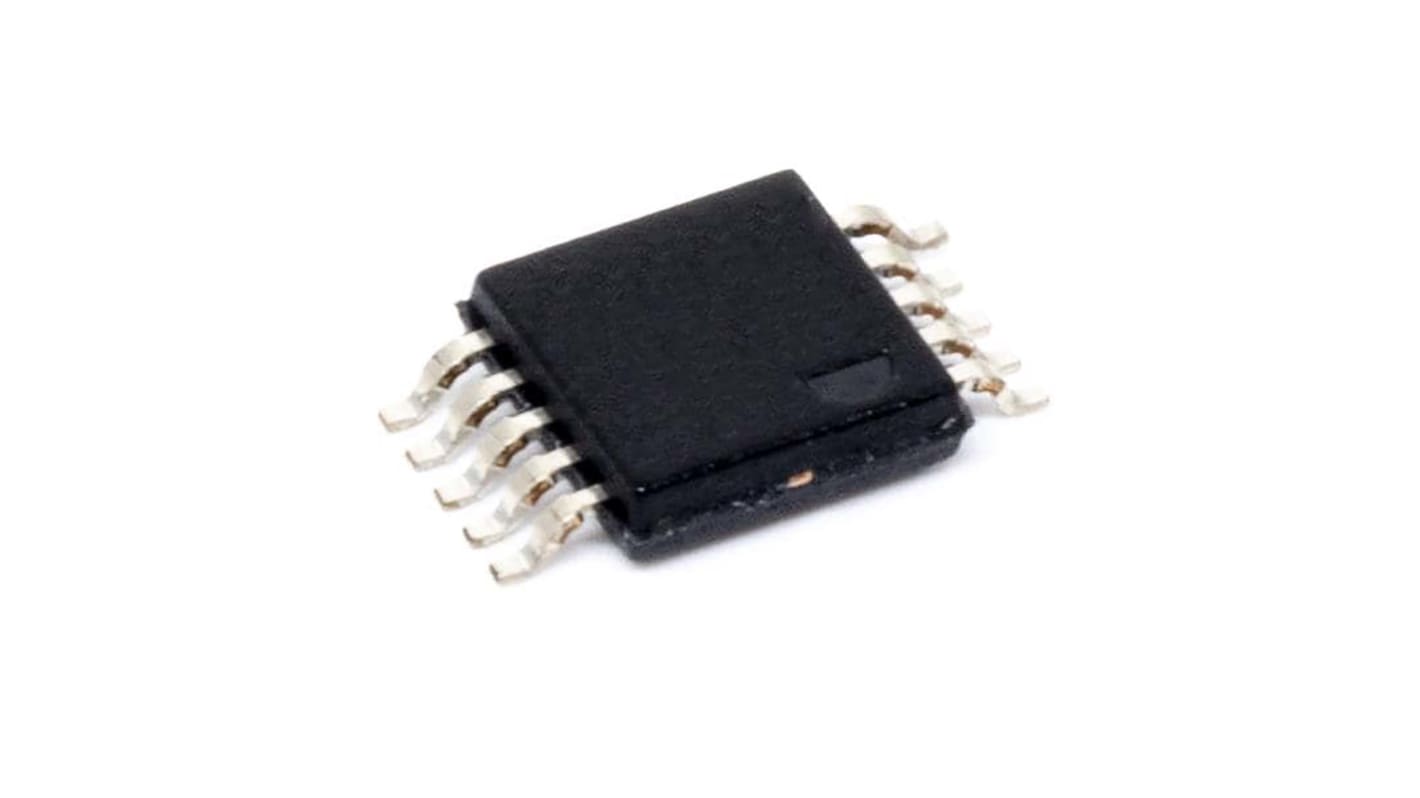

Renesas Electronics ISL3170EIUZ-T Line Transceiver, Differential, 10-Pin MSOP

View all Line Interface ICs
Bulk discount available

Subtotal (1 pack of 5 units)*

£12.82

(exc. VAT)

£15.385

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 45£2.564£12.82
50 - 120£2.464£12.32
125 - 245£2.36£11.80
250 - 495£2.256£11.28
500 +£2.178£10.89

*price indicative

Packaging Options:
RS Stock No.:
196-8001
Mfr. Part No.:
ISL3170EIUZ-T
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Product Type

Line Transceiver

Logic Family

CMOS

Logic Function

Bus Transceiver

IC Type

Line Transceiver IC

Input Type

Differential

Output Type

Differential

Mount Type

Surface

Package Type

MSOP

Minimum Supply Voltage

3V

Pin Count

10

Maximum High Level Output Current

4mA

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-40°C

Maximum Low Level Output Current

4mA

Maximum Propagation Delay Time @ CL

120ns

Maximum Operating Temperature

85°C

Height

1.75mm

Standards/Approvals

RoHS, IEC61000

Length

3.05mm

Width

6 mm

Series

ISL317xE

Supply Current

510μA

Automotive Standard

No

COO (Country of Origin):
MY
The Renesas ISL317xE series is a RS-485 and RS-422 standard transceivers with supply voltage Vcc Ranges from 3 to 3.6 volts for better communication. This series is configured for full duplex (separate Receiver input and Transmitter output pins) applications.

High data rates which can range up to 20Mbps

Quiescent supply current is very low (800μA ) maximum

Low shutdown supply current (10nA)

-7V to +12V common-mode input/output voltage range

Thermal shutdown and current limiting for driver overload protection

Tiny MSOP packages which consume 50% less board space

This series are full safe (open, short, terminated/floating) receivers
