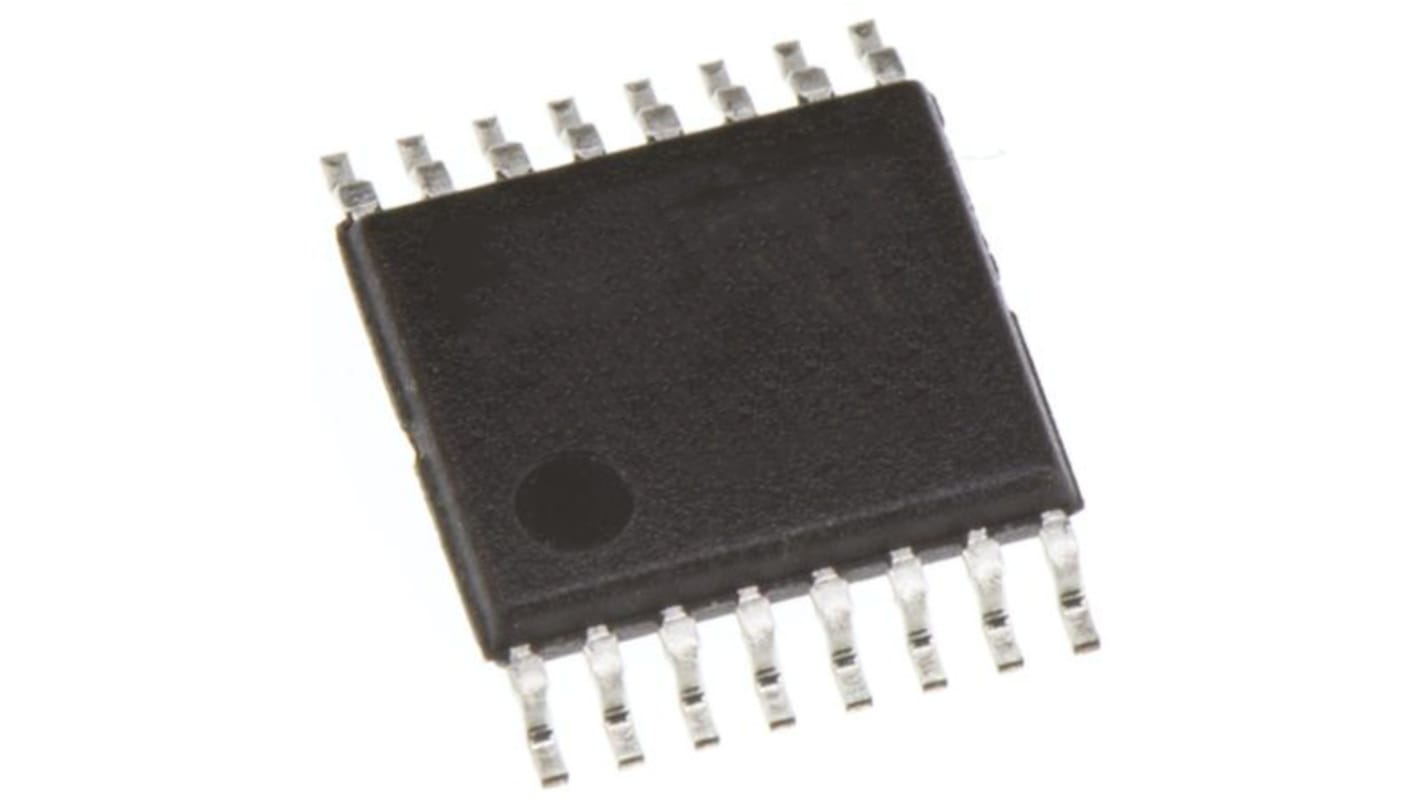

Maxim Integrated MAX202EEUE+ Line Transceiver, CMOS, Inverting, 16-Pin TSSOP

View all Line Interface ICs
Bulk discount available

Subtotal (1 pack of 2 units)*

£13.30

(exc. VAT)

£15.96

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 38 unit(s), ready to ship
Units
Per unit
Per Pack*
2 - 8£6.65£13.30
10 - 24£6.04£12.08
26 - 98£5.765£11.53
100 +£5.73£11.46

*price indicative

Packaging Options:
RS Stock No.:
191-4807
Mfr. Part No.:
MAX202EEUE+
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Product Type

Line Transceiver

Logic Family

CMOS/TTL

Logic Function

Converter, Driver, Line Driver, Receiver

IC Type

Line Transceiver IC

Input Type

Single Ended

Output Type

CMOS

Polarity

Inverting

Mount Type

Surface

Package Type

TSSOP

Minimum Supply Voltage

-0.3V

Pin Count

16

Maximum Supply Voltage

5.5V

Maximum High Level Output Current

60mA

Minimum Operating Temperature

-40°C

Maximum Propagation Delay Time @ CL

2μs

Maximum Low Level Output Current

10mA

Maximum Operating Temperature

85°C

Series

MAX202

Height

1.1mm

Length

5.1mm

Standards/Approvals

No

Width

6.55 mm

Automotive Standard

No

Supply Current

15mA

COO (Country of Origin):
PH
The MAX202E-MAX213E, MAX232E, and MAX241E are a family of transceivers with high ±15kV ESD HBM protection and integrated charge pump circuitry for single +5V supply operation.

The MAX211E/MAX213E/MAX241E are available in 28-pin SO and SSOP packages. The MAX202E/MAX232E come in 16-pin TSSOP, narrow SO, wide SO, and DIP packages. The MAX203E comes in a 20-pin DIP/SO package, and needs no external charge-pump capacitors. The MAX205E comes in a 24-pin wide DIP package, and also eliminates external charge-pump capacitors.

Saves Board Space

Integrated High ±15kV HBM ESD Protection

Integrated Charge Pump Circuitry

Eliminates the Need for a Bipolar ±12V Supply

Enables Single Supply Operation From +5V Supply

Integrated 0.1μF Capacitors (MAX203E, MAX205E)

24 pin SSOP Package Saves up to 40% Versus SO Package

Saves Power for Reduced Power Requirements

1μA Shutdown Mode

15μA Shutdown Mode for MAX213E

Applications/Uses

Battery-Powered Equipment

Handheld Equipment

Portable Diagnostics Equipment
