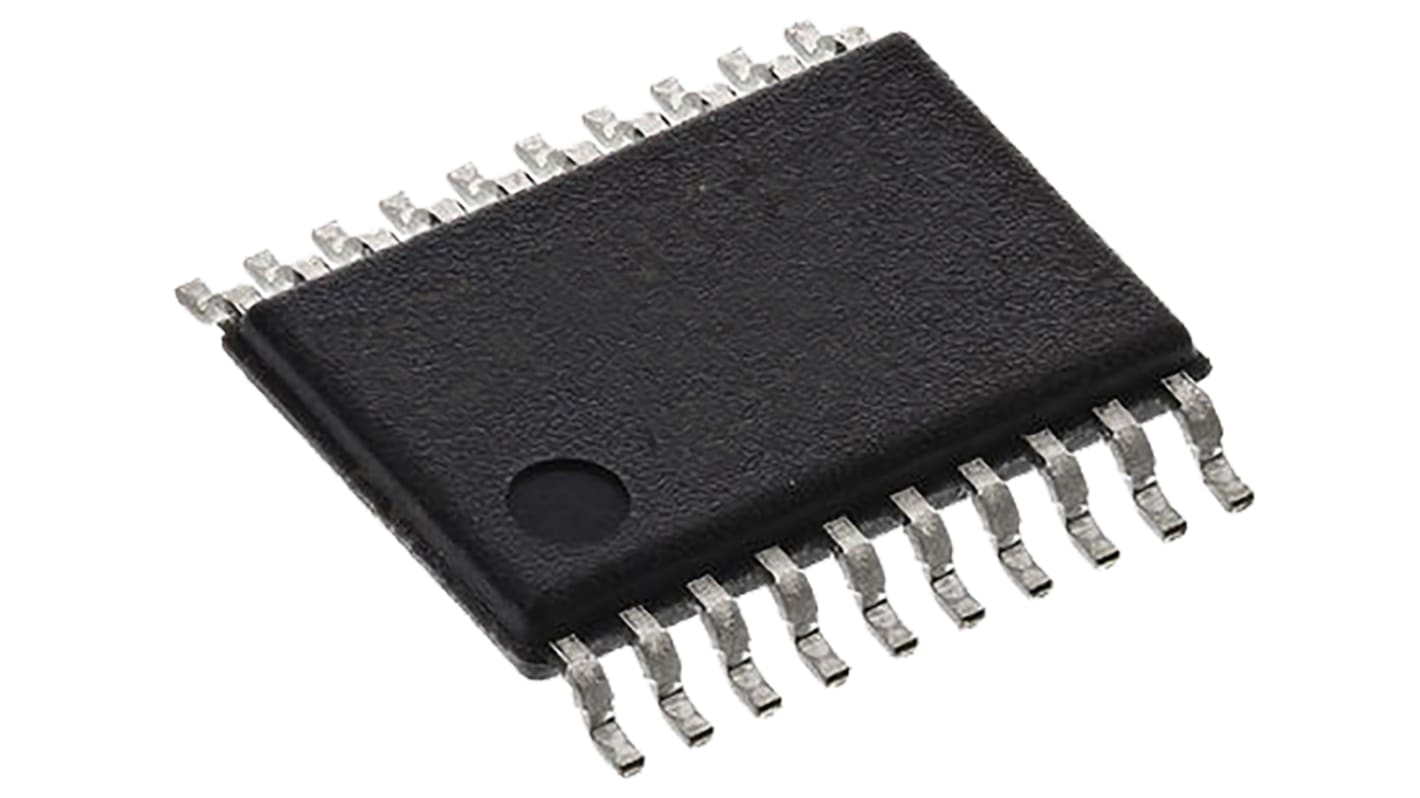

Maxim Integrated MAX3223EEUP+ Line Transceiver, BiCMOS, Inverting, 20-Pin TSSOP

RS Stock No.:: 190-1015
Mfr. Part No.:: MAX3223EEUP+
Brand:: Maxim Integrated

Maxim Integrated MAX3223EEUP+ Line Transceiver, BiCMOS, Inverting, 20-Pin TSSOP

Bulk discount available

Subtotal (1 pack of 2 units)*

£16.96

(exc. VAT)

£20.36

(inc. VAT)

FREE delivery for orders over £50.00

Last RS stock

Final 192 unit(s), ready to ship

Units	Per unit	Per Pack*
2 - 18	£8.48	£16.96
20 - 48	£8.14	£16.28
50 - 98	£7.80	£15.60
100 - 198	£7.46	£14.92
200 +	£7.21	£14.42

*price indicative

RS Stock No.:: 190-1015
Mfr. Part No.:: MAX3223EEUP+
Brand:: Maxim Integrated

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Maxim Integrated
	Product Type	Line Transceiver
	Logic Family	CMOS/TTL
	Logic Function	Line Driver, Driver, Converter
	IC Type	Line Transceiver IC
	Input Type	Single Ended
	Output Type	BiCMOS
	Polarity	Inverting
	Mount Type	Surface
	Package Type	TSSOP
	Minimum Supply Voltage	3V
	Pin Count	20
	Maximum High Level Output Current	60mA
	Maximum Supply Voltage	5.5V
	Maximum Low Level Output Current	-60mA
	Maximum Propagation Delay Time @ CL	0.15μs
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Height	1.1mm
	Length	6.9mm
	Series	MAX3223E
	Standards/Approvals	No
	Width	6.55 mm
	Automotive Standard	No
	Supply Current	10μA

	Select all
	Brand Maxim Integrated
	Product Type Line Transceiver
	Logic Family CMOS/TTL
	Logic Function Line Driver, Driver, Converter
	IC Type Line Transceiver IC
	Input Type Single Ended
	Output Type BiCMOS
	Polarity Inverting
	Mount Type Surface
	Package Type TSSOP
	Minimum Supply Voltage 3V
	Pin Count 20
	Maximum High Level Output Current 60mA
	Maximum Supply Voltage 5.5V
	Maximum Low Level Output Current -60mA
	Maximum Propagation Delay Time @ CL 0.15μs
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Height 1.1mm
	Length 6.9mm
	Series MAX3223E
	Standards/Approvals No
	Width 6.55 mm
	Automotive Standard No
	Supply Current 10μA

COO (Country of Origin):: TH

RS-232 Dual Transmitters/Receivers, Maxim Integrated

The Maxim family of dual RS232 line drivers and receivers are intended for all EIA/TIA-232E, V.24 and V.28 communications interface. Maxim’s RS232 dual transmitter/receiver will allow applications such as interface translation, modem, laptop as well as RS232 battery-powered systems due to their low-power shutdown mode. The multichannel transceiver MAX233, MAX235 have no external components therefore are ideal where space is crucial.

Multichannel RS232 Driver/Receiver (RS232 Transceiver)

Data Rates range from 120 kbit/s to 1 Mbit/s

Low-power shutdown mode reduces power dissipation

Low-Voltage

Some RS232 Transceivers may incorporate 0.1uF External Capacitors

Integrated ESD Applications

Applications

• High Speed Modems

• Battery Powered Equipment

• Notebook, Subnotebook, and Palmtop Computers

• Printers

• Handheld Equipment

• Peripherals

RS-232 Line Drivers and Receivers
