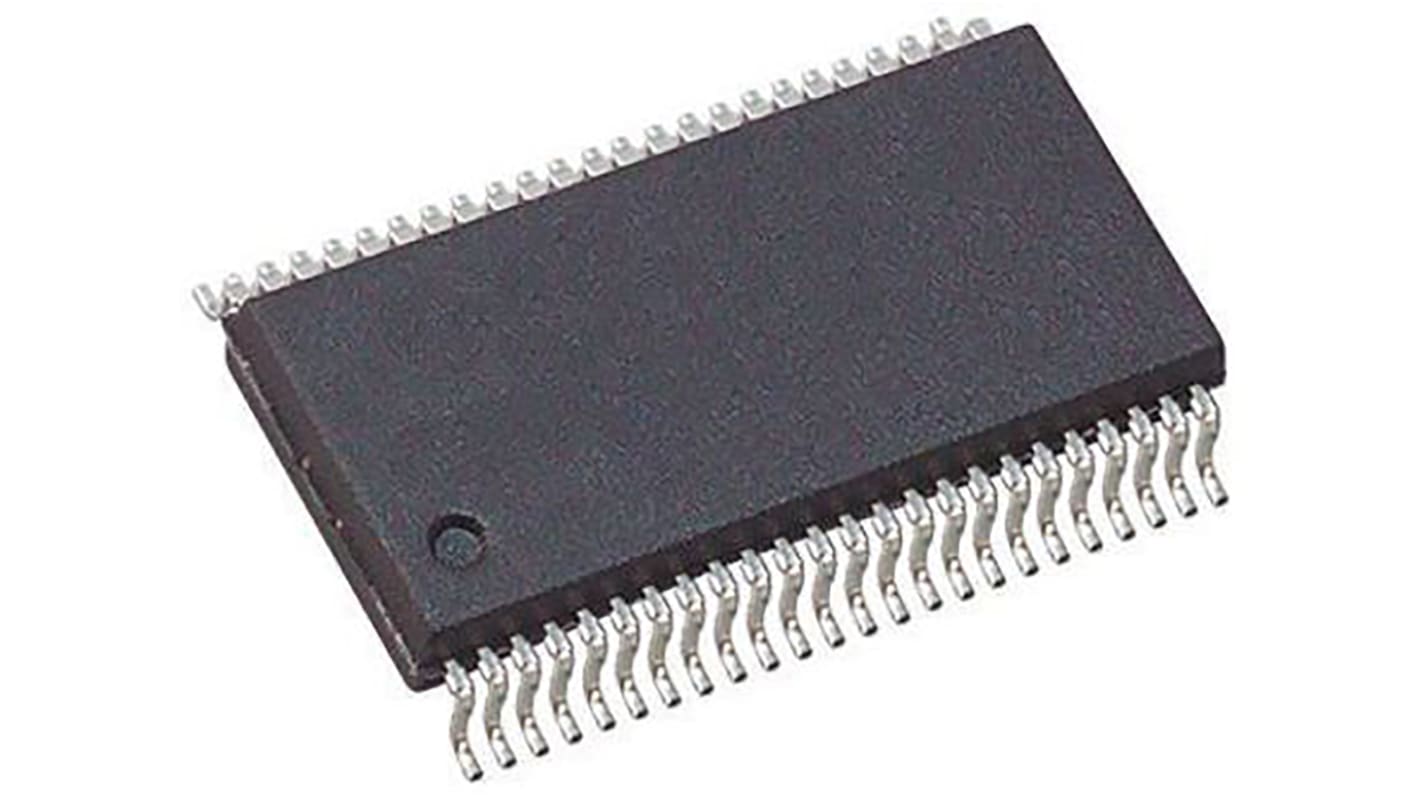

Texas Instruments SN74AHCT16244DL 16-Channel Buffer & Line Driver, 3-State, 48-Pin SSOP

RS Stock No.:: 162-7317
Mfr. Part No.:: SN74AHCT16244DL
Brand:: Texas Instruments

Texas Instruments SN74AHCT16244DL 16-Channel Buffer & Line Driver, 3-State, 48-Pin SSOP

Available to back order for despatch when stock is available

Price Each (In a Tube of 25)

£1.508

(exc. VAT)

£1.81

(inc. VAT)

Units	Per unit	Per Tube*
25 +	£1.508	£37.70

*price indicative

RS Stock No.:: 162-7317
Mfr. Part No.:: SN74AHCT16244DL
Brand:: Texas Instruments

Datasheet

Attribute	Value
Logic Family	AHCT
Logic Function	Buffer, Line Driver
Number of Channels per Chip	16
Input Type	Single Ended
Output Type	3 State
Polarity	Non-Inverting
Mounting Type	Surface Mount
Package Type	SSOP
Pin Count	48
Maximum High Level Output Current	-8mA
Maximum Low Level Output Current	8mA
Maximum Propagation Delay Time @ Maximum CL	9.5 ns @ 5 V
Dimensions	15.88 x 7.49 x 2.59mm
Minimum Operating Supply Voltage	4.5 V
Maximum Operating Supply Voltage	5.5 V
Propagation Delay Test Condition	50pF

Texas Instruments SN74AHCT16244DL 16-Channel Buffer & Line Driver, 3-State, 48-Pin SSOP

74AHCT Family, Texas Instruments
