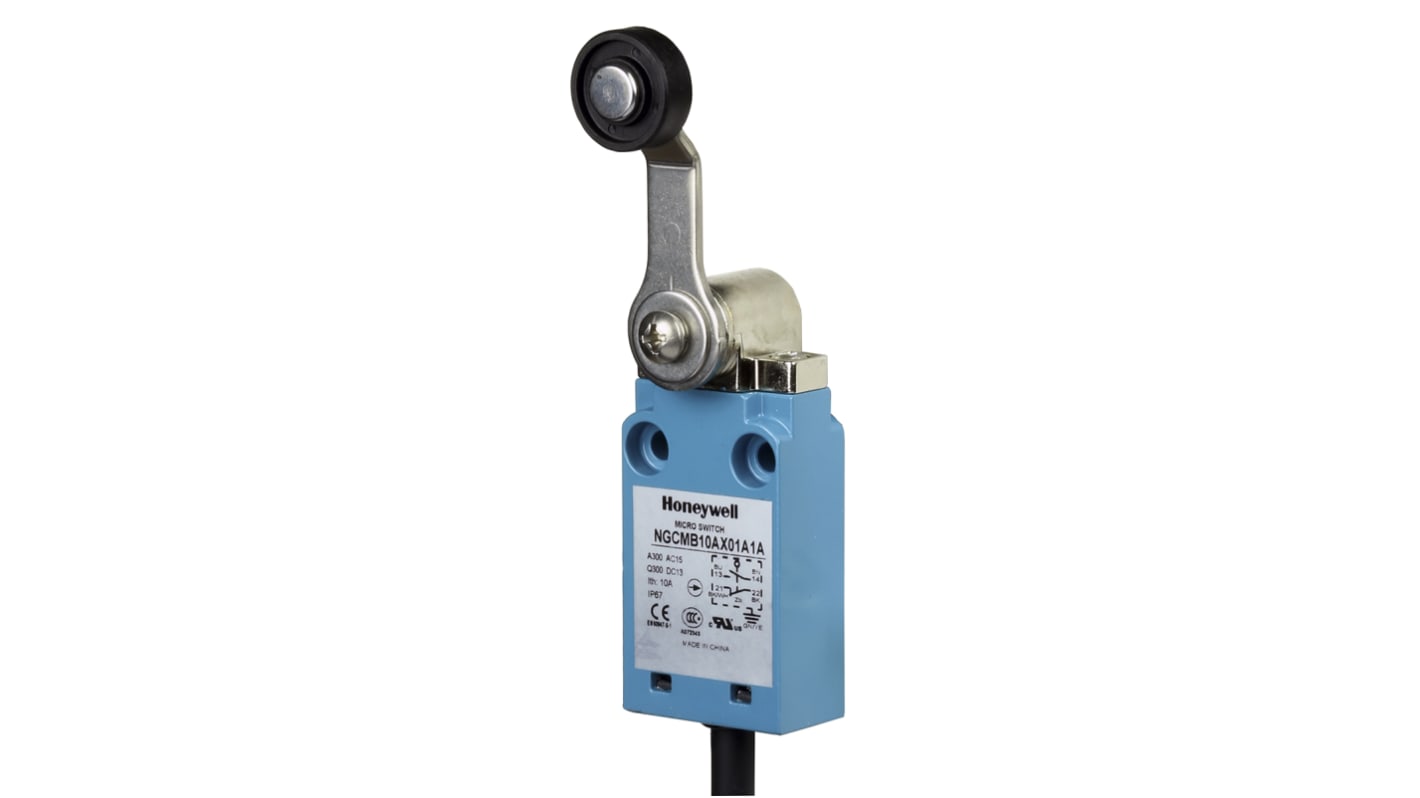

Honeywell NGC Series Roller Lever Limit Switch, 2NO/2NC, IP67, DPDT, Metal Housing, 10mA Max

View all Limit Switches

Subtotal (1 unit)*

£121.50

(exc. VAT)

£145.80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 6 unit(s) shipping from 10 March 2026
  • Plus 10 unit(s) shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£121.50

*price indicative

RS Stock No.:
894-3374
Mfr. Part No.:
NGCMB50AX32A1A
Brand:
Honeywell
Find similar products by selecting one or more attributes.
Select all

Brand

Honeywell

Actuator Type

Roller Lever

Pole and Throw Configuration

DPDT

Normal State Configuration

2NO/2NC

IP Rating

IP67

Maximum Current

10mA

Housing Material

Metal

Maximum DC Voltage

0.03V

Connection Type

Cable

Series

NGC

Action Type

Positive Break, Snap Action

Length

30mm

Depth

106.3mm

Minimum Operating Temperature

+25°C

Maximum Operating Temperature

+70°C

Width

32.5mm

Mechanical Life

5000000Cycles

Mounting Orientation

Panel

COO (Country of Origin):
CN

Honeywell NGC Series Micro Switch Compact Limit Switches


Honeywell’s MICRO SWITCH™ Compact Limit Switches, NGC Series, are a configurable platform of medium-duty switches that allow the customer to choose SPDT (single pole, double throw) or DPDT (double pole, double throw) circuitry while maintaining the same housing and mounting footprint throughout the NGC Series. The NGC Series can be configured more than 380,000 ways carries global approvals. The compact series limit switches are sealed to IP67 for potential use in indoor and outdoor applications. The Compact switches offer durable packaging allows for use in many harsh indoor or outdoor applications, providing performance confidence .The switches also allow design engineers to standardize on a single footprint while meeting a variety of electrical requirements.

With two times the vibration (10 g) and shock (50 g) ratings of comparable competitive devices, the NGC Series can be implemented in the harshest of environmental conditions, providing enhanced reliability and repeatability

Broader current capacity (10 A) than comparable devices allows for potential use in a wider set of applications, making platform standardization an easier task.

SPDT or DPDT configurable circuitry

Snap-action, positive-break contacts

Silver alloy and gold plated contact options

UL, CE, cUL, and CCC approvals

NEMA 1, 4, 12, 13; IP67 sealing

Metal and plastic housing options

Cable and connector terminations

Variety of heads and actuator levers

POTENTIAL INDUSTRIAL APPLICATIONS

Boom position detection

Elevators and escalators

Machine tools

Mobile light towers

Packaging equipment

Rail doors

Scissor lifts
