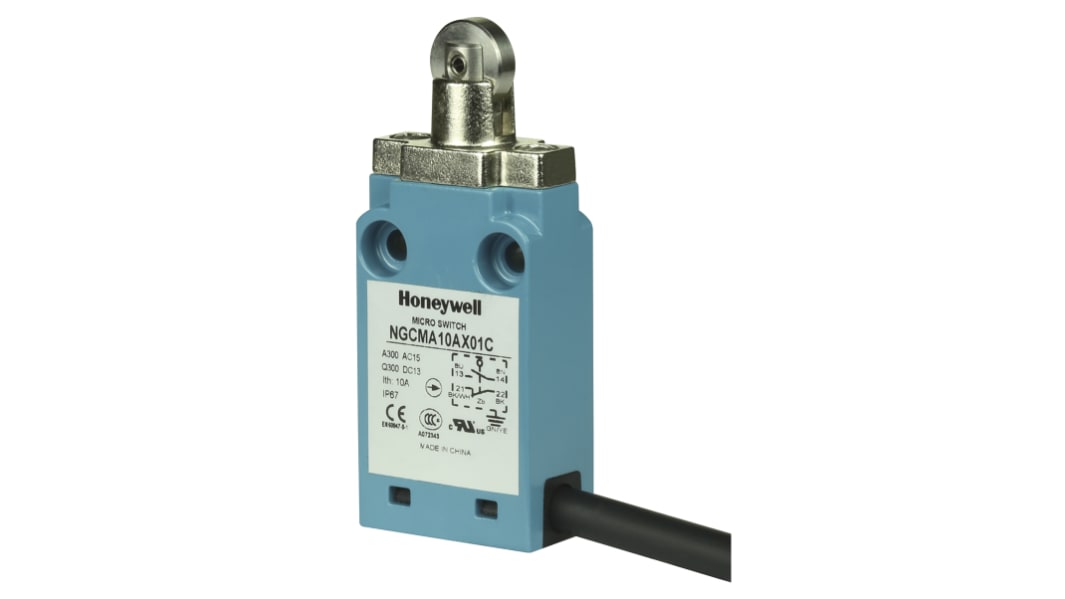

Honeywell NGC Series Roller Plunger Limit Switch, IP67, Metal Housing, 400V ac, 10A
- RS Stock No.:
- 894-3306
- Distrelec Article No.:
- 301-38-818
- Mfr. Part No.:
- NGCMA10AX01C
- Brand:
- Honeywell
Subtotal (1 unit)*
£61.46
(exc. VAT)
£73.75
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £61.46 |
*price indicative
- RS Stock No.:
- 894-3306
- Distrelec Article No.:
- 301-38-818
- Mfr. Part No.:
- NGCMA10AX01C
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Limit Switch | |
| Actuator Type | Roller Plunger | |
| IP Rating | IP67 | |
| Housing Material | Metal | |
| Contact Type | Positive Break | |
| Terminal Type | Cable | |
| Switching Current | 10A | |
| Series | NGC | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 400V ac | |
| Maximum Operating Temperature | 75°C | |
| Length | 30mm | |
| Depth | 71.1mm | |
| Width | 16.7mm | |
| Standards/Approvals | CCC, CE, IEC 60529 | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 5000000Cycles | |
| Operating Force | 11N | |
| Mounting Orientation | Panel | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Limit Switch | ||
Actuator Type Roller Plunger | ||
IP Rating IP67 | ||
Housing Material Metal | ||
Contact Type Positive Break | ||
Terminal Type Cable | ||
Switching Current 10A | ||
Series NGC | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 400V ac | ||
Maximum Operating Temperature 75°C | ||
Length 30mm | ||
Depth 71.1mm | ||
Width 16.7mm | ||
Standards/Approvals CCC, CE, IEC 60529 | ||
Hazardous Area Certification NO | ||
Mechanical Life 5000000Cycles | ||
Operating Force 11N | ||
Mounting Orientation Panel | ||
Honeywell NGC Series Limit Switch, IP67, 10A Switching Current - NGCMA10AX01C
This limit switch is a robust mechanical position sensor designed for industrial control and safety circuits. It operates via a roller plunger actuator and provides positive-break contact action for clear circuit interruption. Housed in a metal enclosure with ingress protection, it is suitable for panel-mounted installations where precise switching under varied temperatures is required.
Features and Benefits:
• Positive-break contact ensures clear circuit separation when actuated
• Roller plunger actuator delivers repeatable mechanical actuation behaviour
• 10 A switching supports moderate current AC loads up to 400V AC
• IP67 ingress protection enables use in wet or dust-prone environments
• 11 N operating force gives predictable actuation effort for installers
• Mechanical endurance of 5,000,000 cycles minimises replacement frequency
• Roller plunger actuator delivers repeatable mechanical actuation behaviour
• 10 A switching supports moderate current AC loads up to 400V AC
• IP67 ingress protection enables use in wet or dust-prone environments
• 11 N operating force gives predictable actuation effort for installers
• Mechanical endurance of 5,000,000 cycles minimises replacement frequency
Applications
• Suitable for limit detection on automated conveyor systems
• Ideal for end-of-travel sensing in machine tools
• Used with control panels requiring panel-mount switching devices
• Can be used for position feedback in packaging machinery
• Suitable for industrial safety interlocks in enclosures
• Ideal for end-of-travel sensing in machine tools
• Used with control panels requiring panel-mount switching devices
• Can be used for position feedback in packaging machinery
• Suitable for industrial safety interlocks in enclosures
What Terminal style does it use for wiring?
It is supplied with a cable-style Terminal to allow direct conduit or cable connection rather than screw Terminals.
What mounting orientation is required for installation?
The unit is intended for panel mounting to ensure correct actuator alignment and secure attachment.
What temperature range can it reliably operate within?
It is specified to function between -25 °C and 75 °C to accommodate typical industrial ambient conditions.
Which standards and certifications apply to its construction?
The switch complies with IEC 60529 ingress standards and carries CCC and CE approvals for relevant markets.
