Honeywell NGC Series Roller Plunger Limit Switch, NO/NC, IP67, SPDT, Plastic Housing, 240V ac Max, 6A Max

Honeywell’s MICRO SWITCH™ Compact Limit Switches, NGC Series, are a configurable platform of medium-duty switches that allow the customer to choose SPDT (single pole, double throw) or DPDT (double pole, double throw) circuitry while maintaining the same housing and mounting footprint throughout the NGC Series. The NGC Series can be configured more than 380,000 ways carries global approvals. The compact series limit switches are sealed to IP67 for potential use in indoor and outdoor applications. The Compact switches offer durable packaging allows for use in many harsh indoor or outdoor applications, providing performance confidence .The switches also allow design engineers to standardize on a single footprint while meeting a variety of electrical requirements.
With two times the vibration (10 g) and shock (50 g) ratings of comparable competitive devices, the NGC Series can be implemented in the harshest of environmental conditions, providing enhanced reliability and repeatability
Broader current capacity (10 A) than comparable devices allows for potential use in a wider set of applications, making platform standardization an easier task.

SPDT or DPDT configurable circuitry
Snap-action, positive-break contacts
Silver alloy and gold plated contact options
UL, CE, cUL, and CCC approvals
NEMA 1, 4, 12, 13; IP67 sealing
Metal and plastic housing options
Cable and connector terminations
Variety of heads and actuator levers

POTENTIAL INDUSTRIAL APPLICATIONS
Boom position detection
Elevators and escalators
Machine tools
Mobile light towers
Packaging equipment
Rail doors
Scissor lifts

Choose this limit switch from Honeywell to detect the presence of objects in your industrial processes. When the roller plunger actuator makes contact with an object, it opens or closes the circuit, helping to ensure the safe operation of machinery. A long mechanical service life of at least five million cycles means this unit will last a long time.

• Low operating force of 11N for sensitive switching
• Broad operating temperature range between +25°C and +70°C for use in harsh environments
• IP67 rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes

• Escalators
• Lighting towers
• Packaging industry

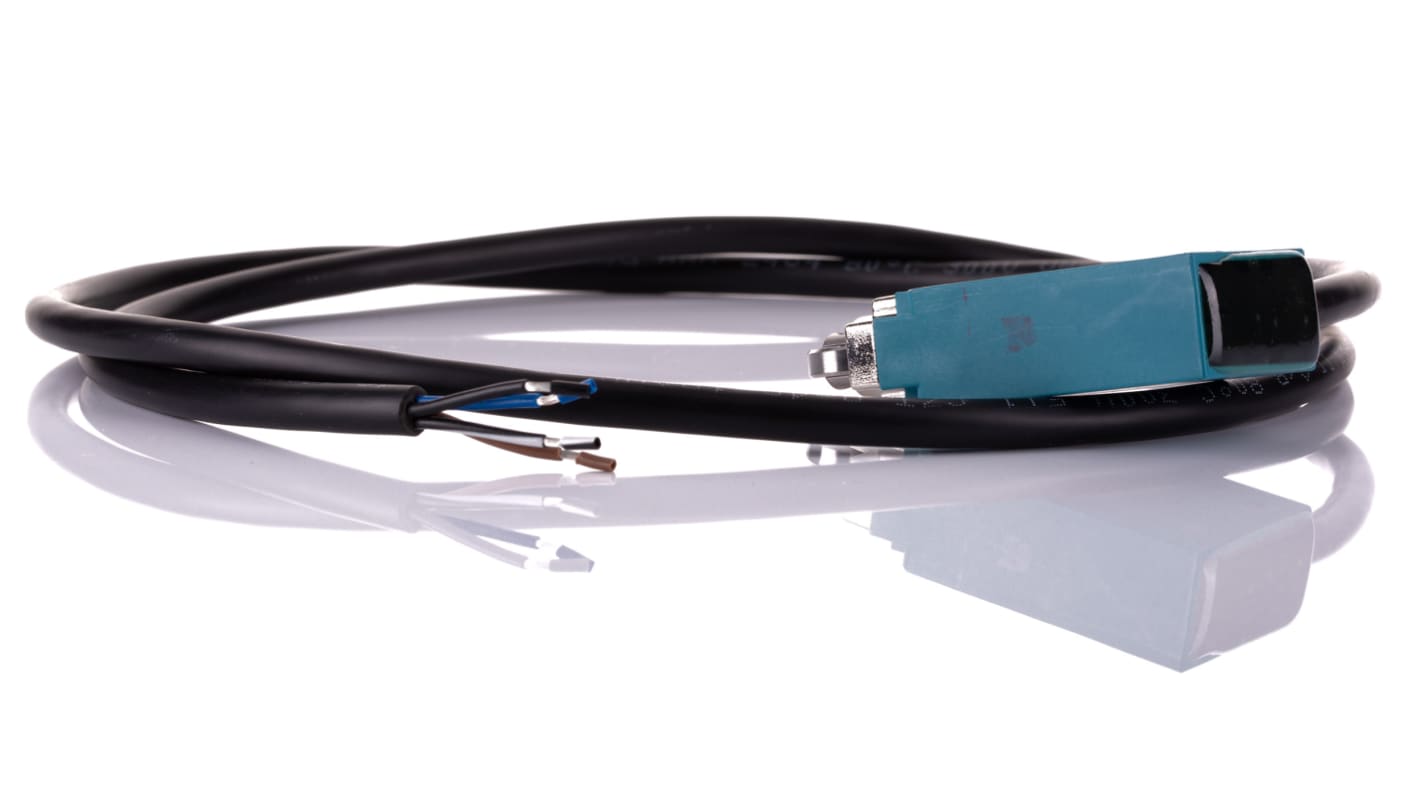

This switch comes with a cable that lets you easily connect it to your control unit. The cable is 1m long for a flexible connection.
