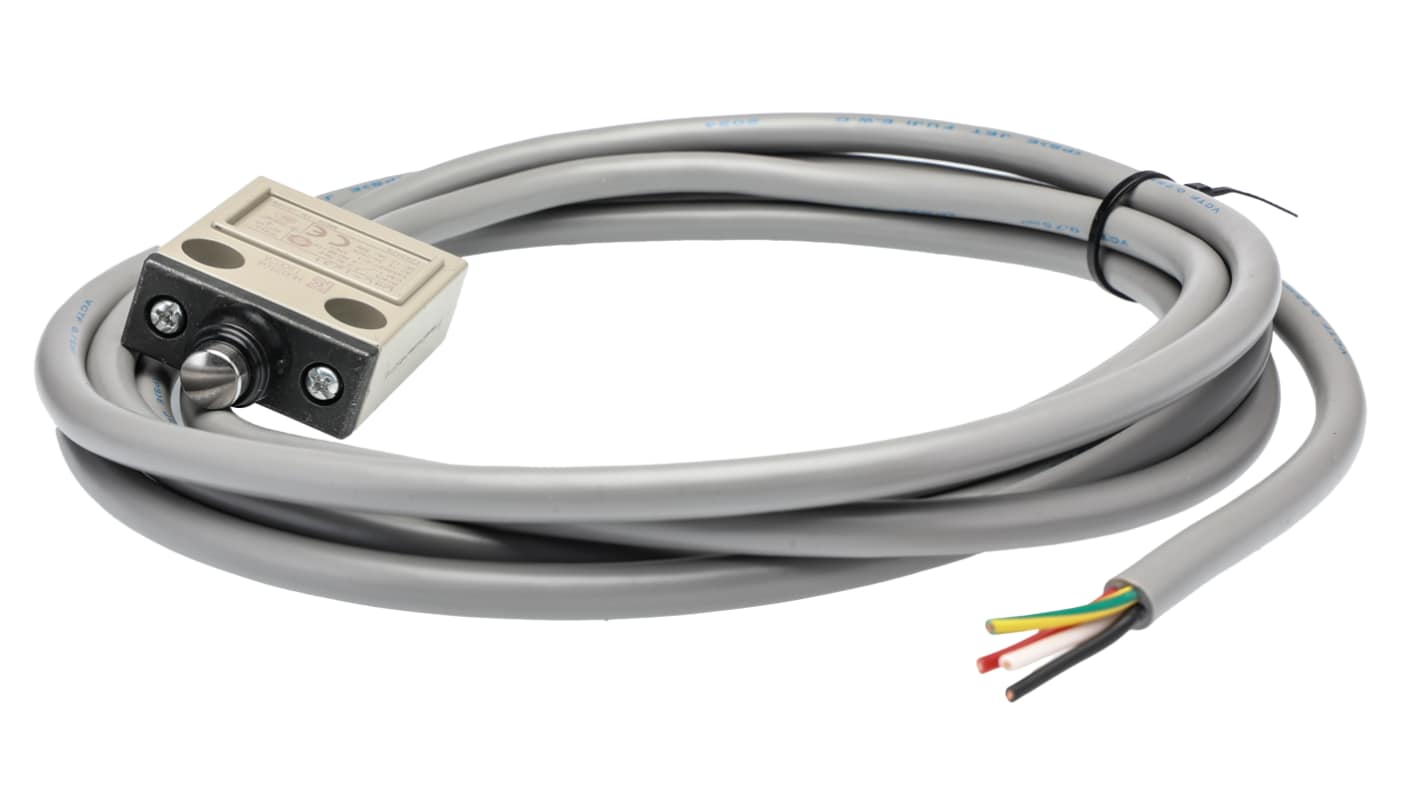

Omron D4C Series Plunger Limit Switch, NO/NC, IP67, SPDT, 250V ac Max, 250 V ac 5A Max
- RS Stock No.:
- 827-9172
- Mfr. Part No.:
- D4C-1231
- Brand:
- Omron
Subtotal (1 unit)*
£77.75
(exc. VAT)
£93.30
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 10 left, ready to ship
- Final 6 unit(s) shipping from 04 November 2025
Units | Per unit |
---|---|
1 + | £77.75 |
*price indicative
- RS Stock No.:
- 827-9172
- Mfr. Part No.:
- D4C-1231
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Actuator Type | Plunger | |
Pole and Throw Configuration | SPDT | |
Normal State Configuration | NO/NC | |
IP Rating | IP67 | |
Maximum Current | 250 V ac 5 A, 30 V dc 4A | |
Maximum AC Voltage | 250V | |
Maximum DC Voltage | 250V | |
Connection Type | Cable | |
Series | D4C | |
Action Type | Snap Action | |
Length | 49mm | |
Width | 40mm | |
Maximum Operating Temperature | +70°C | |
Depth | 16mm | |
Minimum Operating Temperature | -10°C | |
Mounting Orientation | Front | |
Mechanical Life | 10000000Operations | |
Select all | ||
---|---|---|
Brand Omron | ||
Actuator Type Plunger | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
IP Rating IP67 | ||
Maximum Current 250 V ac 5 A, 30 V dc 4A | ||
Maximum AC Voltage 250V | ||
Maximum DC Voltage 250V | ||
Connection Type Cable | ||
Series D4C | ||
Action Type Snap Action | ||
Length 49mm | ||
Width 40mm | ||
Maximum Operating Temperature +70°C | ||
Depth 16mm | ||
Minimum Operating Temperature -10°C | ||
Mounting Orientation Front | ||
Mechanical Life 10000000Operations | ||
RoHS Status: Exempt
Omron D4C Series Limit Switch, 49mm Length, SPDT Pole and Throw Configuration - D4C-1231
This limit switch is a critical component in automation and control systems. Designed with a compact metal housing, it measures 49mm in length and 40mm in width. It offers robust features suitable for various industrial applications, ensuring reliable operation in demanding environments.
Features & Benefits
• SPDT configuration supports various circuit designs
• High durability with a mechanical life of 10 million operations
• Snap action mechanism ensures quick response times
• M12 connection type allows for quick and secure installation
• High durability with a mechanical life of 10 million operations
• Snap action mechanism ensures quick response times
• M12 connection type allows for quick and secure installation
Applications
• Used in machinery where space is limited
• Ideal for outdoor equipment exposed to harsh conditions
• Perfect for use in cold environments down to -10°C
• Suitable for requiring quick detection and feedback
• Effective in systems where oil resistance is necessary
• Ideal for outdoor equipment exposed to harsh conditions
• Perfect for use in cold environments down to -10°C
• Suitable for requiring quick detection and feedback
• Effective in systems where oil resistance is necessary
What makes the switch suitable for harsh environments?
The robust metal housing and IP67 rating ensure it can withstand dust and moisture exposure, making it ideal for various industrial applications.
How do the plunger and action type enhance performance?
The plunger actuation, combined with snap action functionality, provides a swift response to mechanical movements, enhancing operational efficiency in automated systems.
What current ratings does this switch support?
It can handle a maximum of 5A for AC and 4A for DC applications, making it versatile for multiple electrical setups.
Can this switch be used in cold environments?
Yes, it operates effectively between -10°C and +70°C, which makes it suitable for cold storage or outdoor applications.
How does the M12 connection type benefit installation?
The M12 connector allows for easy and reliable connections, reducing installation time and ensuring stable electrical performance.
