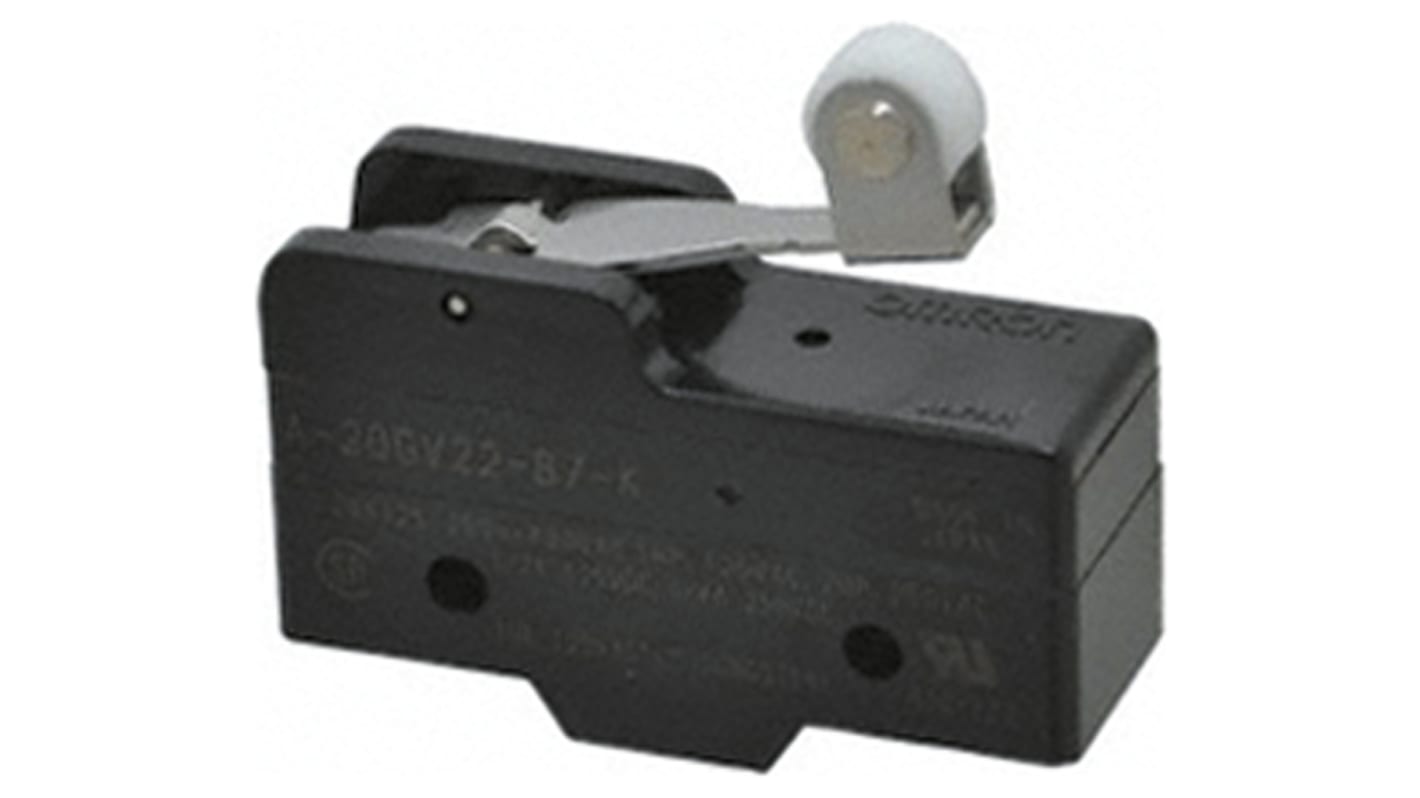

Omron A Series Roller Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max
- RS Stock No.:
- 827-9083
- Mfr. Part No.:
- A-20GV22-B7-K
- Brand:
- Omron
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 827-9083
- Mfr. Part No.:
- A-20GV22-B7-K
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Actuator Type | Roller Lever | |
Pole and Throw Configuration | SPDT | |
Normal State Configuration | NO/NC | |
IP Rating | IP00 | |
Maximum Current | 20A | |
Maximum AC Voltage | 500V | |
Maximum DC Voltage | 250V | |
Connection Type | Screw | |
Series | A | |
Action Type | Snap Action | |
Length | 49.2mm | |
Standards Met | CSA | |
Minimum Operating Temperature | -25°C | |
Depth | 29.4mm | |
Maximum Operating Temperature | +85°C | |
Width | 17.45mm | |
Mechanical Life | 1000000Operations | |
Operating Force | 3.92 → 6.13 N | |
Mounting Orientation | Panel, Side | |
Select all | ||
---|---|---|
Brand Omron | ||
Actuator Type Roller Lever | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
IP Rating IP00 | ||
Maximum Current 20A | ||
Maximum AC Voltage 500V | ||
Maximum DC Voltage 250V | ||
Connection Type Screw | ||
Series A | ||
Action Type Snap Action | ||
Length 49.2mm | ||
Standards Met CSA | ||
Minimum Operating Temperature -25°C | ||
Depth 29.4mm | ||
Maximum Operating Temperature +85°C | ||
Width 17.45mm | ||
Mechanical Life 1000000Operations | ||
Operating Force 3.92 → 6.13 N | ||
Mounting Orientation Panel, Side | ||
Omron Series A Limit Switch, NO/NC Normal State Configuration, 20A Maximum Current - A-20GV22-B7-K
This limit switch plays a crucial role in various automation applications. Equipped with a roller lever actuator, it ensures reliable switching for machinery and electronic systems. Its snap action mechanism enhances responsiveness in operational settings, making it a valuable tool for professionals in electrical and mechanical fields.
Features & Benefits
• High current handling capacity of 20A for effective performance
• Mechanical durability with a lifespan of 1,000,000 operations
• Available in both normally open and normally closed configurations for flexibility
• Compact design allows for easy panel or side mounting
• Mechanical durability with a lifespan of 1,000,000 operations
• Available in both normally open and normally closed configurations for flexibility
• Compact design allows for easy panel or side mounting
Applications
• Utilised in automated assembly lines for control tasks
• Employed in conveyor systems for position sensing
• Suitable for safety interlocks in industrial machinery
• Applicable in home automation systems for switch control
• Used in robotics for precise movement detection
• Employed in conveyor systems for position sensing
• Suitable for safety interlocks in industrial machinery
• Applicable in home automation systems for switch control
• Used in robotics for precise movement detection
What is the recommended mounting orientation for this component?
It can be mounted on a panel or side, allowing for versatile installation.
What types of connections does it support?
The switch supports screw-type connections for secure wiring.
How does this limit switch perform under varying temperature conditions?
It functions effectively between -25°C and +85°C, ensuring dependability in various environments.
