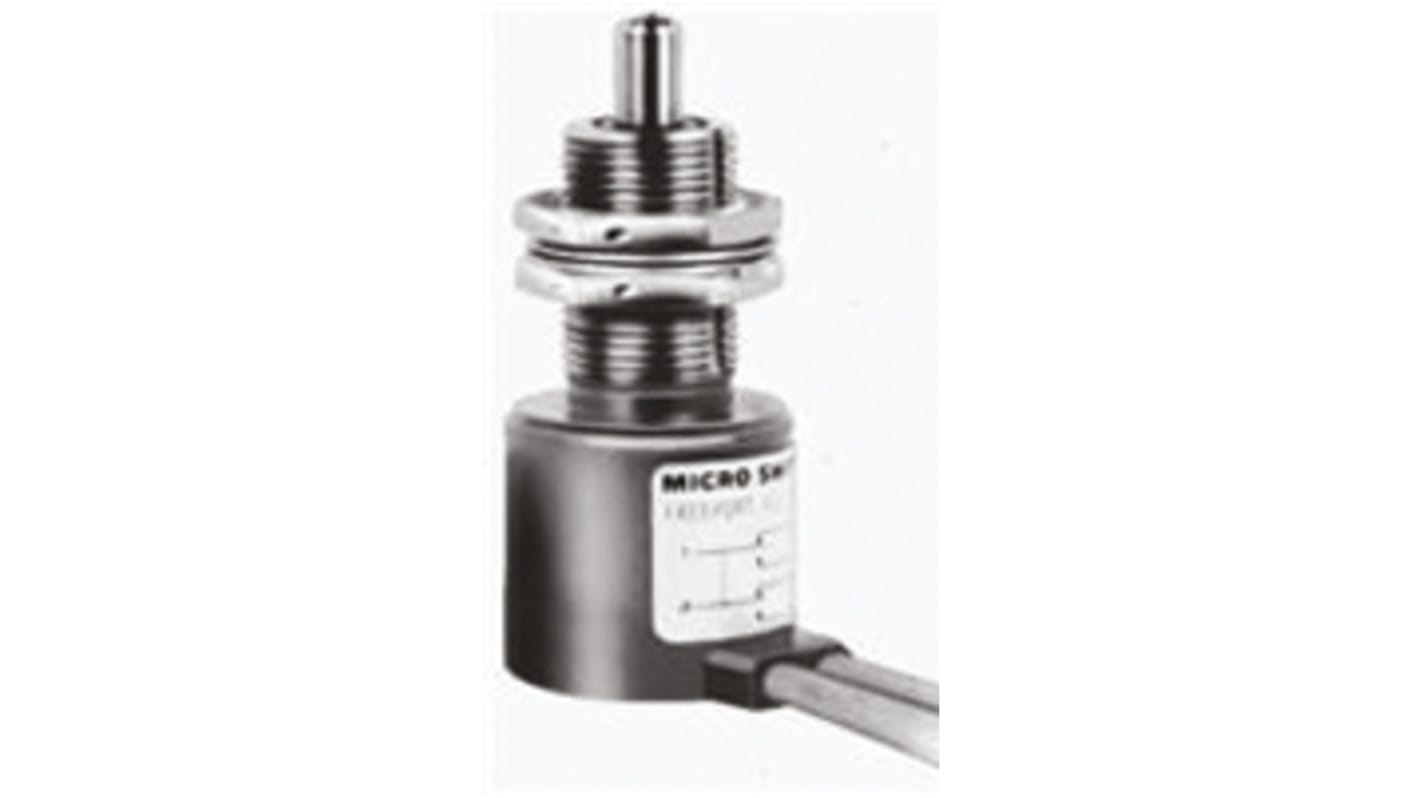

Honeywell Plunger Limit Switch, NO/NC, SPDT, Stainless Steel Housing, 4A Max
- RS Stock No.:
- 821-0202
- Mfr. Part No.:
- 1CH28-12
- Brand:
- Honeywell
Subtotal (1 unit)*
£630.61
(exc. VAT)
£756.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £630.61 |
*price indicative
- RS Stock No.:
- 821-0202
- Mfr. Part No.:
- 1CH28-12
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Honeywell | |
Actuator Type | Plunger | |
Pole and Throw Configuration | SPDT | |
Normal State Configuration | NO/NC | |
Maximum Current | 4A | |
Housing Material | Stainless Steel | |
Maximum DC Voltage | 28V | |
Connection Type | Cable | |
Depth | 2.595in | |
Width | 1in | |
Mounting Orientation | Side | |
Select all | ||
---|---|---|
Brand Honeywell | ||
Actuator Type Plunger | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
Maximum Current 4A | ||
Housing Material Stainless Steel | ||
Maximum DC Voltage 28V | ||
Connection Type Cable | ||
Depth 2.595in | ||
Width 1in | ||
Mounting Orientation Side | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
CH Series Environmentally Sealed Limit Switch
The CH Series are an environmentally sealed unit offering high accuracy and reliability, even in extreme conditions. They are designed to be small and lightweight yet still offer high performance.
Honeywell Plunger Limit Switch, SPDT, 28V DC - CH Series - 1CH28-12
Automate industrial machine processes with this plunger limit switch from Honeywell. The switch works by opening or closing a circuit when an object presses down on its plunger. Its SPDT (single pole double throw) configuration means it can control two circuits at once, helping to increase efficiency in your work environment. Thanks to its current rating of 4A, this limit switch is suitable for use in low-current applications. This switch has compact dimensions of 65.913 (height) x 25.4mm (diameter), so it will add minimal bulk to your equipment.
Features & Benefits
• Operating voltage of 28V DC for use in low-voltage applications
• Steel plunger and enclosure material for resistance to corrosion and impact
• Cable connection for a secure link between the switch and your appliance
• Steel plunger and enclosure material for resistance to corrosion and impact
• Cable connection for a secure link between the switch and your appliance
Applications
• Marine and offshore industry
• Conveyor and elevator systems
• Military specialised vehicles
• Conveyor and elevator systems
• Military specialised vehicles
What's overtravel?
Overtravel is the extra distance that a switch's plunger can be pushed without harming the switch. It allows the switch to break the circuit and shut down a machine when it detects excessive force to prevent damage to equipment.
Approvals
UL, CSA.
