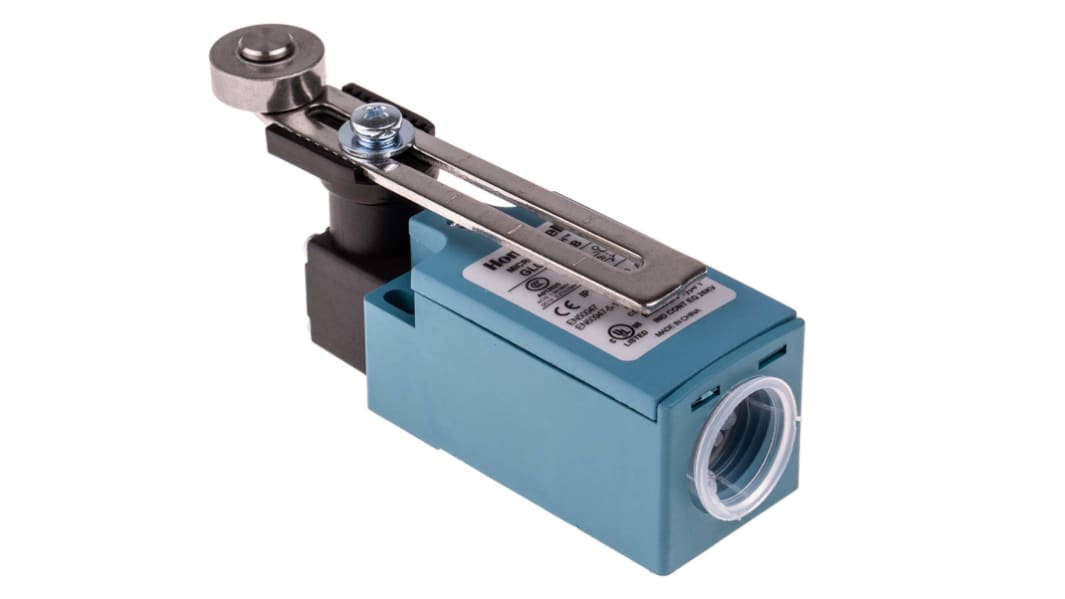

Honeywell Technologies GLL Series Adjustable Roller Lever Limit Switch, 1 NC/1 NO, IP66, Thermoplastic Housing, 300V ac,
- RS Stock No.:
- 808-7648
- Distrelec Article No.:
- 301-38-769
- Mfr. Part No.:
- GLLA01A2B
- Brand:
- Honeywell Technologies
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£40.47
(exc. VAT)
£48.56
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 154 unit(s) shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £40.47 |
| 5 - 9 | £38.89 |
| 10 + | £36.91 |
*price indicative
- RS Stock No.:
- 808-7648
- Distrelec Article No.:
- 301-38-769
- Mfr. Part No.:
- GLLA01A2B
- Brand:
- Honeywell Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell Technologies | |
| Product Type | Limit Switch | |
| Actuator Type | Adjustable Roller Lever | |
| IP Rating | IP66 | |
| Contact Configuration | 1 NC/1 NO | |
| Housing Material | Glass Fibre Reinforced Thermoplastic | |
| Contact Type | Snap Action | |
| Switching Current | 10A | |
| Series | GLL | |
| Switching AC Voltage | 300V ac | |
| Minimum Operating Temperature | -10°C | |
| Switching DC Voltage | 250V dc | |
| Maximum Operating Temperature | 80°C | |
| Length | 30.5mm | |
| Depth | 31mm | |
| Standards/Approvals | RoHS, CCC, CE, cUL, EN, IEC | |
| Width | 62mm | |
| Hazardous Area Certification | No | |
| Mounting Orientation | Vertical | |
| Mechanical Life | 5000000Operations | |
| Conduit Entry | 0.5 to 14 NPT | |
| Operating Force | 9.8Ncm | |
| Select all | ||
|---|---|---|
Brand Honeywell Technologies | ||
Product Type Limit Switch | ||
Actuator Type Adjustable Roller Lever | ||
IP Rating IP66 | ||
Contact Configuration 1 NC/1 NO | ||
Housing Material Glass Fibre Reinforced Thermoplastic | ||
Contact Type Snap Action | ||
Switching Current 10A | ||
Series GLL | ||
Switching AC Voltage 300V ac | ||
Minimum Operating Temperature -10°C | ||
Switching DC Voltage 250V dc | ||
Maximum Operating Temperature 80°C | ||
Length 30.5mm | ||
Depth 31mm | ||
Standards/Approvals RoHS, CCC, CE, cUL, EN, IEC | ||
Width 62mm | ||
Hazardous Area Certification No | ||
Mounting Orientation Vertical | ||
Mechanical Life 5000000Operations | ||
Conduit Entry 0.5 to 14 NPT | ||
Operating Force 9.8Ncm | ||
- COO (Country of Origin):
- CN
Honeywell GLL Series Limit Switch, IP66, 10A Switching Current - GLLA01A2B
This limit switch is a mechanical position-sensing device designed for industrial control and automation applications where positive contact changeover is required. It uses a roller lever actuator to detect movement and provide snap-action switching suitable for control circuits. The enclosure is MADE from a reinforced thermoplastic material and is intended for installation in a vertical orientation where protected, reliable switching is needed.
Features and Benefits:
• Snap-action contacts handle 10A switching current for efficient control
• Rated for up to 300V AC switching to accommodate AC control circuits
• Operates between -10°C and 80°C for varied ambient conditions
• Mechanical life of 5,000,000 operations reduces maintenance frequency
• IP66 enclosure rating protects against dust and powerful water jets
• Conduit entry accepts 0.5 to 14 NPT for flexible wiring options
• Rated for up to 300V AC switching to accommodate AC control circuits
• Operates between -10°C and 80°C for varied ambient conditions
• Mechanical life of 5,000,000 operations reduces maintenance frequency
• IP66 enclosure rating protects against dust and powerful water jets
• Conduit entry accepts 0.5 to 14 NPT for flexible wiring options
Applications
• Suitable for conveyor end-of-travel detection in manufacturing lines
• Ideal for machine tool limit detection in metalworking plants
• Used with actuator-driven valves for position monitoring in process systems
• Can be used for safety interlocks on access panels and guards
• Suitable for control panels requiring robust limit switching in harsh environments
• Ideal for machine tool limit detection in metalworking plants
• Used with actuator-driven valves for position monitoring in process systems
• Can be used for safety interlocks on access panels and guards
• Suitable for control panels requiring robust limit switching in harsh environments
What type of contact arrangement does it provide?
It provides one normally closed and one normally open contact in a snap-action format for reliable changeover signalling.
How should it be mounted for correct operation?
It is intended for vertical mounting to ensure the actuator lever and internal mechanisms perform within designed parameters.
What materials contribute to its environmental resistance?
The housing is constructed from glass fibre-reinforced thermoplastic which contributes to impact resistance and environmental protection.
Which standards and approvals does it meet for industrial use?
It complies with multiple international standards and approvals including RoHS, CE and cUL to align with common industrial acceptance.
