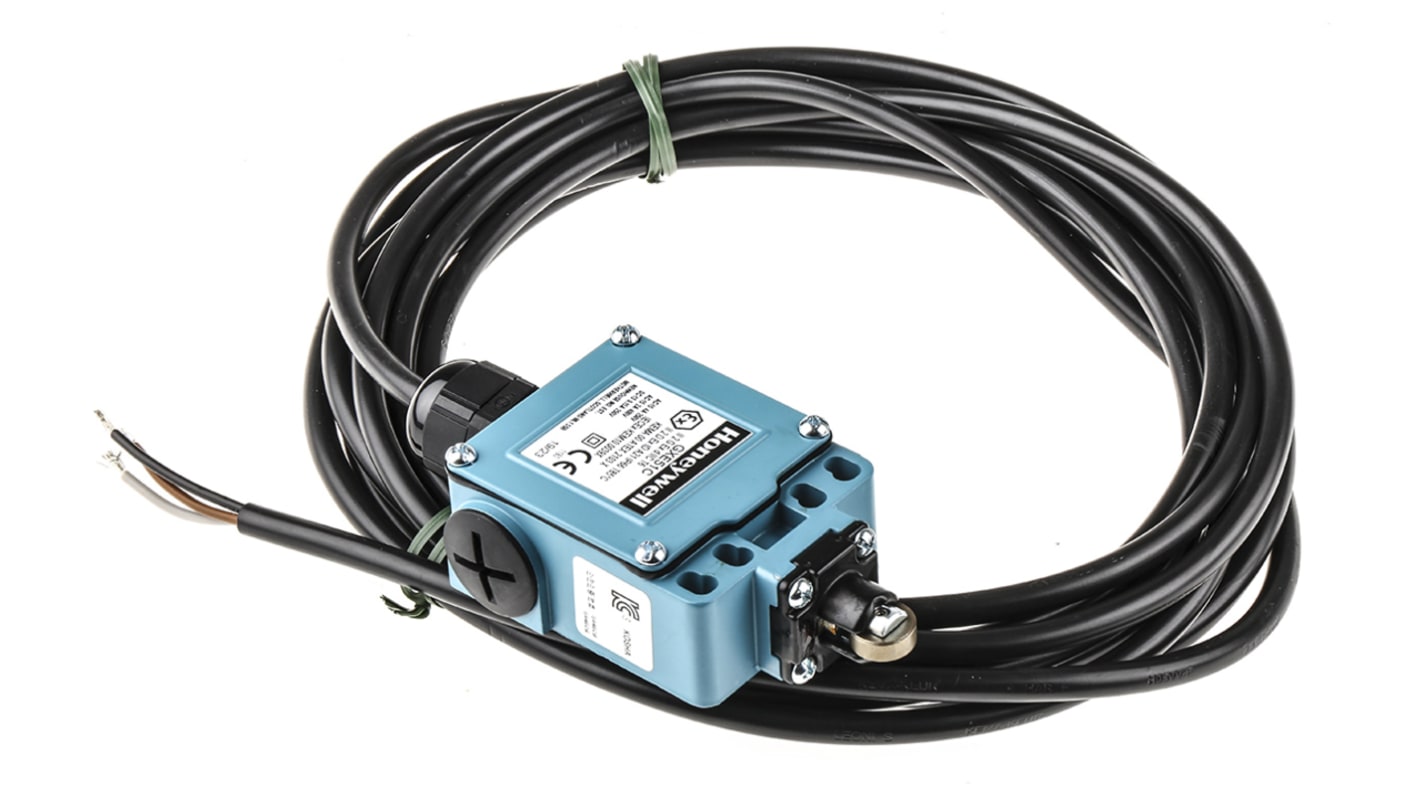

Honeywell GXE Series Top-roller plunger Limit Switch, SPDT, IP66, Die Cast Zinc Housing, 250V ac, 6A
- RS Stock No.:
- 382-9371
- Distrelec Article No.:
- 303-99-507
- Mfr. Part No.:
- GXE51C
- Brand:
- Honeywell
Subtotal (1 unit)*
£714.89
(exc. VAT)
£857.87
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 7 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £714.89 |
*price indicative
- RS Stock No.:
- 382-9371
- Distrelec Article No.:
- 303-99-507
- Mfr. Part No.:
- GXE51C
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Limit Switch | |
| Actuator Type | Top-roller plunger | |
| Contact Configuration | SPDT | |
| IP Rating | IP66 | |
| Housing Material | Die Cast Zinc | |
| Contact Type | Snap Action | |
| Switching Current | 6A | |
| Terminal Type | Cable | |
| Series | GXE | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -20°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | CE Certified | |
| Width | 52mm | |
| Depth | 30mm | |
| Length | 88mm | |
| Hazardous Area Certification | ATEX | |
| Mechanical Life | 2000000Operations | |
| Operating Force | 16N | |
| Mounting Orientation | Top | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Limit Switch | ||
Actuator Type Top-roller plunger | ||
Contact Configuration SPDT | ||
IP Rating IP66 | ||
Housing Material Die Cast Zinc | ||
Contact Type Snap Action | ||
Switching Current 6A | ||
Terminal Type Cable | ||
Series GXE | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -20°C | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals CE Certified | ||
Width 52mm | ||
Depth 30mm | ||
Length 88mm | ||
Hazardous Area Certification ATEX | ||
Mechanical Life 2000000Operations | ||
Operating Force 16N | ||
Mounting Orientation Top | ||
- COO (Country of Origin):
- GB
Honeywell GXE Series Limit Switch, Top-roller plunger Actuator Type, IP66 - GXE51C
This limit switch is a Compact actuating device designed to detect and control mechanical movement within industrial systems. It employs a top-roller plunger actuator and a snap-action contact arrangement to provide defined switching for automation and safety circuits. The enclosure is robust for challenging environments and the unit is intended for mounting where precise position sensing and reliable electrical make/break are required.
Features and Benefits:
• SPDT snap-action contact offers fast switching and clear state change
• IP66 die-cast zinc housing protects against dust and powerful water jets
• ATEX hazardous-area certification enables use in explosive atmospheres
• 2,000,000 mechanical operations deliver extended service life
• Rated for switching at 250V and 6 A supports typical control voltages
• 16 N operating force ensures accurate actuation with modest input force
• IP66 die-cast zinc housing protects against dust and powerful water jets
• ATEX hazardous-area certification enables use in explosive atmospheres
• 2,000,000 mechanical operations deliver extended service life
• Rated for switching at 250V and 6 A supports typical control voltages
• 16 N operating force ensures accurate actuation with modest input force
Applications
• Suitable for end-of-travel detection on conveyor guide rails
• Ideal for position sensing in valve and actuator assemblies
• Used for interlock monitoring in hazardous-area machinery
• Can be used for process control feedback in manufacturing lines
• Ideal for position sensing in valve and actuator assemblies
• Used for interlock monitoring in hazardous-area machinery
• Can be used for process control feedback in manufacturing lines
What Terminal arrangement does it use for wiring?
It provides a cable-style Terminal for direct cable connection rather than screw Terminals, simplifying sealed installations.
How does the device behave across temperature extremes?
It operates continuously within a range from -20 °C up to 75 °C without alteration of mechanical life ratings.
Are there orientation constraints during installation?
It is intended to be mounted with the actuator facing upwards to maintain correct plunger travel and repeatability.
What mechanical construction supports durability?
The housing uses a die-cast zinc body combined with a snap-action mechanism engineered for long-cycle switching.
Approvals
II 2 G EEx d IIC T6
