Telemecanique Sensors ZCKJ Series Limit Switch, NO/NC, IP65, DP, Metal Housing, 240V ac Max, 10A Max
- RS Stock No.:
- 360-8483
- Mfr. Part No.:
- ZCKJ1D
- Brand:
- Telemecanique Sensors

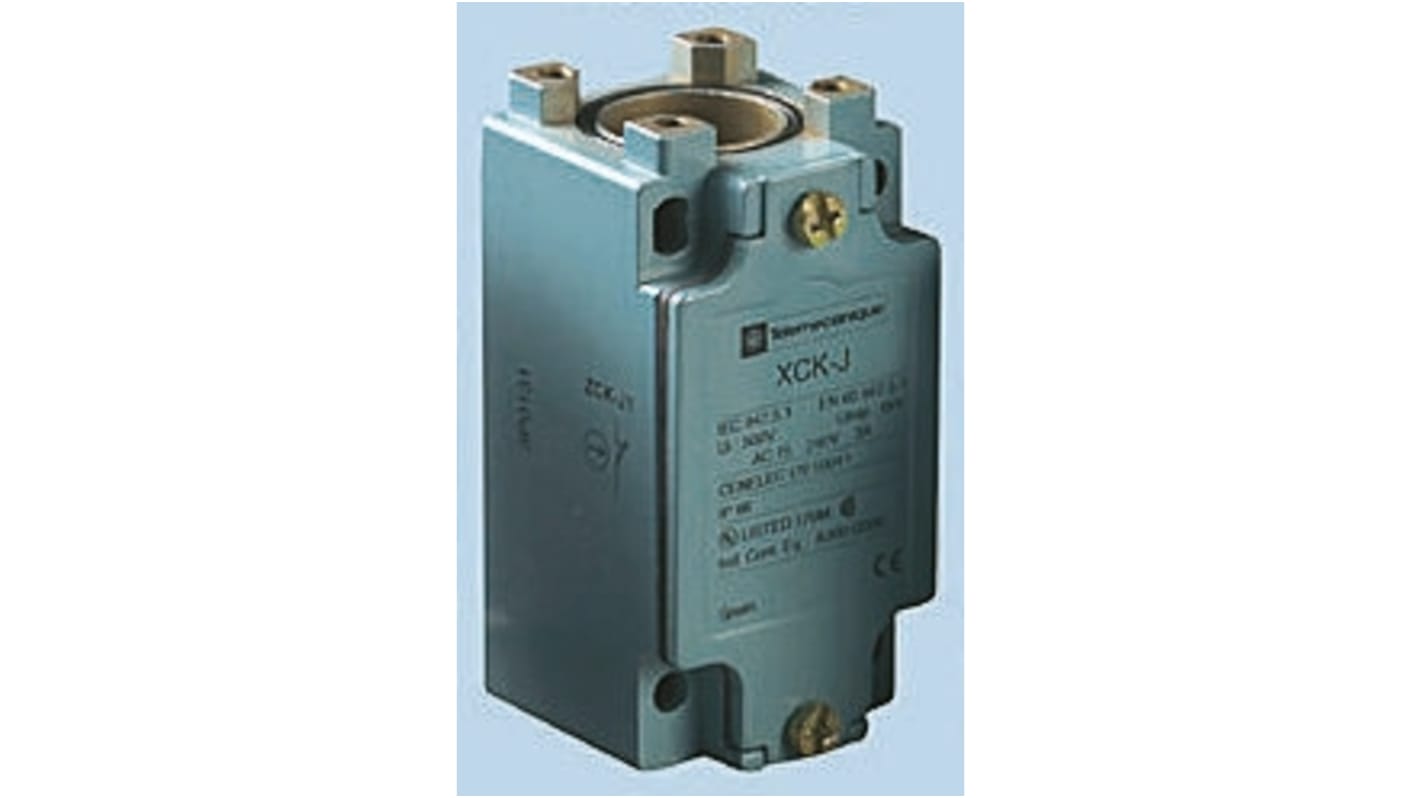

Image representative of range
Subtotal (1 unit)*
£87.76
(exc. VAT)
£105.31
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £87.76 |
*price indicative
- RS Stock No.:
- 360-8483
- Mfr. Part No.:
- ZCKJ1D
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Pole and Throw Configuration | DP | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP65 | |
| Maximum Current | 10A | |
| Housing Material | Metal | |
| Maximum AC Voltage | 240V | |
| Maximum DC Voltage | 250V | |
| Connection Type | M12 | |
| Series | ZCKJ | |
| Action Type | Snap Action | |
| Length | 77mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Width | 40mm | |
| Depth | 44mm | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Pole and Throw Configuration DP | ||
Normal State Configuration NO/NC | ||
IP Rating IP65 | ||
Maximum Current 10A | ||
Housing Material Metal | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 250V | ||
Connection Type M12 | ||
Series ZCKJ | ||
Action Type Snap Action | ||
Length 77mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Width 40mm | ||
Depth 44mm | ||
RoHS Status: Exempt
Standard Limit Switch Body / LED (ZCKJ)
Telemecanique OsiSense XCKJ series limit switch bodies allow complete limit switch assemblies to be constructed using ZCKE/Y limit switch heads and actuators.
Features and Benefits
Snap action contacts with positive opening operation
-25 to +70°C operating temperature
Protected to IP66
Robust metal body
-25 to +70°C operating temperature
Protected to IP66
Robust metal body
Standards
VDE0660, IEC947-5-1
Approvals
UL, CSA

Approvals
UL; CSA
