Honeywell GLC Series Adjustable Roller Lever Limit Switch, NO/NC, IP66, SPDT 1NO/1NC Gold Contacts, Die Cast Zinc
- RS Stock No.:
- 308-1951
- Mfr. Part No.:
- GLCB07A2B
- Brand:
- Honeywell
63 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£99.88
(exc. VAT)
£119.86
(inc. VAT)
Units | Per unit |
1 + | £99.88 |
- RS Stock No.:
- 308-1951
- Mfr. Part No.:
- GLCB07A2B
- Brand:
- Honeywell
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

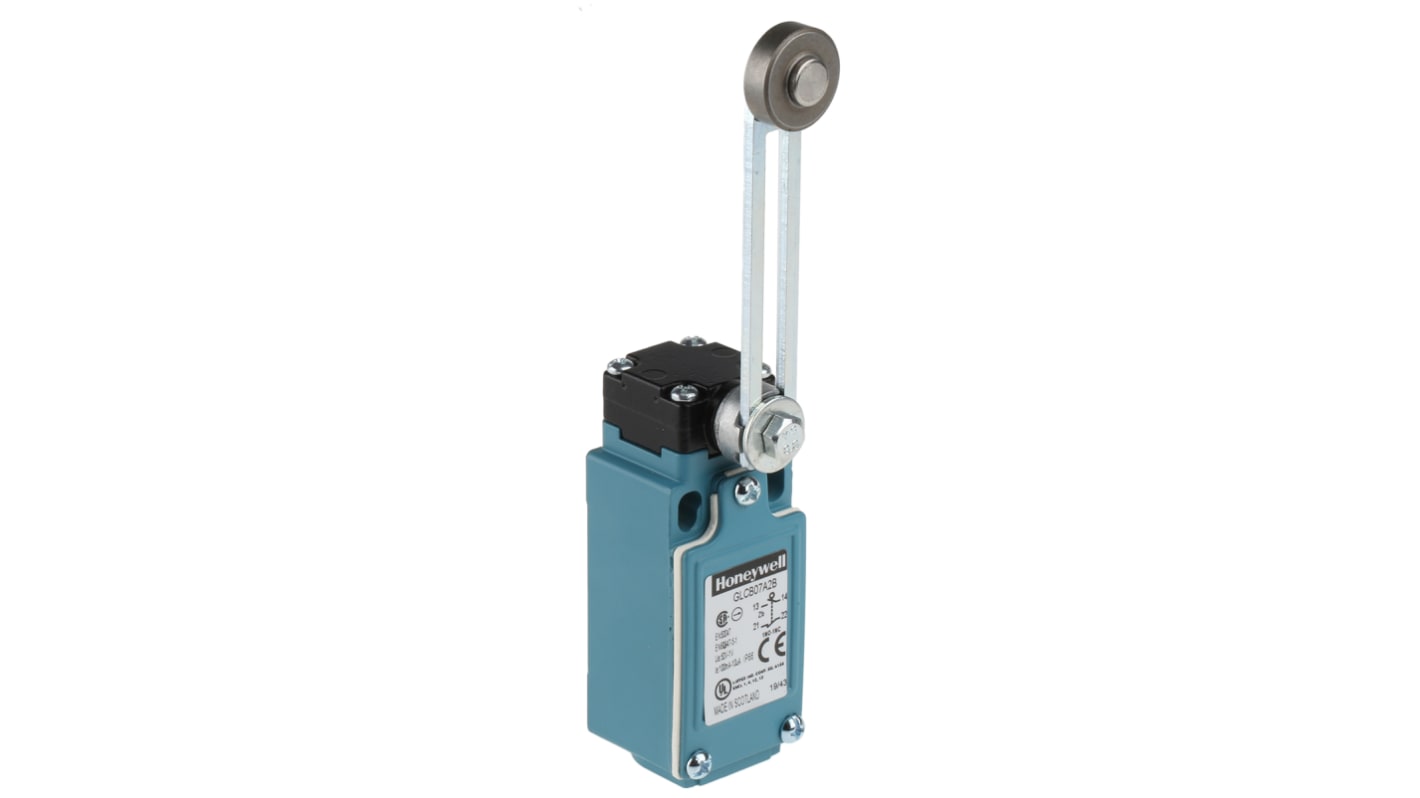

Honeywell Adjustable Roller Lever Snap-Action Limit Switch, -40°C to +85°C, 50V AC/DC - GLC Series - GLCB07A2B
Use this roller lever limit switch from Honeywell to control machinery in your industrial workplace. Thanks to its compact dimensions of 68.5 (length) x 30.5 (width) x 26.35mm (depth), it's a good choice for use in areas where space is limited. Its die-cast zinc housing is durable and corrosion-resistant for long-lasting use in harsh environments. For enhanced versatility, the roller lever is adjustable so you can adapt it to your specifications.
Features & Benefits
Wide operating temperature range of -40°C to +85°C for use in hot and cold environments
Removable contact block for ease of wiring and installation
IP66 (ingress protection) rating means it's dust-tight and protected against high-pressure water jets
Gold contacts for high conductivity and resistance to corrosion to ensure a reliable connection
Snap-action mechanism for rapid switching and fast response times
Removable contact block for ease of wiring and installation
IP66 (ingress protection) rating means it's dust-tight and protected against high-pressure water jets
Gold contacts for high conductivity and resistance to corrosion to ensure a reliable connection
Snap-action mechanism for rapid switching and fast response times
Applications
Material handling equipment
Moving stairs
Textile machinery
Construction industry
Machine tooling
Moving stairs
Textile machinery
Construction industry
Machine tooling
How long will this limit switch last?
This limit switch has a long mechanical lifespan of up to 10 million operations, making it a long-lasting choice.
Approvals
UL; CSA
Approvals
UL/ UL listed for Canada
Specifications
Attribute | Value |
---|---|
Actuator Type | Adjustable Roller Lever |
Pole and Throw Configuration | SPDT 1NO/1NC Gold Contacts |
Normal State Configuration | NO/NC |
IP Rating | IP66 |
Maximum Current | 100mA |
Housing Material | Die Cast Zinc |
Maximum AC Voltage | 50V |
Maximum DC Voltage | 50V |
Connection Type | PG13.5 |
Series | GLC |
Action Type | Snap Action |
Length | 68.5mm |
Maximum Operating Temperature | +85°C |
Standards Met | CCC, CE, CSA, UL |
Depth | 26.35mm |
Minimum Operating Temperature | -40°C |
Width | 30.5mm |
Mechanical Life | 10000000Cycles |
Mounting Orientation | EN50047 |
