MPN

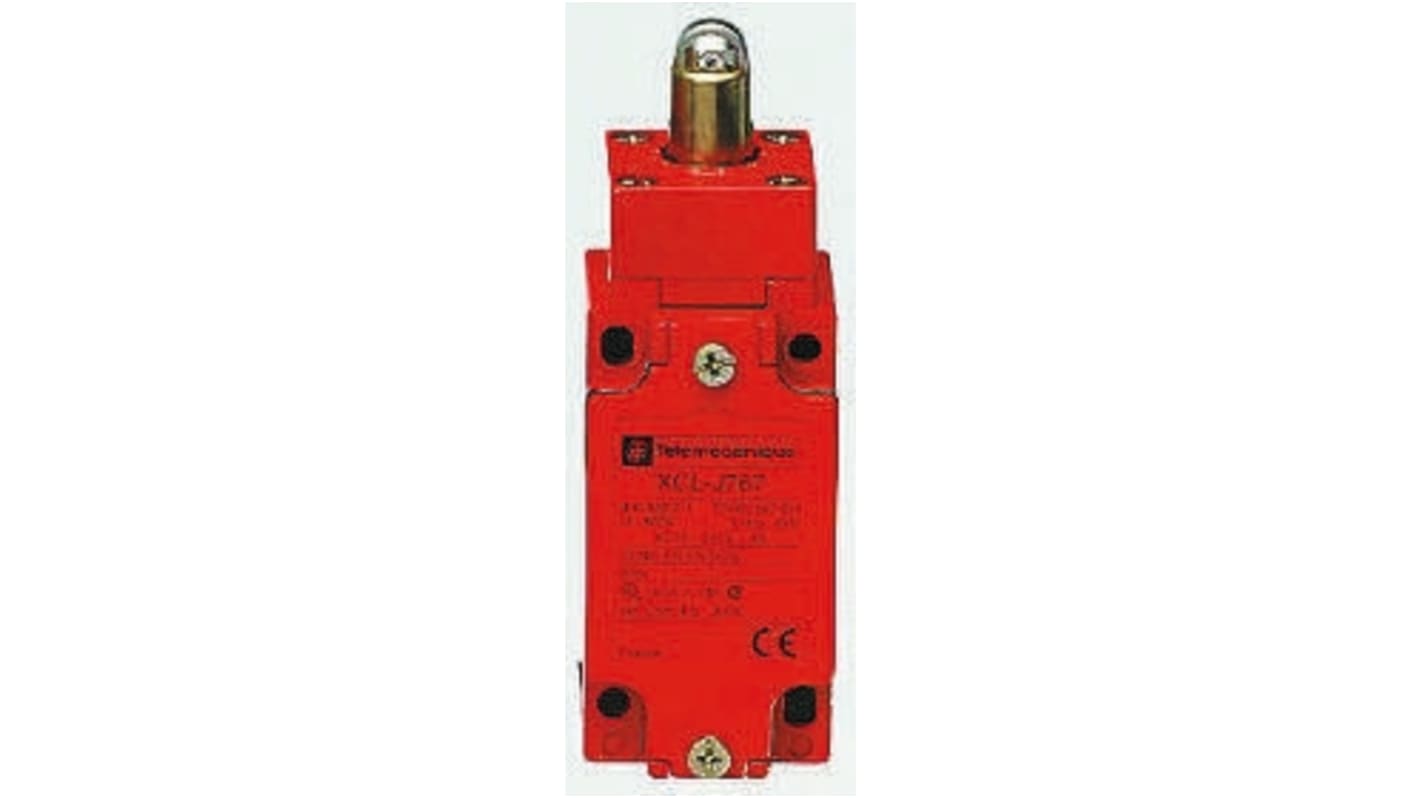

Telemecanique Sensors XCL-J Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 240V ac, 3A

RS Stock No.:: 302-0063
Distrelec Article No.:: 304-23-860
Mfr. Part No.:: XCLJ767H29
Brand:: Telemecanique Sensors

Telemecanique Sensors XCL-J Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 240V ac, 3A

Subtotal (1 unit)*

£100.30

(exc. VAT)

£120.36

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

1 unit(s) ready to ship
Plus 4 unit(s) shipping from 10 June 2026
Plus 9 unit(s) shipping from 24 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£100.30

*price indicative

RS Stock No.:: 302-0063
Distrelec Article No.:: 304-23-860
Mfr. Part No.:: XCLJ767H29
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Actuator Type	Roller Plunger
	Product Type	Limit Switch
	Contact Configuration	1 NO/1 NC
	IP Rating	IP66
	Housing Material	Zinc Alloy
	Contact Type	Slow Action
	Switching Current	3A
	Terminal Type	Screw
	Series	XCL-J
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	240V ac
	Switching DC Voltage	250V dc
	Maximum Operating Temperature	70°C
	Depth	40mm
	Standards/Approvals	RoHS, REACH, IEC, EN
	Length	107mm
	Width	44mm
	Hazardous Area Certification	No
	Conduit Entry	M20
	Mechanical Life	30000000Cycles
	Operating Force	40N

	Select all
	Brand Telemecanique Sensors
	Actuator Type Roller Plunger
	Product Type Limit Switch
	Contact Configuration 1 NO/1 NC
	IP Rating IP66
	Housing Material Zinc Alloy
	Contact Type Slow Action
	Switching Current 3A
	Terminal Type Screw
	Series XCL-J
	Minimum Operating Temperature -25°C
	Switching AC Voltage 240V ac
	Switching DC Voltage 250V dc
	Maximum Operating Temperature 70°C
	Depth 40mm
	Standards/Approvals RoHS, REACH, IEC, EN
	Length 107mm
	Width 44mm
	Hazardous Area Certification No
	Conduit Entry M20
	Mechanical Life 30000000Cycles
	Operating Force 40N

RoHS Status: Exempt

COO (Country of Origin):: FR

XCL J Series, Safety Limit Switches

Heavy duty red metal body with positive opening contacts for safety applications

For detecting position of moveable guards

2 Positive opening contacts

IP66 Rating

Cable entry tapped M20 x 1.5 ISO

Safety Limit Switch

Standards

IEC 947-5-1, IEC 337-1, EN 60947-5-1
