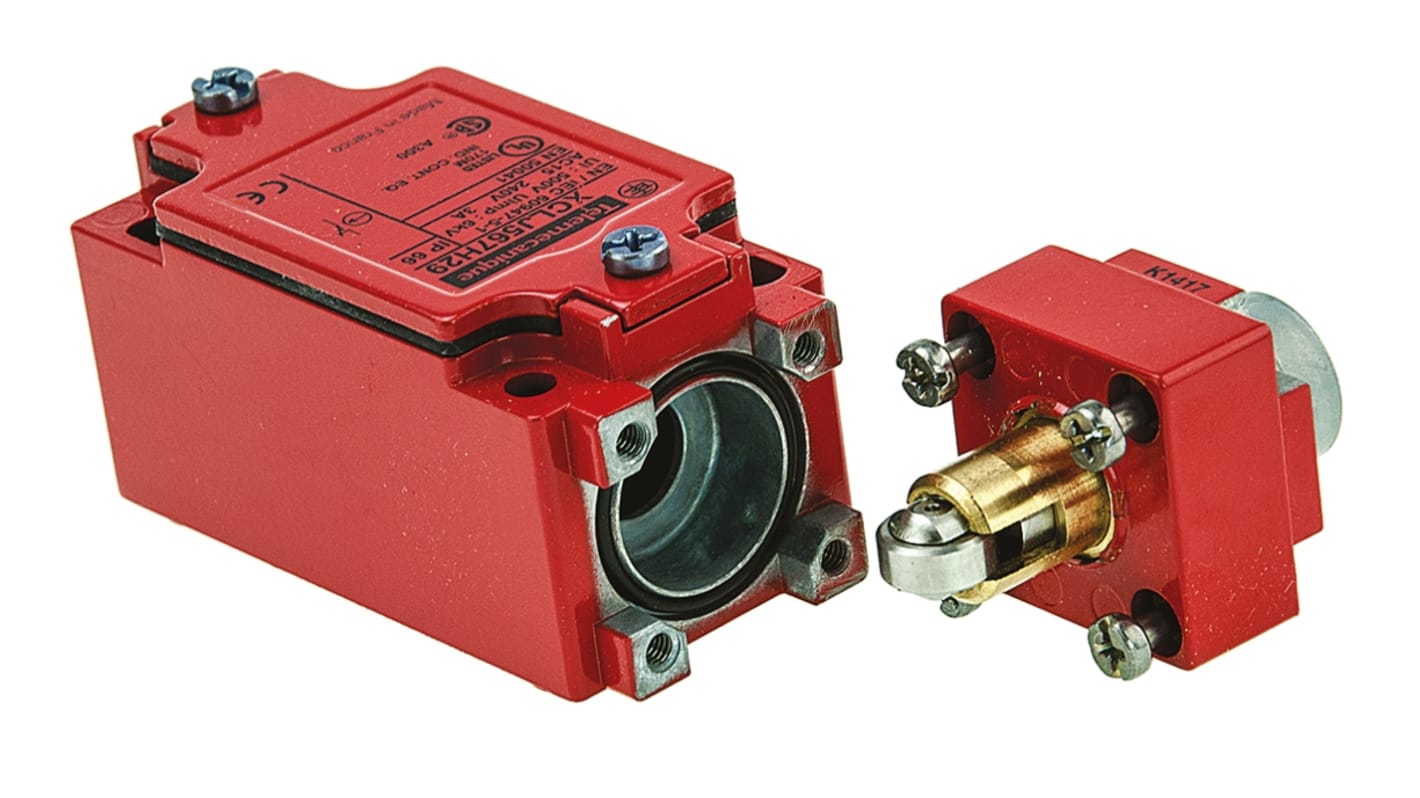

Telemecanique Sensors XCL-J Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 240V ac, 3A

RS Stock No.:: 302-0013
Mfr. Part No.:: XCLJ567H29
Brand:: Telemecanique Sensors

Telemecanique Sensors XCL-J Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 240V ac, 3A

Subtotal (1 unit)*

£96.80

(exc. VAT)

£116.16

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 9 unit(s) shipping from 02 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£96.80

*price indicative

RS Stock No.:: 302-0013
Mfr. Part No.:: XCLJ567H29
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Product Type	Limit Switch
	Actuator Type	Roller Plunger
	IP Rating	IP66
	Contact Configuration	1 NO/1 NC
	Housing Material	Zinc Alloy
	Contact Type	Slow Action
	Switching Current	3A
	Terminal Type	Screw
	Series	XCL-J
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	240V ac
	Switching DC Voltage	250V dc
	Maximum Operating Temperature	70°C
	Depth	40mm
	Standards/Approvals	RoHS, REACH, IEC, EN
	Width	44mm
	Length	120mm
	Hazardous Area Certification	No
	Mechanical Life	30000000Cycles
	Operating Force	28N

	Select all
	Brand Telemecanique Sensors
	Product Type Limit Switch
	Actuator Type Roller Plunger
	IP Rating IP66
	Contact Configuration 1 NO/1 NC
	Housing Material Zinc Alloy
	Contact Type Slow Action
	Switching Current 3A
	Terminal Type Screw
	Series XCL-J
	Minimum Operating Temperature -25°C
	Switching AC Voltage 240V ac
	Switching DC Voltage 250V dc
	Maximum Operating Temperature 70°C
	Depth 40mm
	Standards/Approvals RoHS, REACH, IEC, EN
	Width 44mm
	Length 120mm
	Hazardous Area Certification No
	Mechanical Life 30000000Cycles
	Operating Force 28N

RoHS Status: Exempt

XCL J Series, Safety Limit Switches

Heavy duty red metal body with positive opening contacts for safety applications

For detecting position of moveable guards

2 Positive opening contacts

IP66 Rating

Cable entry tapped M20 x 1.5 ISO

Safety Limit Switch

Standards

IEC 947-5-1, IEC 337-1, EN 60947-5-1
