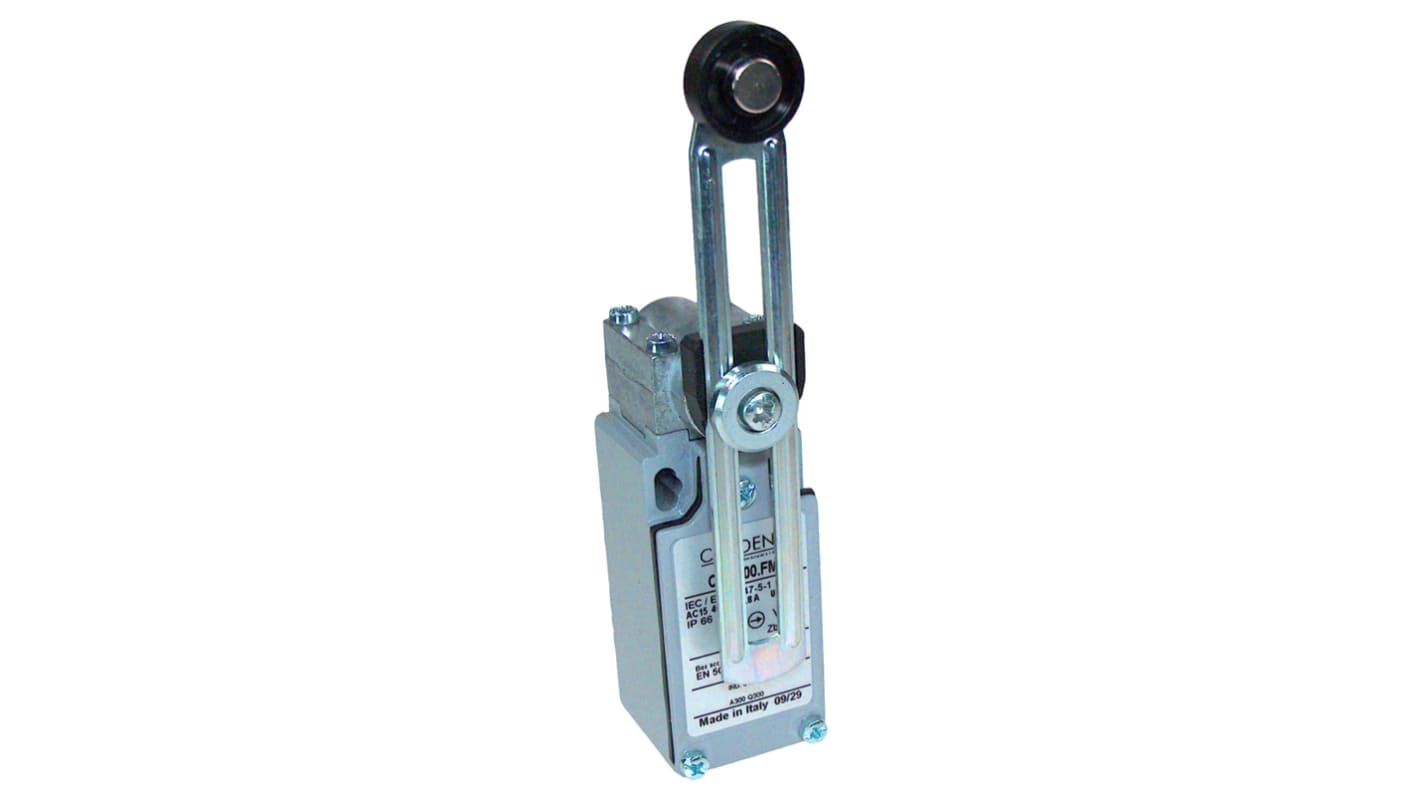

CAMDENBOSS CE10 Series Adjustable Roller Lever Limit Switch, 1 NO/1 NC, IP66, Metal Housing, 400V ac, 10A
- RS Stock No.:
- 280-7656
- Distrelec Article No.:
- 304-34-333
- Mfr. Part No.:
- CE10.00.FM
- Brand:
- CAMDENBOSS
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 280-7656
- Distrelec Article No.:
- 304-34-333
- Mfr. Part No.:
- CE10.00.FM
- Brand:
- CAMDENBOSS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CAMDENBOSS | |
| Product Type | Limit Switch | |
| Actuator Type | Adjustable Roller Lever | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP66 | |
| Housing Material | Metal | |
| Contact Type | Snap Action | |
| Switching Current | 10A | |
| Series | CE10 | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 400V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 30mm | |
| Standards/Approvals | US approved, CE, CSA, EN 60947-5-1, IEC 947-5-1, IMQ, RoHS, UL | |
| Length | 172.5mm | |
| Hazardous Area Certification | No | |
| Operating Force | 0.1N | |
| Conduit Entry | PG13.5 | |
| Select all | ||
|---|---|---|
Brand CAMDENBOSS | ||
Product Type Limit Switch | ||
Actuator Type Adjustable Roller Lever | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP66 | ||
Housing Material Metal | ||
Contact Type Snap Action | ||
Switching Current 10A | ||
Series CE10 | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 400V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Width 30mm | ||
Standards/Approvals US approved, CE, CSA, EN 60947-5-1, IEC 947-5-1, IMQ, RoHS, UL | ||
Length 172.5mm | ||
Hazardous Area Certification No | ||
Operating Force 0.1N | ||
Conduit Entry PG13.5 | ||
- COO (Country of Origin):
- IT
The CAMDENBOSS 30 mm Wide limit switch offer a space efficient solution without compromising functionality. Constructed with double insulated plastic, they ensure reliable performance and safety. Additionally, the plastic option meets IP65 standards, providing effective protection against dust and water ingress.
Metal option to IP66
Snap action contacts
Short circuit protection
