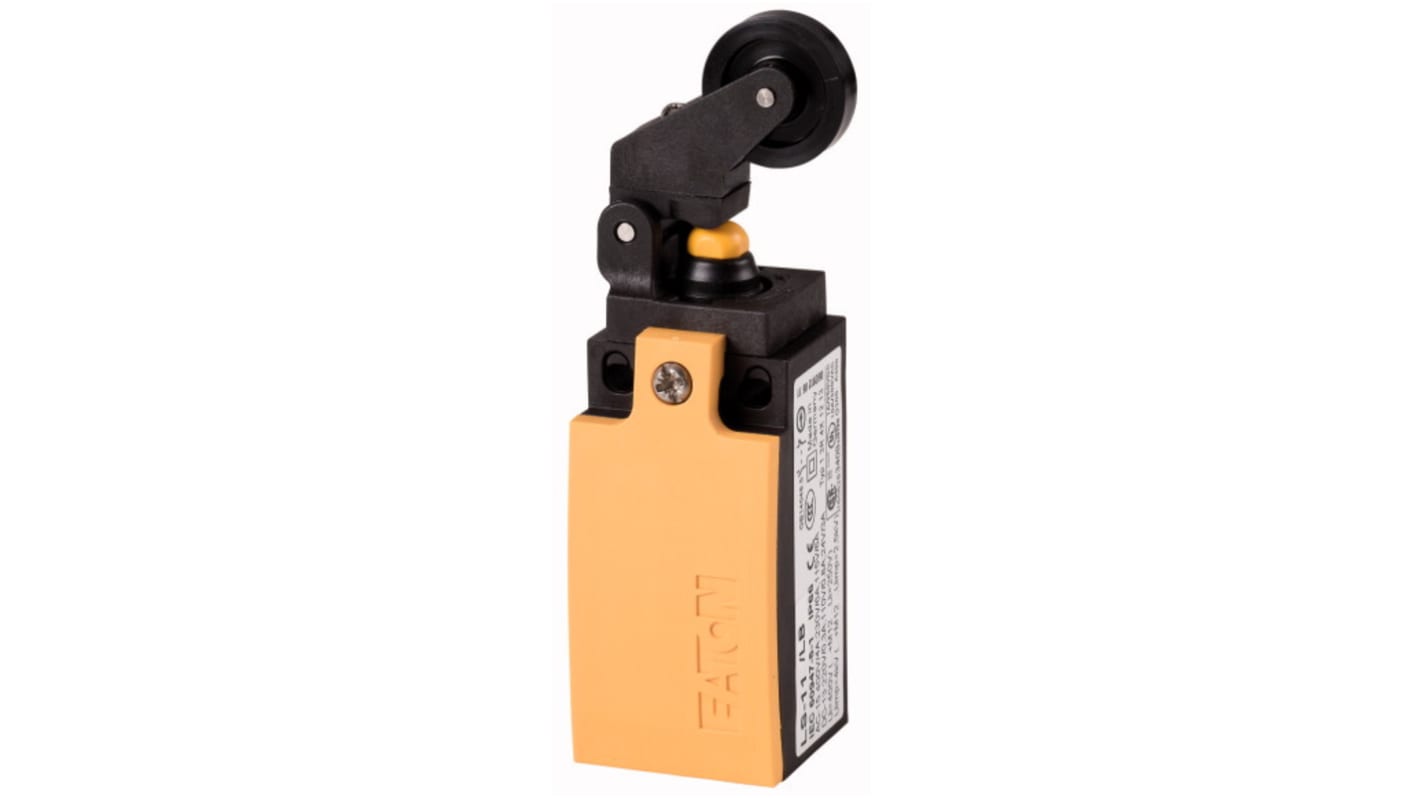

Eaton Roller Lever Limit Switch, IP67, IP66, Plastic Housing, 400V
- RS Stock No.:
- 273-6551
- Distrelec Article No.:
- 301-28-461
- Mfr. Part No.:
- 290175 LS-11/LB
- Brand:
- Eaton
Subtotal (1 unit)*
£38.81
(exc. VAT)
£46.57
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 11 unit(s) shipping from 20 April 2026
- Plus 12 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £38.81 |
*price indicative
- RS Stock No.:
- 273-6551
- Distrelec Article No.:
- 301-28-461
- Mfr. Part No.:
- 290175 LS-11/LB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Limit Switch | |
| Actuator Type | Roller Lever | |
| IP Rating | IP67, IP66 | |
| Housing Material | Plastic | |
| Contact Type | Cage Clamp | |
| Terminal Type | Cage Clamp Terminal | |
| Series | Eaton Moeller | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 400V | |
| Maximum Operating Temperature | 70°C | |
| Depth | 33.5mm | |
| Length | 33.5mm | |
| Width | 31mm | |
| Standards/Approvals | IEC/EN 60947, IEC/EN 61439 | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 8000000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Limit Switch | ||
Actuator Type Roller Lever | ||
IP Rating IP67, IP66 | ||
Housing Material Plastic | ||
Contact Type Cage Clamp | ||
Terminal Type Cage Clamp Terminal | ||
Series Eaton Moeller | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 400V | ||
Maximum Operating Temperature 70°C | ||
Depth 33.5mm | ||
Length 33.5mm | ||
Width 31mm | ||
Standards/Approvals IEC/EN 60947, IEC/EN 61439 | ||
Hazardous Area Certification NO | ||
Mechanical Life 8000000Cycles | ||
Non Compliant
- COO (Country of Origin):
- DE
The Eaton Position switch has roller plunger type control element. The switch enclosure has yellow colour cover. This switch perform slow action switch function and it has one normally closed with one normally open contacts. This position switch offers damp heat, constant to IEC 60068-2-78 and damp heat, cyclic to IEC 60068-2-30 climatic proofing. It supports maximum 70 degree Celsius ambient operating temperature.
Positive and forced opening
Class III overvoltage category
0.2 Nm actuating torque of rotary drives
8000000 mechanical operations lifespan
6000 operations per Hz operating frequency
Note
Eaton formerly known as Moeller
