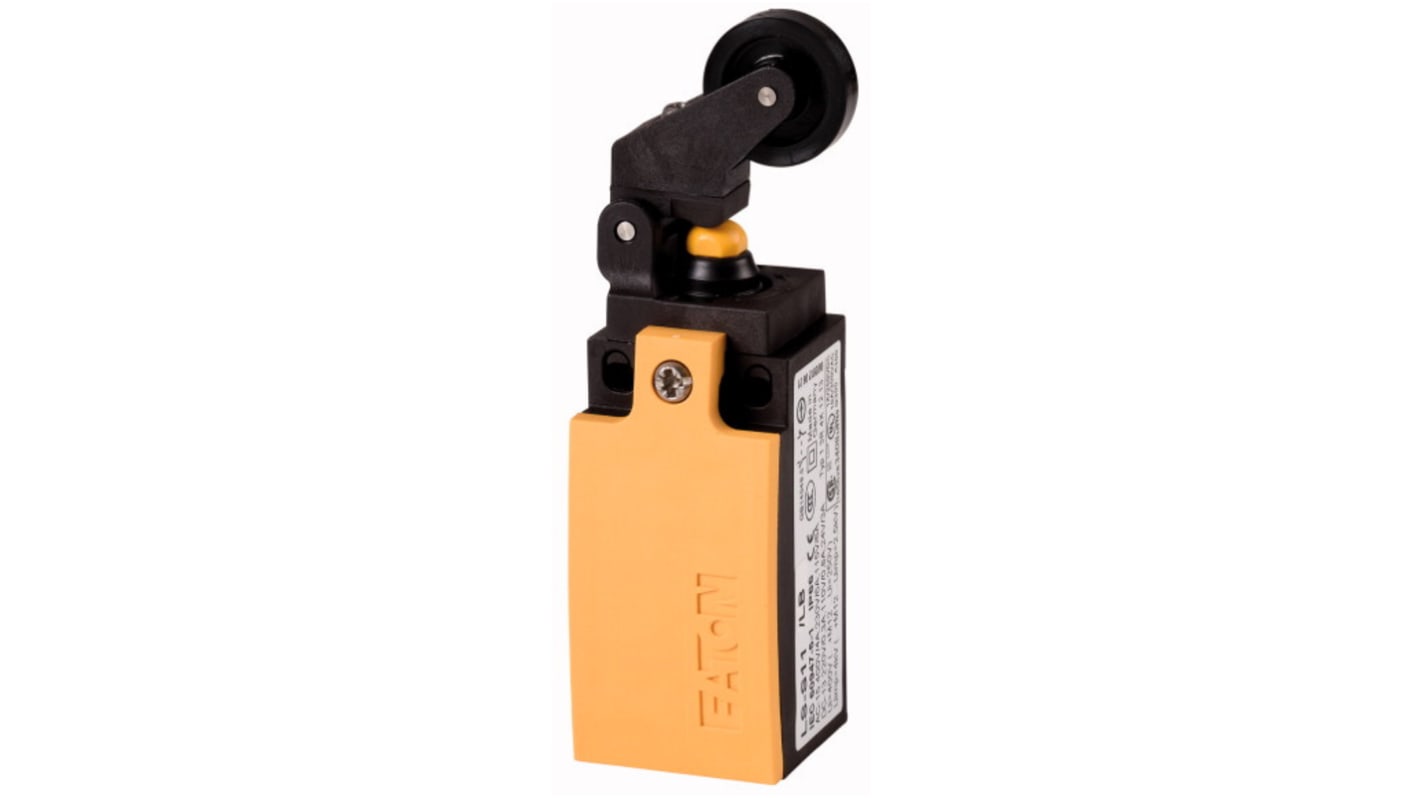

Eaton Roller Lever Limit Switch, IP66, IP67, Plastic Housing, 400V, 6A
- RS Stock No.:
- 273-6419
- Mfr. Part No.:
- 106786 LS-S11/LB
- Brand:
- Eaton
Subtotal (1 unit)*
£38.81
(exc. VAT)
£46.57
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 5 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £38.81 |
*price indicative
- RS Stock No.:
- 273-6419
- Mfr. Part No.:
- 106786 LS-S11/LB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Actuator Type | Roller Lever | |
| Product Type | Limit Switch | |
| IP Rating | IP66, IP67 | |
| Housing Material | Plastic | |
| Contact Type | Type S | |
| Switching Current | 6A | |
| Terminal Type | Screw | |
| Series | Eaton Moeller | |
| Switching AC Voltage | 400V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 33.5mm | |
| Length | 33.5mm | |
| Standards/Approvals | IEC/EN 60947, IEC/EN 61439 | |
| Width | 31mm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Actuator Type Roller Lever | ||
Product Type Limit Switch | ||
IP Rating IP66, IP67 | ||
Housing Material Plastic | ||
Contact Type Type S | ||
Switching Current 6A | ||
Terminal Type Screw | ||
Series Eaton Moeller | ||
Switching AC Voltage 400V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Depth 33.5mm | ||
Length 33.5mm | ||
Standards/Approvals IEC/EN 60947, IEC/EN 61439 | ||
Width 31mm | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- DE
The Eaton Position switch has roller lever type control element. The switch enclosure has yellow colour cover. This switch perform slow action switch function and it has one normally closed with one normally open contacts. This position switch offers damp heat, constant to IEC 60068-2-78 and damp heat, cyclic to IEC 60068-2-30 climatic proofing. It supports maximum 70 degree Celsius ambient operating temperature.
Positive and forced opening
Class III overvoltage category
0.2 Nm actuating torque of rotary drives
8000000 mechanical operations lifespan
6000 operations per Hz operating frequency
Note
Eaton formerly known as Moeller
