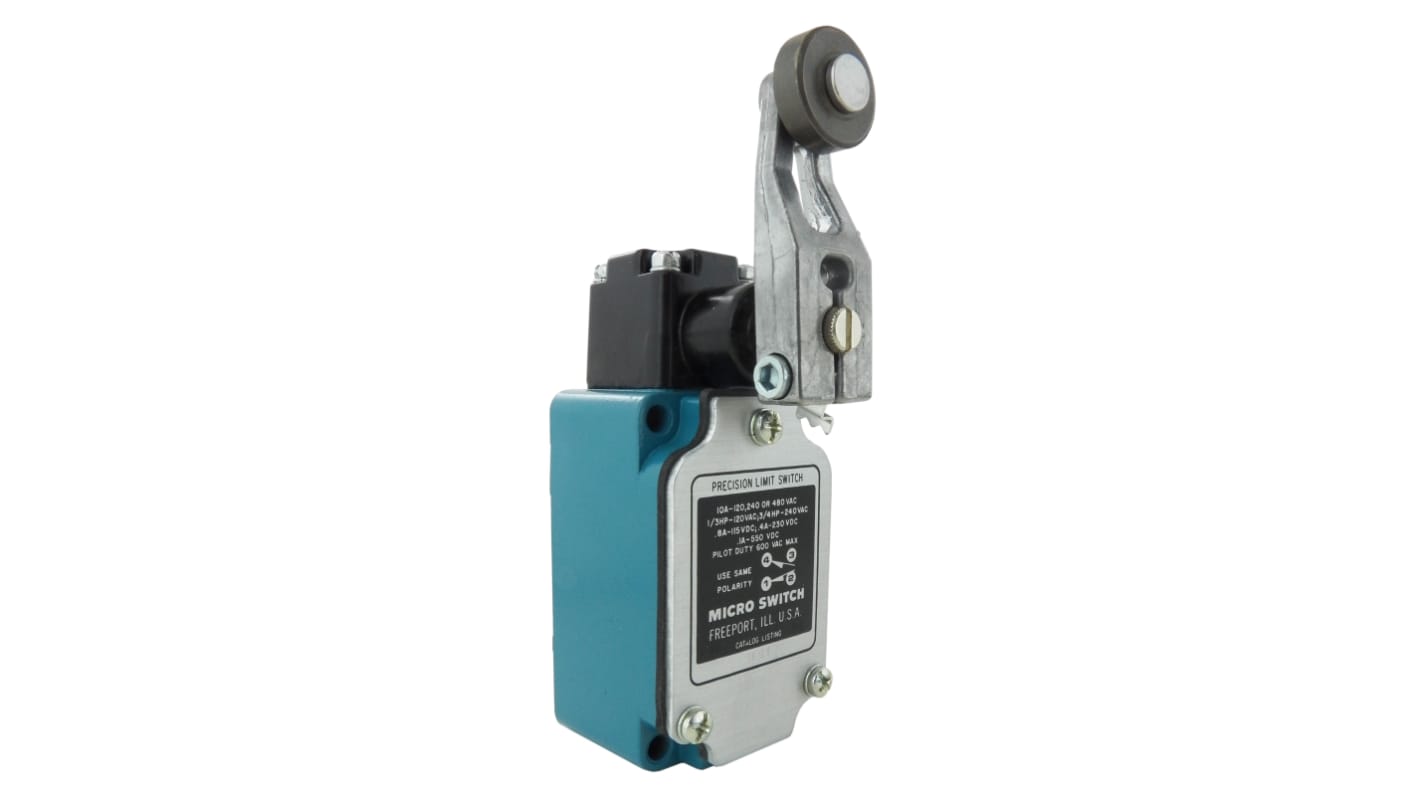

Honeywell LS Series Wobble Limit Switch, SPDT, IP67, Die Cast Zinc Housing, 240V, 10A, 5 A

RS Stock No.:: 217-7117
Mfr. Part No.:: 8LS1-4PG
Brand:: Honeywell

Honeywell LS Series Wobble Limit Switch, SPDT, IP67, Die Cast Zinc Housing, 240V, 10A, 5 A

Subtotal (1 unit)*

£217.92

(exc. VAT)

£261.50

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

31 unit(s) ready to ship
Plus 5 unit(s) shipping from 20 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£217.92

*price indicative

Upgrade to Honeywell HDLS Limit Switches

Rugged, reliable, and built for tough environments - Honeywell HDLS limit switches deliver long-lasting performance and precise actuation. A simple way to boost durability and reduce downtime.

Shop Here

RS Stock No.:: 217-7117
Mfr. Part No.:: 8LS1-4PG
Brand:: Honeywell

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Product Type	Limit Switch
	Actuator Type	Wobble
	Contact Configuration	SPDT
	IP Rating	IP67
	Housing Material	Die Cast Zinc
	Contact Type	Snap Action
	Switching Current	10, 5A
	Terminal Type	Screw
	Series	LS
	Switching DC Voltage	550V dc
	Minimum Operating Temperature	-29°C
	Switching AC Voltage	240V
	Maximum Operating Temperature	120°C
	Width	40mm
	Standards/Approvals	CE, CSA file 57325, EN60947-5-41, IEC60947-5-4, UL file 12252
	Depth	40.46mm
	Length	204.47mm
	Hazardous Area Certification	No
	Operating Force	1.39N
	Conduit Entry	PG13.5
	Mounting Orientation	Panel

	Select all
	Brand Honeywell
	Product Type Limit Switch
	Actuator Type Wobble
	Contact Configuration SPDT
	IP Rating IP67
	Housing Material Die Cast Zinc
	Contact Type Snap Action
	Switching Current 10, 5A
	Terminal Type Screw
	Series LS
	Switching DC Voltage 550V dc
	Minimum Operating Temperature -29°C
	Switching AC Voltage 240V
	Maximum Operating Temperature 120°C
	Width 40mm
	Standards/Approvals CE, CSA file 57325, EN60947-5-41, IEC60947-5-4, UL file 12252
	Depth 40.46mm
	Length 204.47mm
	Hazardous Area Certification No
	Operating Force 1.39N
	Conduit Entry PG13.5
	Mounting Orientation Panel

Honeywell Series LS Limit Switch, 38.1mm Length, IP67 - 8LS1-4PG

This limit switch is a robust industrial position-sensing device designed for demanding automation and control environments. It uses a wobble-type actuator to detect mechanical movement and provides a single-pole double-throw contact output. The unit is housed in die-cast zinc with ingress protection suitable for harsh conditions and accepts conduit entry via 1/2-14 NPT, making it appropriate for electrical installations requiring a secure mechanical interface.

Features and Benefits:

• IP67-sealed housing delivers protection in wet environments
• SPDT snap-action contacts enable quick, decisive switching
• Suitable for AC switching up to 480V AC and 5–10A current capacity
• Capable of DC switching up to 550V DC for high-voltage circuits
• Operates across temperatures from -30°C to 120°C for wide thermal ranges
• Terminal Block connections simplify field wiring and maintenance

Applications

• Suitable for conveyor end-of-travel detection in manufacturing lines
• Ideal for limit sensing on industrial gate and door actuators
• Used for position feedback in heavy machinery control systems
• Can be used for safety interlocks in electrical enclosures
• Used with automated material-handling equipment for repeatable stops

What mounting or electrical entry options are provided for conduit?

The device accepts 1/2-14 NPT conduit entry, allowing standard threaded conduit fittings for protected cable runs.

How does the switch perform under elevated ambient temperatures?

It is specified to operate up to 120°C, enabling use near heat-generating equipment or warm process areas.

What type of actuation and contact behaviour should be expected mechanically?

A wobble actuator mechanically senses movement and operates snap-action SPDT contacts for a Rapid changeover response.

How are the electrical connections arranged for wiring installation?

Connections are MADE via a Terminal block, permitting secure screw Terminals for field wiring.

Which certifications and approvals accompany the device for industrial compliance?

It carries CE marking and is listed to CSA and UL files, and conforms to EN 60947-5-4 and IEC 60947-5-4 functional standards.
