Telemecanique Sensors XCMW Series Roller Plunger Limit Switch, 1NC/1NO, IP65, SPDT, Plastic Housing, 3A Max
- RS Stock No.:
- 197-6446
- Mfr. Part No.:
- XCMWD02
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£370.97
(exc. VAT)
£445.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £370.97 |
*price indicative
- RS Stock No.:
- 197-6446
- Mfr. Part No.:
- XCMWD02
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Actuator Type | Roller Plunger | |
| Pole and Throw Configuration | SPDT | |
| Normal State Configuration | 1NC/1NO | |
| IP Rating | IP65 | |
| Maximum Current | 3A | |
| Housing Material | Plastic | |
| Series | XCMW | |
| Action Type | Snap Action | |
| Length | 16mm | |
| Depth | 84mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +55°C | |
| Width | 30mm | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Roller Plunger | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration 1NC/1NO | ||
IP Rating IP65 | ||
Maximum Current 3A | ||
Housing Material Plastic | ||
Series XCMW | ||
Action Type Snap Action | ||
Length 16mm | ||
Depth 84mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +55°C | ||
Width 30mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

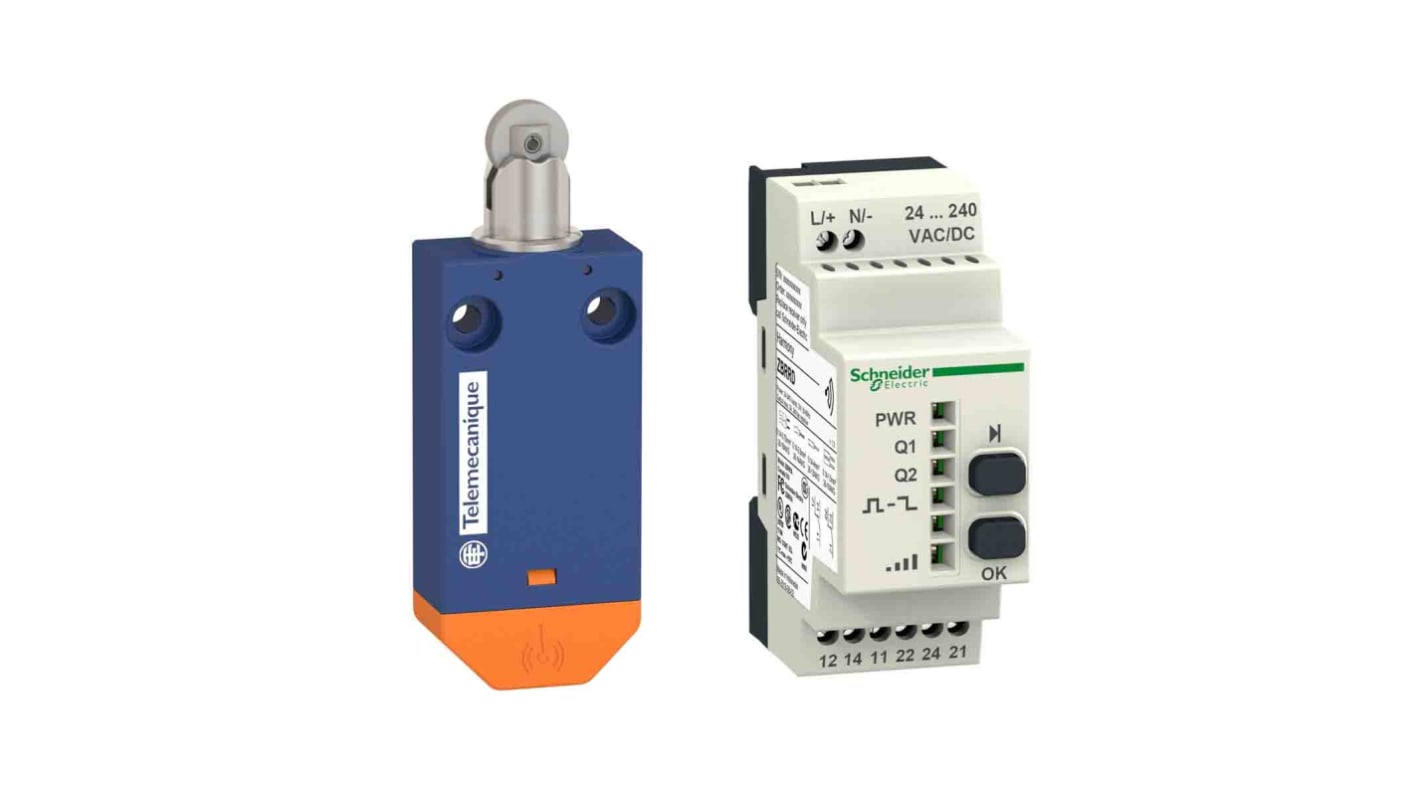

The Telemecanique sensor XCMW series wireless limit switch is used to determine the position of an item or
part of a machine remotely without a wired connection. The transmitter is equipped with a dynamo generator that converts the mechanical energy produced by the
actuator movement to electrical energy.
part of a machine remotely without a wired connection. The transmitter is equipped with a dynamo generator that converts the mechanical energy produced by the
actuator movement to electrical energy.
Wireless limit switch with spring return roller plunger
2 relay output
2 relay output
