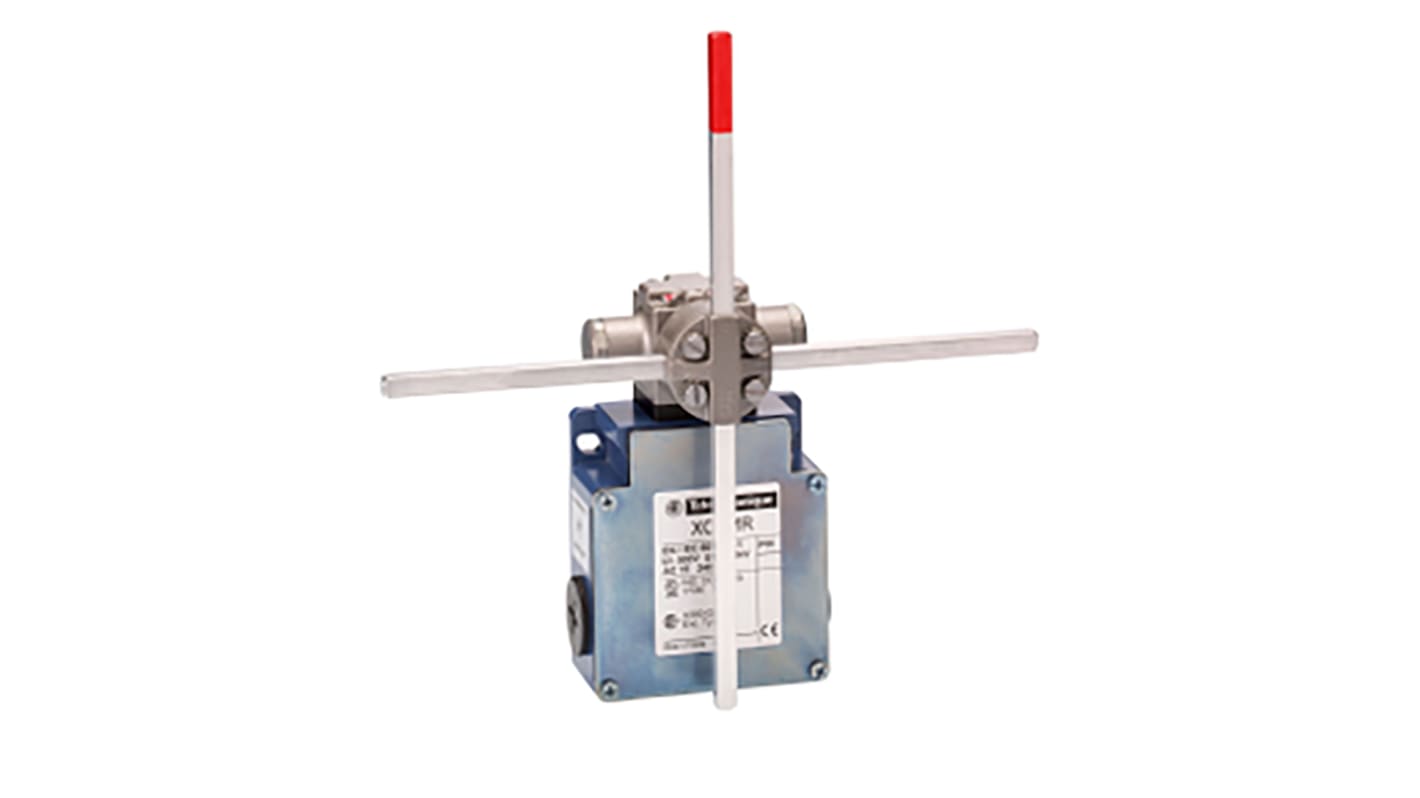

Telemecanique Sensors OsiSense XC Series Rod Limit Switch, 4P, IP66, Zinc Alloy Housing, 500V ac, 10A
- RS Stock No.:
- 179-9866
- Mfr. Part No.:
- XCKMR24SR1H29
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£289.26
(exc. VAT)
£347.11
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- Plus 4 left, shipping from 27 April 2026
- Plus 2 left, shipping from 29 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £289.26 |
*price indicative
- RS Stock No.:
- 179-9866
- Mfr. Part No.:
- XCKMR24SR1H29
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Actuator Type | Rod | |
| Product Type | Limit Switch | |
| IP Rating | IP66 | |
| Contact Configuration | 4P | |
| Housing Material | Zinc Alloy | |
| Contact Type | Snap Action | |
| Terminal Type | M20 | |
| Switching Current | 10A | |
| Series | OsiSense XC | |
| Minimum Operating Temperature | -25°C | |
| Switching DC Voltage | 500V dc | |
| Switching AC Voltage | 500V ac | |
| Maximum Operating Temperature | 70°C | |
| Width | 59mm | |
| Standards/Approvals | RoHS | |
| Length | 200mm | |
| Depth | 118mm | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 2000000Cycles | |
| Conduit Entry | M20 | |
| Mounting Orientation | Vertical | |
| Operating Force | 0.5Nm | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Rod | ||
Product Type Limit Switch | ||
IP Rating IP66 | ||
Contact Configuration 4P | ||
Housing Material Zinc Alloy | ||
Contact Type Snap Action | ||
Terminal Type M20 | ||
Switching Current 10A | ||
Series OsiSense XC | ||
Minimum Operating Temperature -25°C | ||
Switching DC Voltage 500V dc | ||
Switching AC Voltage 500V ac | ||
Maximum Operating Temperature 70°C | ||
Width 59mm | ||
Standards/Approvals RoHS | ||
Length 200mm | ||
Depth 118mm | ||
Hazardous Area Certification NO | ||
Mechanical Life 2000000Cycles | ||
Conduit Entry M20 | ||
Mounting Orientation Vertical | ||
Operating Force 0.5Nm | ||
- COO (Country of Origin):
- ID
IEC limit switches dedicated for specific applications such as hoisting, Mining, Minerals & Metals or belt conveying
Limit switch XCKMR - reverse head stay put crossed rods - 2x(2 NC) - slow – M20
