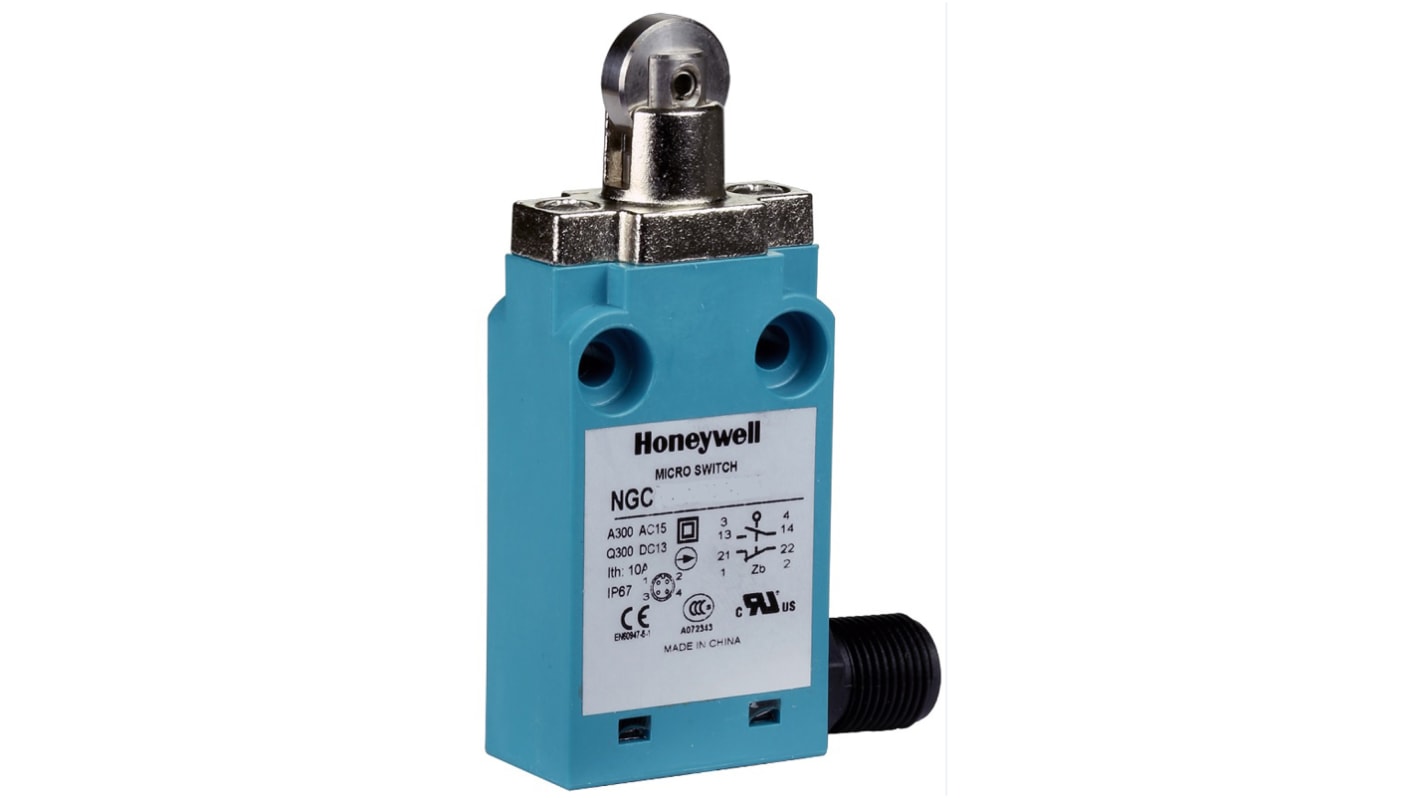

Honeywell NGC Series Roller Plunger Limit Switch, NO/NC, IP67, SPDT, Metal Housing, 240V ac Max, 6A Max
- RS Stock No.:
- 125-2415
- Mfr. Part No.:
- NGCMA00NX01C
- Brand:
- Honeywell
Subtotal (1 unit)*
£65.18
(exc. VAT)
£78.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £65.18 |
*price indicative
- RS Stock No.:
- 125-2415
- Mfr. Part No.:
- NGCMA00NX01C
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Honeywell | |
Actuator Type | Roller Plunger | |
Pole and Throw Configuration | SPDT | |
Normal State Configuration | NO/NC | |
IP Rating | IP67 | |
Maximum Current | 6A | |
Housing Material | Metal | |
Maximum AC Voltage | 240V | |
Maximum DC Voltage | 250V | |
Connection Type | M12 | |
Series | NGC | |
Action Type | Snap Action | |
Length | 30mm | |
Maximum Operating Temperature | +75°C | |
Width | 16.7mm | |
Depth | 71.1mm | |
Minimum Operating Temperature | -25°C | |
Standards Met | CCC, CE, IEC 60529 | |
Mounting Orientation | Vertical | |
Operating Force | 11 N | |
Mechanical Life | 5000000Cycles | |
Select all | ||
---|---|---|
Brand Honeywell | ||
Actuator Type Roller Plunger | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
IP Rating IP67 | ||
Maximum Current 6A | ||
Housing Material Metal | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 250V | ||
Connection Type M12 | ||
Series NGC | ||
Action Type Snap Action | ||
Length 30mm | ||
Maximum Operating Temperature +75°C | ||
Width 16.7mm | ||
Depth 71.1mm | ||
Minimum Operating Temperature -25°C | ||
Standards Met CCC, CE, IEC 60529 | ||
Mounting Orientation Vertical | ||
Operating Force 11 N | ||
Mechanical Life 5000000Cycles | ||
- COO (Country of Origin):
- CN
Honeywell NGC Series Micro Switch Compact Limit Switches
Honeywells MICRO SWITCH™ Compact Limit Switches, NGC Series, are a configurable platform of medium-duty switches that allow the customer to choose SPDT (single pole, double throw) or DPDT (double pole, double throw) circuitry while maintaining the same housing and mounting footprint throughout the NGC Series. The NGC Series can be configured more than 380,000 ways carries global approvals. The compact series limit switches are sealed to IP67 for potential use in indoor and outdoor applications. The Compact switches offer durable packaging allows for use in many harsh indoor or outdoor applications, providing performance confidence .The switches also allow design engineers to standardize on a single footprint while meeting a variety of electrical requirements.
With two times the vibration (10 g) and shock (50 g) ratings of comparable competitive devices, the NGC Series can be implemented in the harshest of environmental conditions, providing enhanced reliability and repeatability
Broader current capacity (10 A) than comparable devices allows for potential use in a wider set of applications, making platform standardization an easier task.
With two times the vibration (10 g) and shock (50 g) ratings of comparable competitive devices, the NGC Series can be implemented in the harshest of environmental conditions, providing enhanced reliability and repeatability
Broader current capacity (10 A) than comparable devices allows for potential use in a wider set of applications, making platform standardization an easier task.
SPDT or DPDT configurable circuitry
Snap-action, positive-break contacts
Silver alloy and gold plated contact options
UL, CE, cUL, and CCC approvals
NEMA 1, 4, 12, 13; IP67 sealing
Metal and plastic housing options
Cable and connector terminations
Variety of heads and actuator levers
POTENTIAL INDUSTRIAL APPLICATIONS
Boom position detection
Elevators and escalators
Machine tools
Mobile light towers
Packaging equipment
Rail doors
Scissor lifts
Snap-action, positive-break contacts
Silver alloy and gold plated contact options
UL, CE, cUL, and CCC approvals
NEMA 1, 4, 12, 13; IP67 sealing
Metal and plastic housing options
Cable and connector terminations
Variety of heads and actuator levers
POTENTIAL INDUSTRIAL APPLICATIONS
Boom position detection
Elevators and escalators
Machine tools
Mobile light towers
Packaging equipment
Rail doors
Scissor lifts
Honeywell Limit Switch, NO/NC Contact Configuration, 240V AC Voltage Rating - NGC Series - NGCMA00NX01C
Use this limit switch from Honeywell to automate your system processes. Thanks to its long service life of up to five million cycles, you can rely on this device for long-term performance. The switch has an IP67 rating, indicating it's completely protected against dust and immersion in 1m of water for up to 30 minutes. It has an M12 4-pin connector for ease of installation.
Features & Benefits
• Rugged metal housing for resistance to impact and wear
• Snap-action mechanism for quick switching
• Wide operating temperature range between +25°C and +70°C for use in challenging environments
• Snap-action mechanism for quick switching
• Wide operating temperature range between +25°C and +70°C for use in challenging environments
Applications
• Factory floor machining
• Beverage production
• Automotive industry
• Beverage production
• Automotive industry
In what position should this switch be mounted?
To ensure best results, this switch should be mounted vertically in a well-ventilated space.
