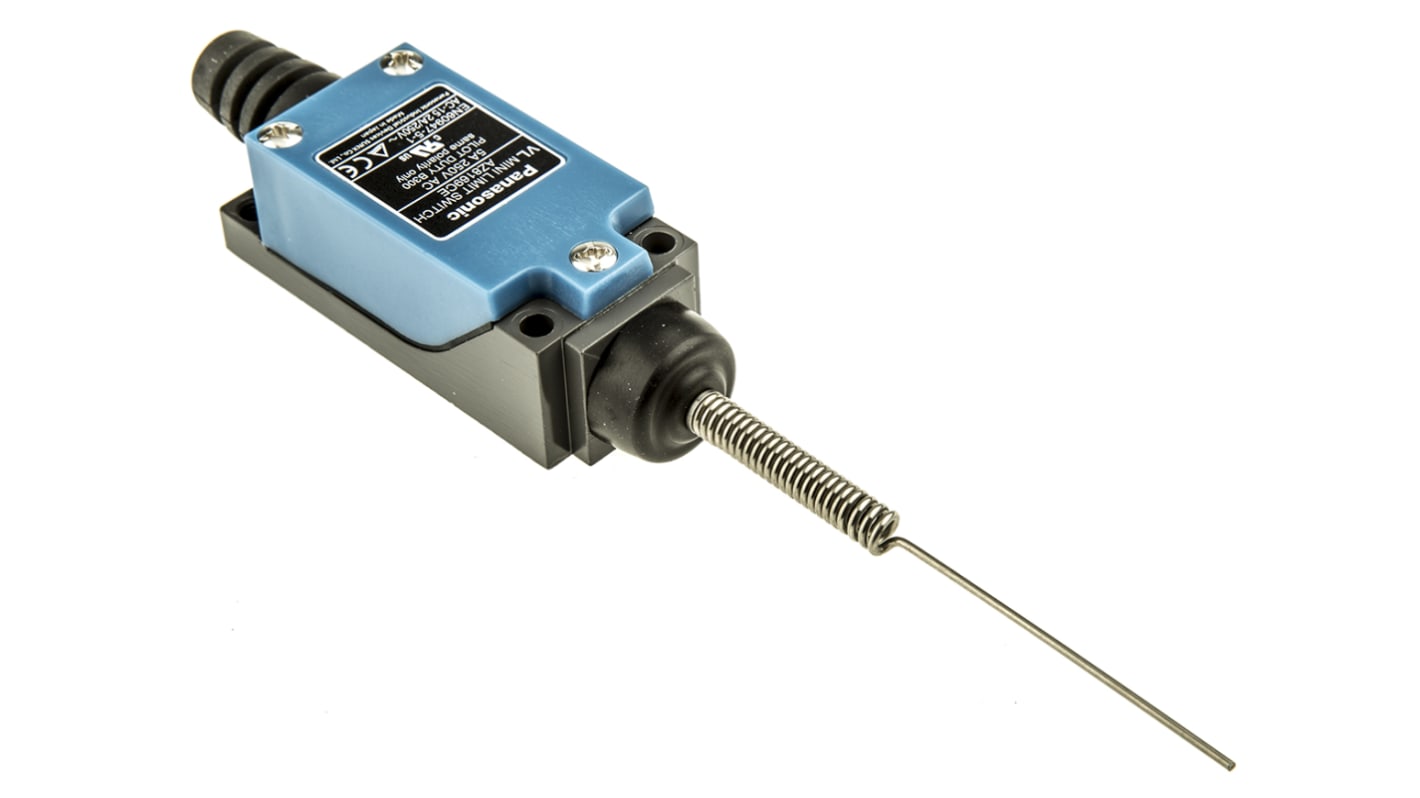

IP64 Limit Switch Coil Spring, NO/NC, 250V

  • RS Stock No. 199-002
  • Mfr. Part No. AZ8169CEJ
  • Brand Panasonic
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

AZ8 - Limit switch with spring rod

Compact design
Oil-resistant
Contact rating 5 A @ 250 Vac (resistive load)

Approvals

CE, UL, CSA, TÜV

Specifications
Attribute Value
Actuator Type Coil Spring
Pole and Throw Configuration DPST
Normal State Configuration NO/NC
IP Rating IP64
Maximum Current 5 A
Maximum AC Voltage 250V
Maximum DC Voltage 125V
Series AZ8
Terminal Type Screw
Length 156mm
Width 28mm
Mechanical Life Minimum 10⁷ cycles
Depth 25mm
Minimum Operating Temperature -20°C
Dimensions 156 x 28 x 25 mm
Maximum Operating Temperature +60°C
39 In stock for FREE next working day delivery
Price Each
£ 17.31
(exc. VAT)
£ 20.77
(inc. VAT)
Units
Per unit
1 - 4
£17.31
5 - 9
£16.78
10 +
£16.07
