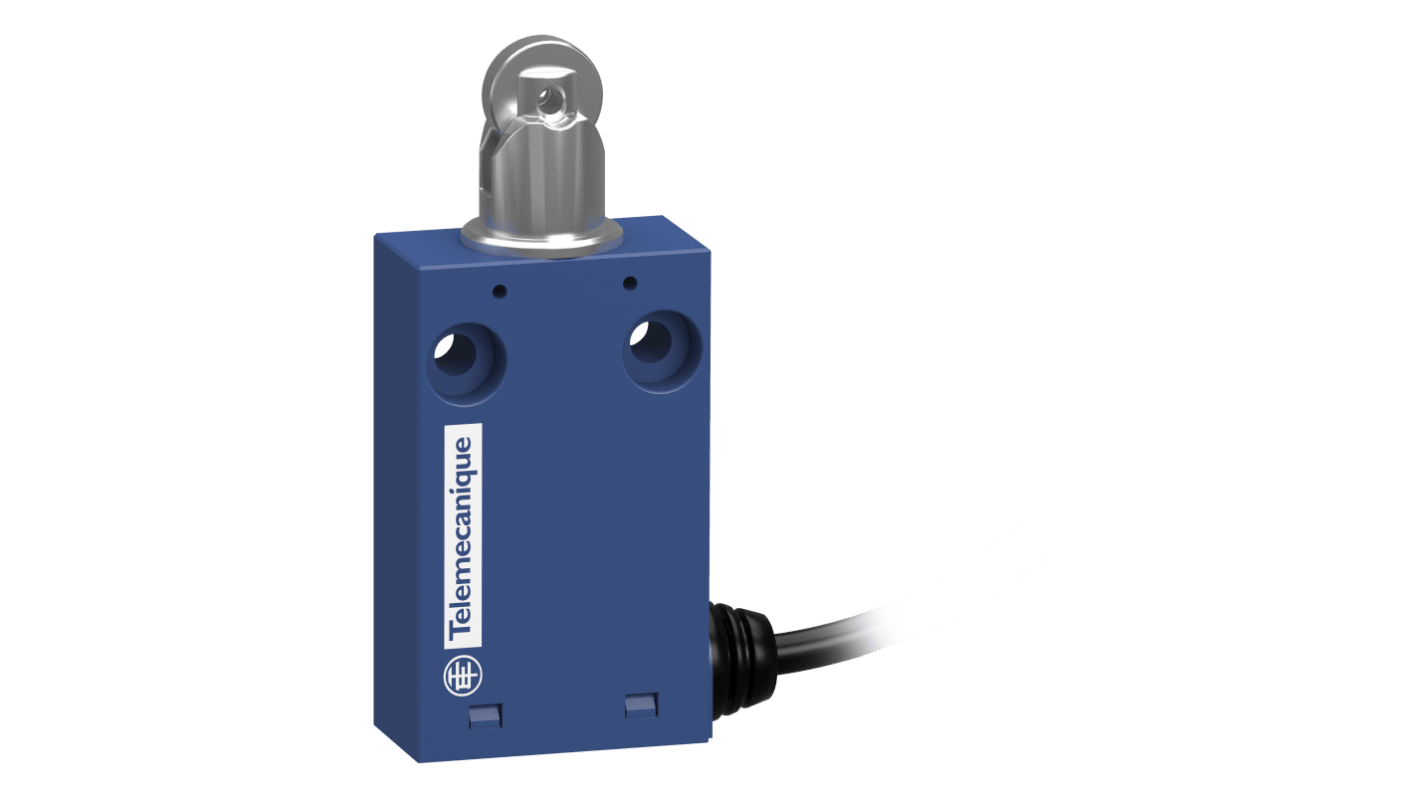

Telemecanique Sensors XCMH Series Roller Plunger Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing, 240V ac, 0.75A

RS Stock No.:: 194-163
Mfr. Part No.:: XCMH2102L1
Brand:: Telemecanique Sensors

Telemecanique Sensors XCMH Series Roller Plunger Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing, 240V ac, 0.75A

Subtotal (1 unit)*

£37.80

(exc. VAT)

£45.36

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

17 unit(s) ready to ship
Plus 15 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£37.80

*price indicative

Precision Limit Switching You Can Rely On with XCMH Series

Designed for durability and precision, Telemecanique XCMH limit switches provide dependable position control in even the toughest environments. With rugged construction and versatile configurations, they ensure consistent performance and long-lasting reliability across your industrial applications.

Shop Here

RS Stock No.:: 194-163
Mfr. Part No.:: XCMH2102L1
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Product Type	Limit Switch
	Actuator Type	Roller Plunger
	Contact Configuration	1 NO/1 NC
	IP Rating	IP67, IP66
	Housing Material	Plastic
	Contact Type	Snap Action
	Terminal Type	Cable
	Switching Current	0.75A
	Series	XCMH
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	240V ac
	Switching DC Voltage	250V dc
	Maximum Operating Temperature	70°C
	Standards/Approvals	CSA C22.2 No 14, IEC 60204-1, UL 508, IEC 60947-5-1
	Width	30mm
	Depth	70.4mm
	Length	16mm
	Hazardous Area Certification	No
	Mechanical Life	5000000Cycles
	Operating Force	35N

	Select all
	Brand Telemecanique Sensors
	Product Type Limit Switch
	Actuator Type Roller Plunger
	Contact Configuration 1 NO/1 NC
	IP Rating IP67, IP66
	Housing Material Plastic
	Contact Type Snap Action
	Terminal Type Cable
	Switching Current 0.75A
	Series XCMH
	Minimum Operating Temperature -25°C
	Switching AC Voltage 240V ac
	Switching DC Voltage 250V dc
	Maximum Operating Temperature 70°C
	Standards/Approvals CSA C22.2 No 14, IEC 60204-1, UL 508, IEC 60947-5-1
	Width 30mm
	Depth 70.4mm
	Length 16mm
	Hazardous Area Certification No
	Mechanical Life 5000000Cycles
	Operating Force 35N

Datasheet - XCMH2102L1

COO (Country of Origin):: ID

Telemecanique Sensors XCMH Series Limit Switch, IP67 Ingress Protection, 35N Operating Force - XCMH2102L1

This limit switch is a mechanical position sensor designed for industrial control and safety circuits, employing a roller plunger actuator to detect linear motion and provide snap-action switching. It is intended for panel or machinery mounting where a robust, compact switching device is required and operates across a wide ambient temperature range.

Features and Benefits:

• Snap-action contacts provide fast, positive state changes
• Cable termination enables straightforward field wiring
• Rated switching capability supports 250V DC operation
• Withstands 240V AC switching at 0.75A for control loads
• Operates reliably with a 35N actuation force
• Durable design endures 5,000,000 actuation cycles

Applications

• Suitable for conveyor end-of-travel detection
• Ideal for gate or door position monitoring
• Used with automation jigs requiring repeatable actuation
• Can be used for machine safety interlock detection
• Appropriate for limits in material handling equipment

What environmental protection does it offer for washdown areas?

The enclosure meets IP67 and IP66 ingress ratings, permitting temporary immersion and high-pressure water jets respectively.

Which contact arrangement is provided for control wiring flexibility?

It includes a single normally open and normally closed contact set to support both make and break control schemes.

What temperature range can be expected during operation?

The device functions across a minimum of -25°C up to a maximum of 70°C ambient.

What materials and approvals ensure compliance with industrial standards?

The housing is made from plastic and the switch adheres to CSA C22.2 No 14, IEC 60204-1, UL 508 and IEC 60947-5-1 standards.
