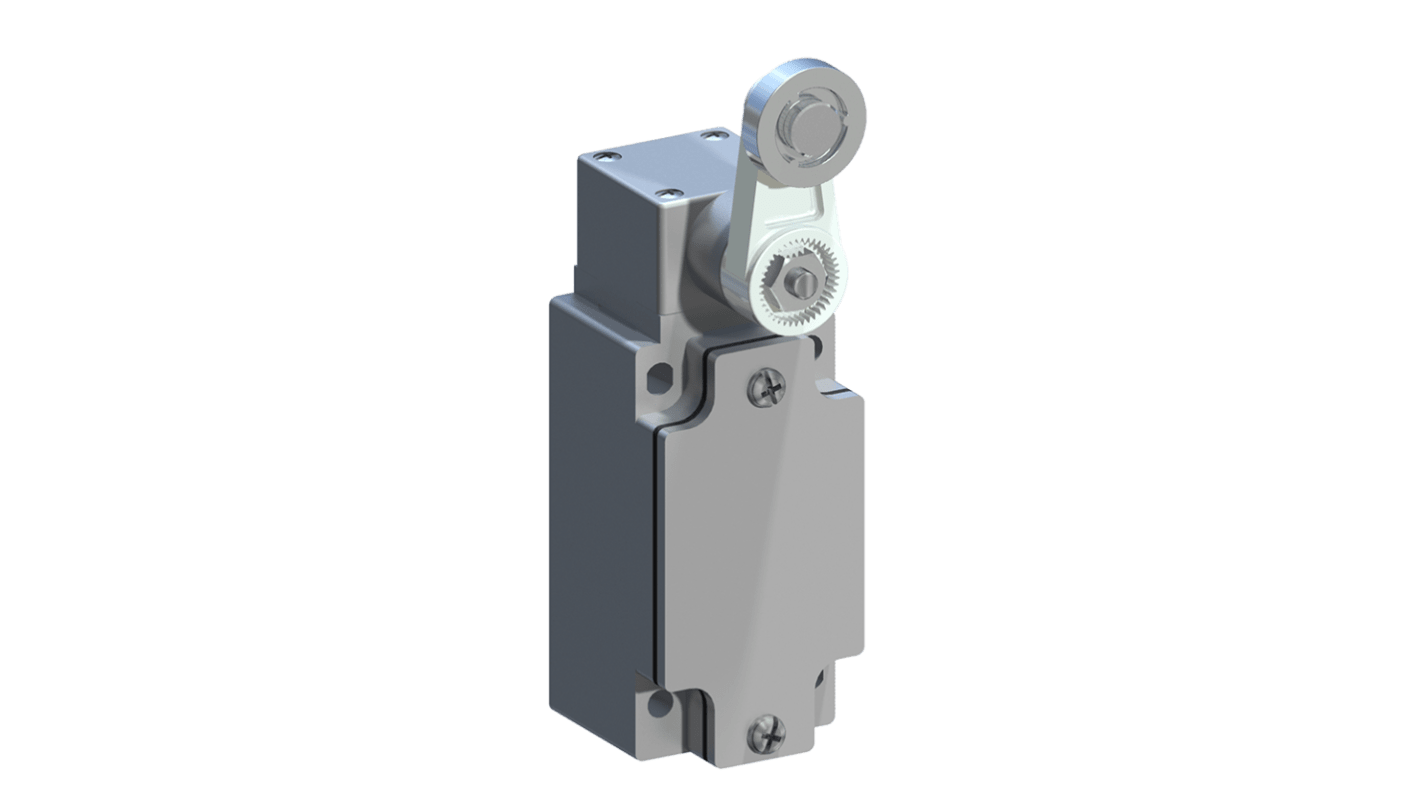

RS PRO Roller Lever Limit Switch, 1 NO/1 NC, IP66, Aluminium Housing, 400V ac, 10A
- RS Stock No.:
- 137-808
- Brand:
- RS PRO
Subtotal (1 unit)*
£47.99
(exc. VAT)
£57.59
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3 unit(s) shipping from 20 April 2026
- Plus 18 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.99 |
*price indicative
- RS Stock No.:
- 137-808
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Actuator Type | Roller Lever | |
| Product Type | Limit Switch | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP66 | |
| Housing Material | Aluminium | |
| Contact Type | Snap Action | |
| Terminal Type | M3.5 Screw Clamp Terminal | |
| Switching Current | 10A | |
| Switching AC Voltage | 400V ac | |
| Switching DC Voltage | 240V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 133mm | |
| Depth | 61.5mm | |
| Standards/Approvals | IEC/EN 60947 | |
| Width | 40mm | |
| Hazardous Area Certification | NO | |
| Conduit Entry | M20x1.5 Cable Gland | |
| Mechanical Life | 25000000Cycles | |
| Operating Force | 0.15Nm | |
| Mounting Orientation | Side | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Actuator Type Roller Lever | ||
Product Type Limit Switch | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP66 | ||
Housing Material Aluminium | ||
Contact Type Snap Action | ||
Terminal Type M3.5 Screw Clamp Terminal | ||
Switching Current 10A | ||
Switching AC Voltage 400V ac | ||
Switching DC Voltage 240V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Length 133mm | ||
Depth 61.5mm | ||
Standards/Approvals IEC/EN 60947 | ||
Width 40mm | ||
Hazardous Area Certification NO | ||
Conduit Entry M20x1.5 Cable Gland | ||
Mechanical Life 25000000Cycles | ||
Operating Force 0.15Nm | ||
Mounting Orientation Side | ||
- COO (Country of Origin):
- IT
RS PRO 10A Snap Action Roller Lever 1NO/1NC Limit Switch
A limit switch with a 22mm diameter metal roller lever providing presence/absence, positioning, travel and counting detection control. Constructed from hardwearing Aluminium rated to an IP66 level for protection from dust and water and class II protection against shock.;The switch is designed with snap action NO/NC contacts and an operating force of 0.15Nm. The roller lever limit switch is installed using M20 x 1.5 cable entry and M3.5 screw terminal complete with cable clamp for a secure connection.;The limit switch provides a service life of 25,000,000 mechanical operations and can achieve 3600 operations per hour. Suitable for industrial applications.
Features and Benefits
Roller lever limit switch;22mm in diameter metal roller;Snap action contacts;1NO/1NC configuration;IP66 rated;40 x 61.5 x 133mm dimensions;300g weight;25MΩ contact resistance
Standards and Approvals: IEC EN 60947-5-1
