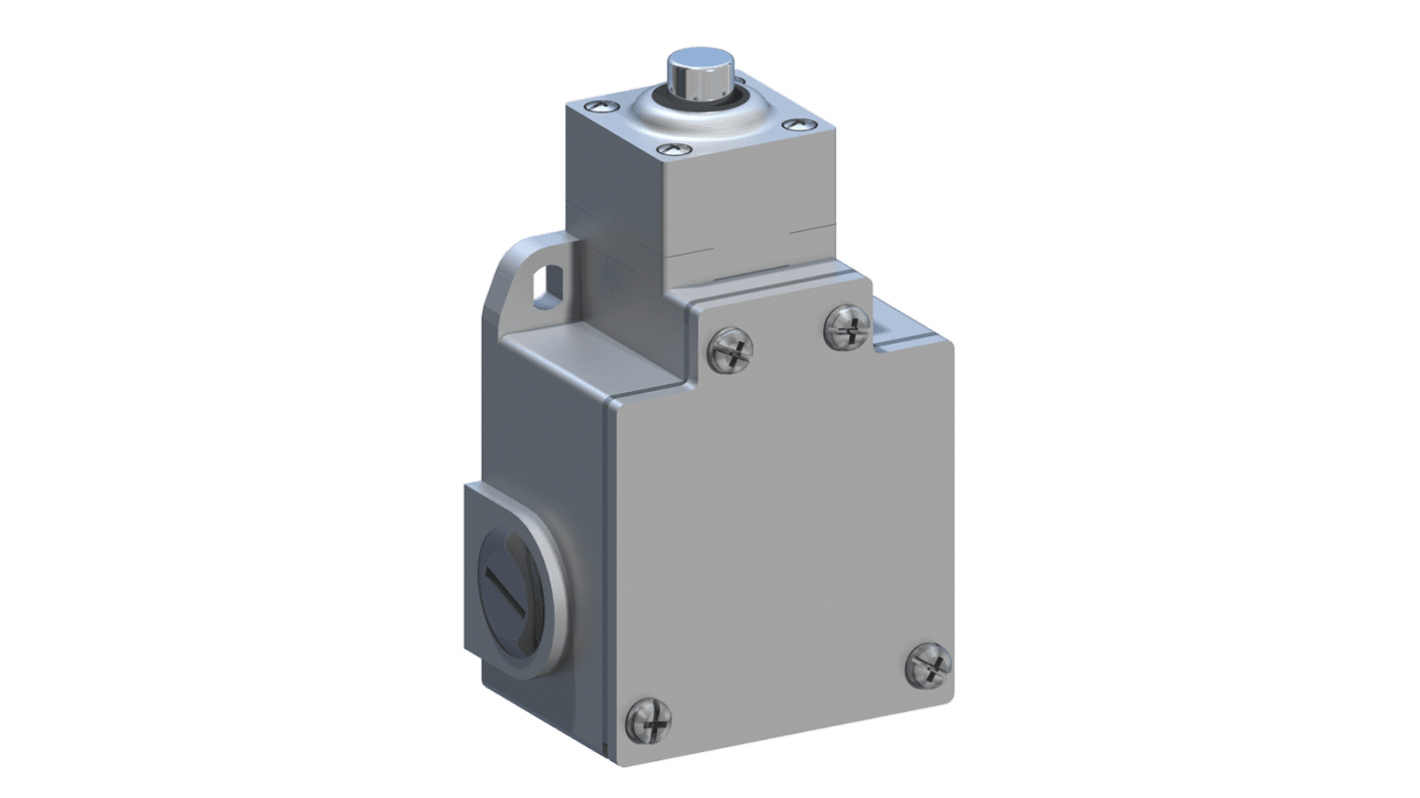

RS PRO Plunger Limit Switch, 1 NO/1 NC, IP66, Aluminium Housing, 400V ac, 10A
- RS Stock No.:
- 120-079
- Brand:
- RS PRO
Subtotal (1 unit)*
£30.48
(exc. VAT)
£36.58
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 45 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.48 |
*price indicative
- RS Stock No.:
- 120-079
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Limit Switch | |
| Actuator Type | Plunger | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP66 | |
| Housing Material | Aluminium | |
| Contact Type | Snap Action | |
| Switching Current | 10A | |
| Terminal Type | M3.5 Screw Clamp Terminal | |
| Switching AC Voltage | 400V ac | |
| Minimum Operating Temperature | -25°C | |
| Switching DC Voltage | 250V dc | |
| Maximum Operating Temperature | 70°C | |
| Width | 60mm | |
| Standards/Approvals | IEC/EN 60947 | |
| Length | 102.5mm | |
| Depth | 43mm | |
| Hazardous Area Certification | NO | |
| Operating Force | 30N | |
| Mechanical Life | 30000000Cycles | |
| Conduit Entry | M20x1.5 Cable Gland | |
| Mounting Orientation | Side | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Limit Switch | ||
Actuator Type Plunger | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP66 | ||
Housing Material Aluminium | ||
Contact Type Snap Action | ||
Switching Current 10A | ||
Terminal Type M3.5 Screw Clamp Terminal | ||
Switching AC Voltage 400V ac | ||
Minimum Operating Temperature -25°C | ||
Switching DC Voltage 250V dc | ||
Maximum Operating Temperature 70°C | ||
Width 60mm | ||
Standards/Approvals IEC/EN 60947 | ||
Length 102.5mm | ||
Depth 43mm | ||
Hazardous Area Certification NO | ||
Operating Force 30N | ||
Mechanical Life 30000000Cycles | ||
Conduit Entry M20x1.5 Cable Gland | ||
Mounting Orientation Side | ||
- COO (Country of Origin):
- IT
RS PRO 10A Snap Action Plunger 1NO/1NC Limit Switch
A limit switch with a Stainless Steel plunger actuator providing presence/absence, positioning, travel and counting detection control. Constructed from hardwearing Thermoplastic rated to an IP66 level for protection from dust and water and class II protection against shock.;The switch is designed with snap action NO/NC contacts and an operating force of 30N. The plunger limit switch is installed using the 3 M20 x 1.5 cable entry and M3.5 screw terminal complete with cable clamp for a secure connection.;The limit switch provides a service life of 30,000,000 mechanical operations and can achieve 3600 operations per hour. Suitable for industrial applications.
Features and Benefits
Plunger limit switch;Stainless Steel actuator;Snap action contacts;1NO/1NC configuration;IP66 rated;60 x 43 x 102.5mm dimensions;265g weight;25MΩ contact resistance
Standards and Approvals: IEC EN 60947-5-1
