Available in standard screw connection with or without strain relief.
Strain relief version includes top cover.
Also available in spring loaded connection versions

DIN VDE 0628, EN/IEC 61535 (in draft).

UL 1977 approved for Use in Data, Signal, Control and Power Applications

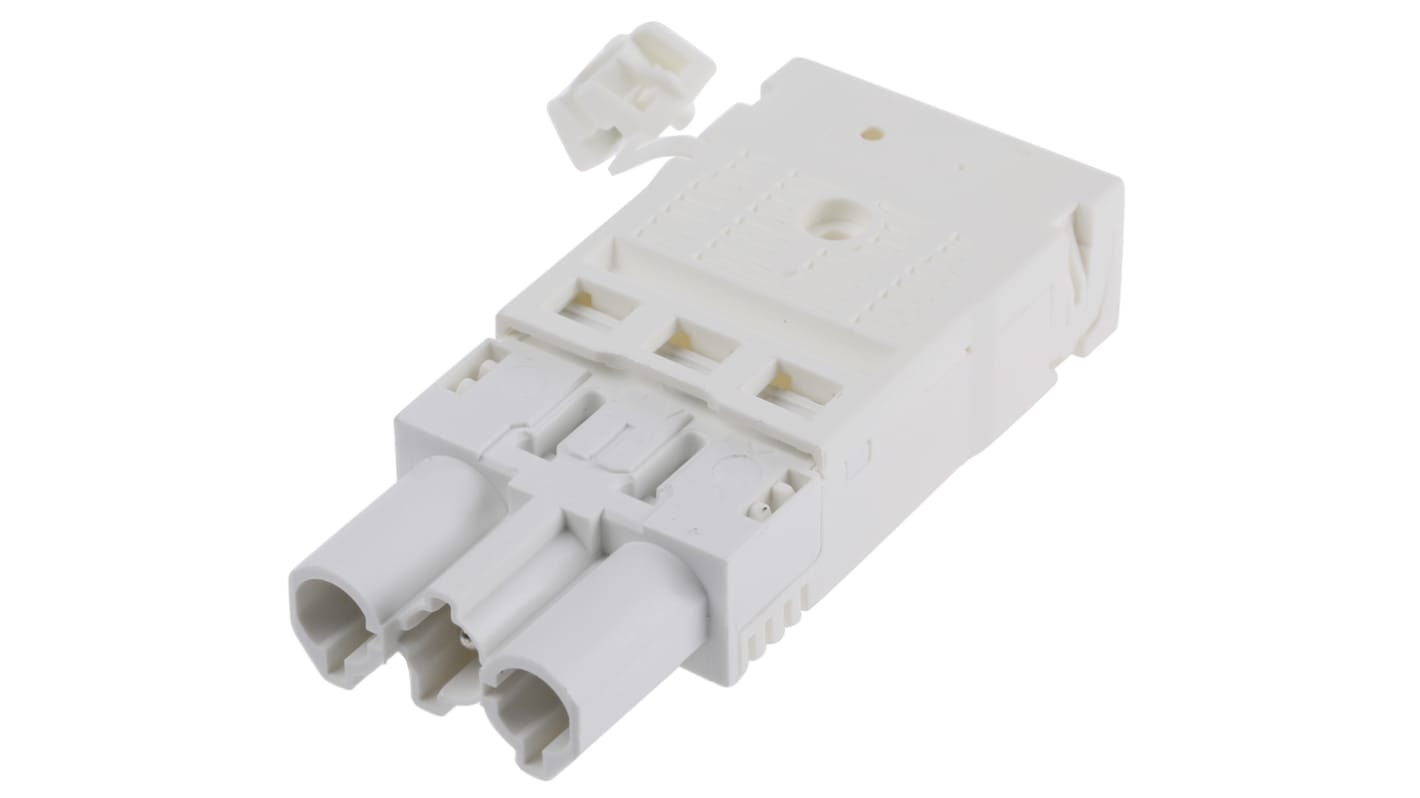

The Wieland GST connector is an ST18 series male, 3-pole, 3-way connector with strain relief. It has an electric rating of 250V and 16A. Strain relief types include a top cover. Mechanical and colour coding provides for safe and easy separation of different applications, virtually eliminating mismating errors a leading earth contact and an optional locking device all contribute to ensuring the safest possible connections. This is available in white colour. Also available in spring-loaded connection versions.

• 0.5 to 2.5mm² wire size
• Connection cycles 50 to 100 (at 16A resistive load)
• Contact material is made of brass (tin-plated)
• Operating temperature is 100°C
• Thermoplastic used as insulating material

• Lighting application
• Construction sites
• Used in data, signal, control and power applications
• Shop displays and exhibition stand wiring
• Factory assembled equipment

• UL listed
• DIN
• VDE 0628
• EN
• IEC 61535
• DIN
• VDE 0470
• IP20C rated
• IP40 rated

GST18 Compact Connectors

The GST18 is a pluggable device connector for use in lighting and other factory-assembled equipment. Mechanical and color coding provides for a safe and easy separation of different applications, virtually eliminating mis-mating errors. An IP20 touch-safe design, a leading earth contact and an optional locking device all contribute to ensure the safest possible connections.
