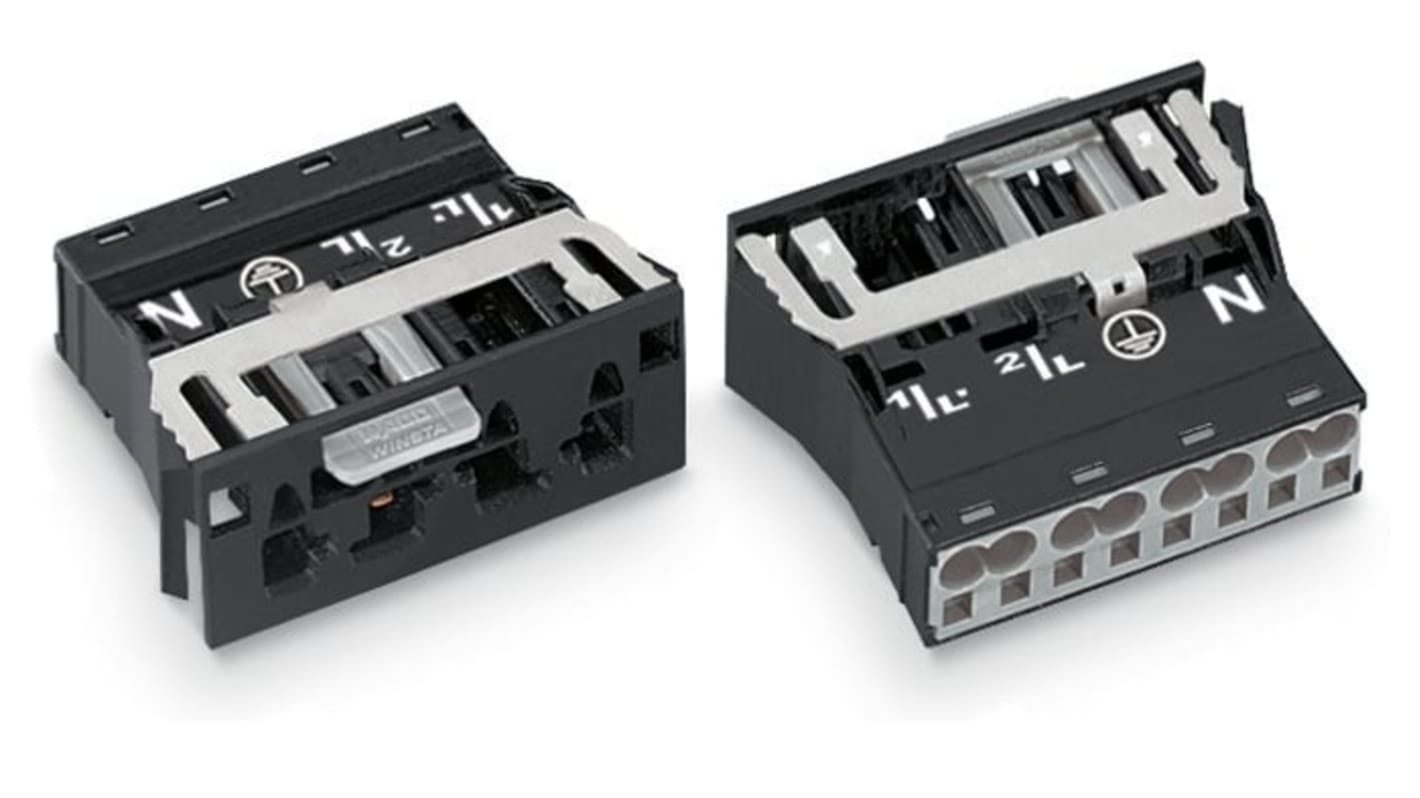

WAGO 770 Series Snap-in Plug Male Cage Clamp, 4-Pole, 25A, 4-Way, IP20
- RS Stock No.:
- 279-3910
- Mfr. Part No.:
- 770-714/007-000
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£268.66
(exc. VAT)
£322.39
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £268.66 | £2.687 |
*price indicative
- RS Stock No.:
- 279-3910
- Mfr. Part No.:
- 770-714/007-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Lighting Connector | |
| Pole Format | 4 | |
| Series | 770 | |
| Pitch | 10mm | |
| Number of Ways | 4 | |
| Connector Gender | Male | |
| Colour | Black | |
| Sub Type | Plug | |
| Termination Type | Cage Clamp | |
| Mount Type | Snap-in | |
| Voltage | 600V | |
| Lighting Connector Current | 25A | |
| IP Rating | IP20 | |
| Wire Size | 12, 20AWG | |
| Number of Rows | 1 | |
| Standards/Approvals | UL 1977, IEC/EN 60664-1, RoHS, DNV GL. Lloyd's Register, IEC 61984 | |
| Strain Relief | Yes | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Lighting Connector | ||
Pole Format 4 | ||
Series 770 | ||
Pitch 10mm | ||
Number of Ways 4 | ||
Connector Gender Male | ||
Colour Black | ||
Sub Type Plug | ||
Termination Type Cage Clamp | ||
Mount Type Snap-in | ||
Voltage 600V | ||
Lighting Connector Current 25A | ||
IP Rating IP20 | ||
Wire Size 12, 20AWG | ||
Number of Rows 1 | ||
Standards/Approvals UL 1977, IEC/EN 60664-1, RoHS, DNV GL. Lloyd's Register, IEC 61984 | ||
Strain Relief Yes | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
- COO (Country of Origin):
- DE
The WAGO Snap-in plug with direct ground contact has insulation made from polyamide.
Flammability class per UL94 V0
Contact plating tin
