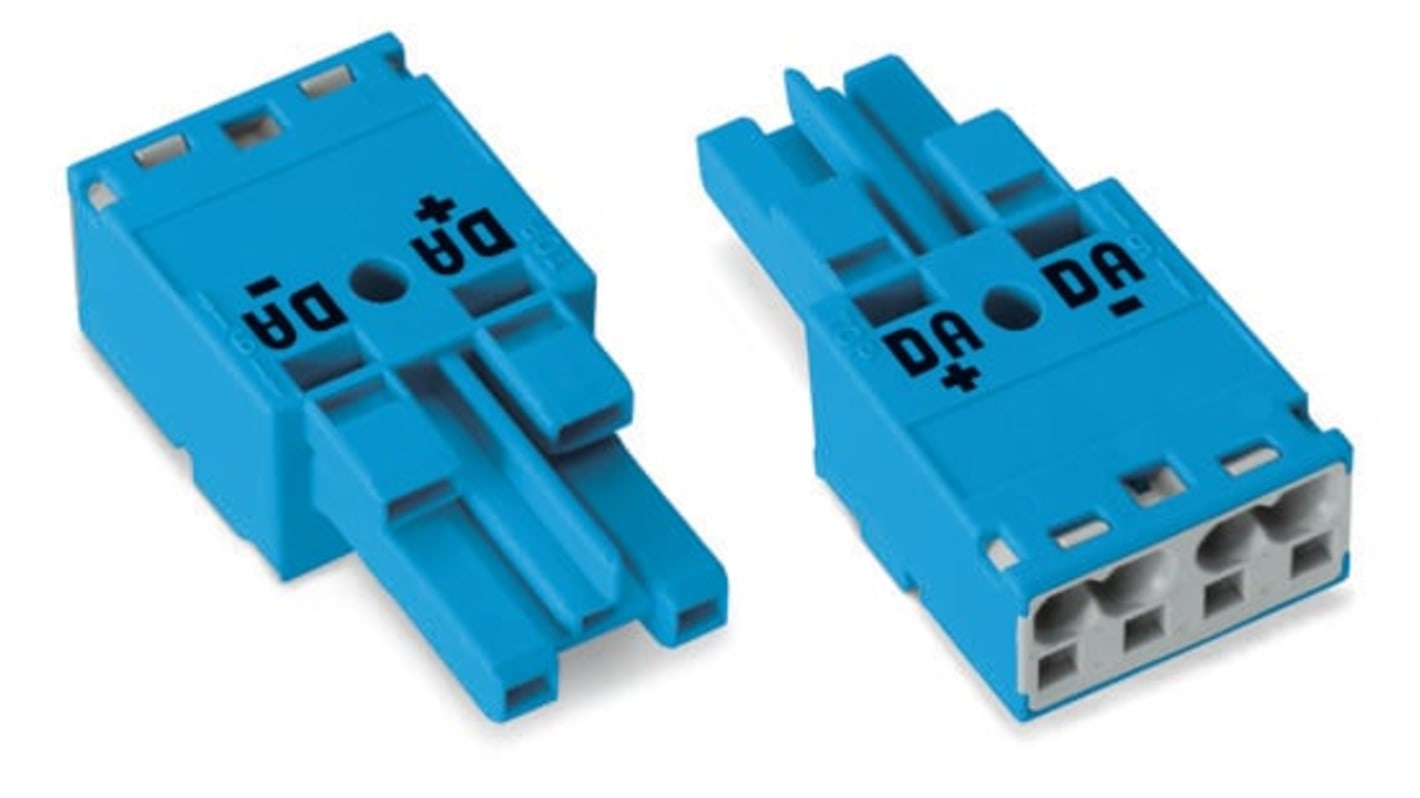

WAGO 770 Series Cable Lighting Connector Female Push-in, 2-Pole, 25A, 2-Way, IP20
- RS Stock No.:
- 271-0303
- Mfr. Part No.:
- 770-1102
- Brand:
- WAGO
Temporarily out of stock
- RS Stock No.:
- 271-0303
- Mfr. Part No.:
- 770-1102
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Lighting Connector | |
| Pole Format | 2 | |
| Series | 770 | |
| Number of Ways | 2 | |
| Pitch | 10mm | |
| Connector Gender | Female | |
| Colour | Blue | |
| Termination Type | Push-in | |
| Sub Type | Lighting Connector | |
| Mount Type | Cable | |
| Voltage | 250V | |
| Lighting Connector Current | 25A | |
| IP Rating | IP20 | |
| Wire Size | 12, 20AWG | |
| Contact Gender | Female | |
| Number of Rows | 2 | |
| Standards/Approvals | UL 1977, UL 1059, IEC 61535, EN 61535 | |
| Strain Relief | Yes | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Lighting Connector | ||
Pole Format 2 | ||
Series 770 | ||
Number of Ways 2 | ||
Pitch 10mm | ||
Connector Gender Female | ||
Colour Blue | ||
Termination Type Push-in | ||
Sub Type Lighting Connector | ||
Mount Type Cable | ||
Voltage 250V | ||
Lighting Connector Current 25A | ||
IP Rating IP20 | ||
Wire Size 12, 20AWG | ||
Contact Gender Female | ||
Number of Rows 2 | ||
Standards/Approvals UL 1977, UL 1059, IEC 61535, EN 61535 | ||
Strain Relief Yes | ||
Contact Plating Tin | ||
Contact Material Copper | ||
RoHS Status: Exempt
The WAGO Pluggable installation connectors provides protection against mismating eliminates errors. This device has quick replacement of defective units during ongoing operation.
Simple circuits
I coding for use in building automation
Exact dimensions
