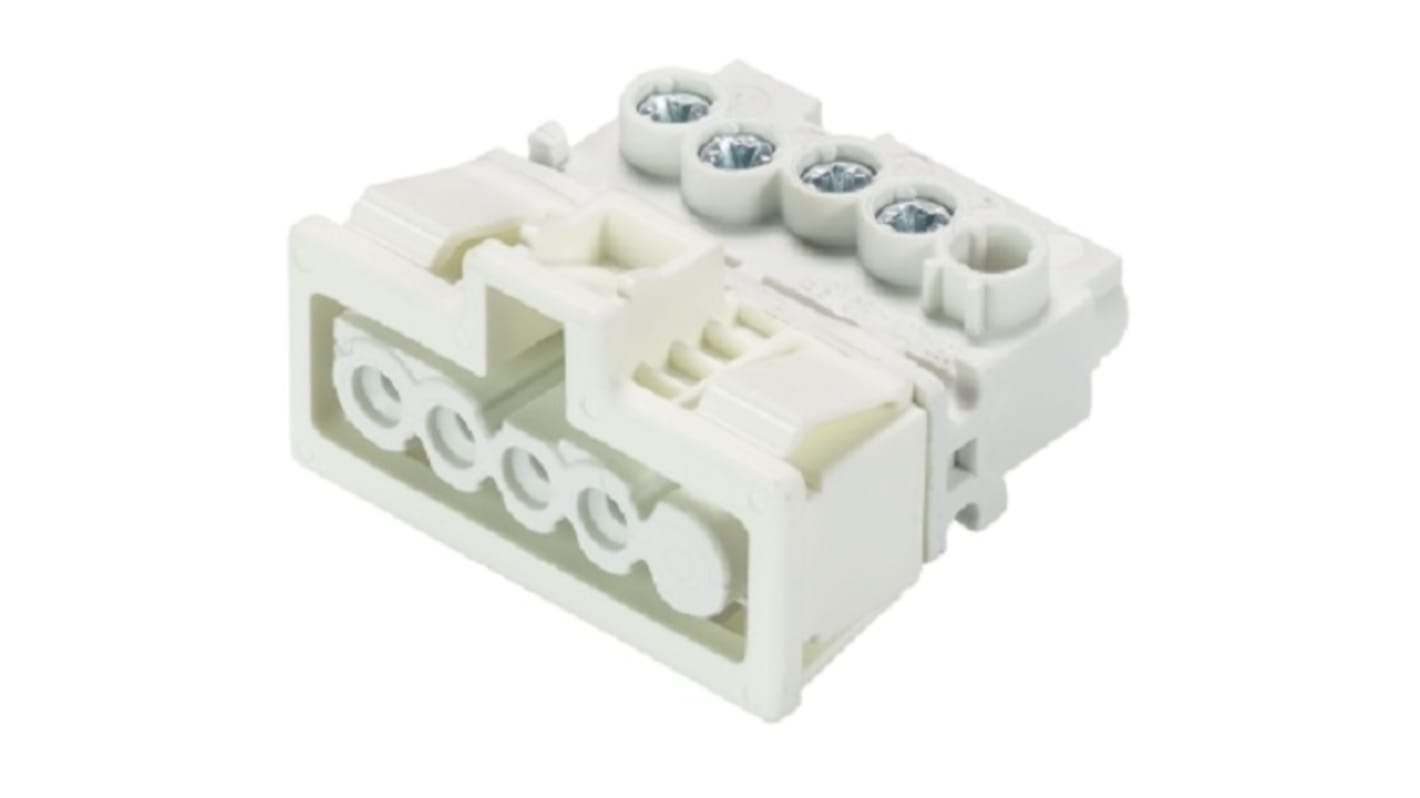

Wieland Gesis Series Connector, 4-Pole, Female, Panel Mount, 16A, IP20

View all Lighting Connectors

Subtotal (1 box of 100 units)*

£419.60

(exc. VAT)

£503.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 100 unit(s) ready to ship
  • Plus 999,999,800 unit(s) shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
100 +£4.196£419.60

*price indicative

RS Stock No.:
190-4061
Mfr. Part No.:
91.941.9053.0
Brand:
Wieland
Find similar products by selecting one or more attributes.
Select all

Brand

Wieland

Pole Format

4

Series

Gesis

Gender

Female

Plug/Socket

Socket

Colour

White

Type

Connector

Mounting Type

Panel Mount

Current Rating

16A

Voltage Rating

400 V

IP Rating

IP20

Wire Size

0.5 → 1.5 mm²

Strain Relief

Yes

Contact Material

Brass

Contact Plating

Silver

Termination Method

Screw Down

Panel Mount Plugs and Sockets


Available in 2, 3, 4 & 5 pole versions
Screw connection
Snap into a cut out in a panel wall (Material thickness 0.5 – 1.5mm)
Integrated locking device

Approvals

Din VDE 0606 Din VDE 0627 (5 pole)


GST15i Mini Compact Connector System


A pluggable electrical installation system designed for confined spaces. Ideal for general electrical wiring distribution and lighting applications. 2, 3, 4 or 5 pole schemes can be implemented using just a small number of components. The system complements the existing, industry standard, ST and GST connector systems but is physically smaller whilst maintaining the 250V 16A rating.


Rated Voltage 250-400V ac
Rated Current 16A
Instalation material Thermoplastic (halogen free)
Contact material Brass (plated)
Operation temperature 100°C
Connection cycles 50 to 100 (at 16A resistive load)
IP20

Approvals

Din VDE 0606 Din VDE 0627 (5 pole)
