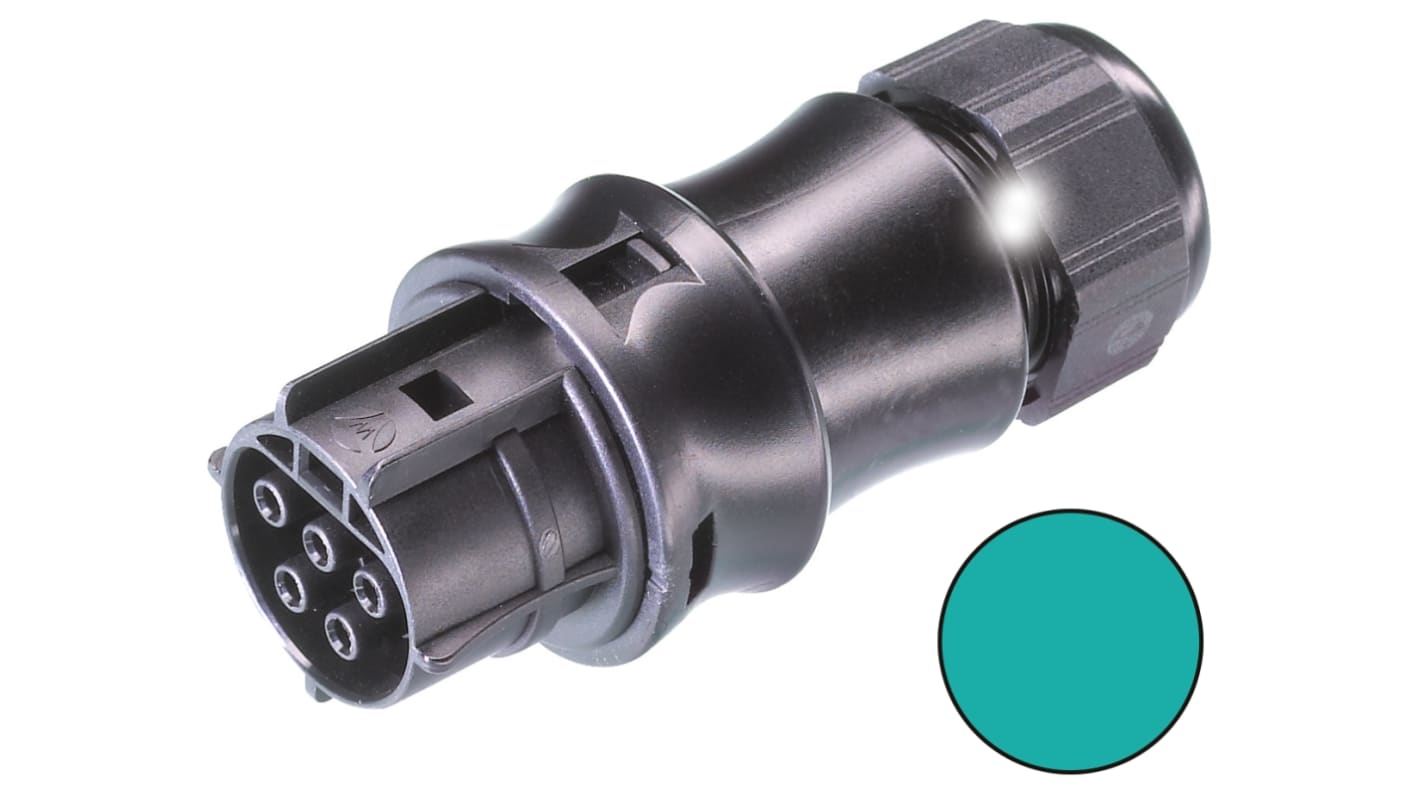

Wieland RST20i5 Series Connector, 5-Pole, Female, 1-Way, Cable Mount, 20A, IP66, IP68, IP69
- RS Stock No.:
- 170-7927
- Mfr. Part No.:
- 96.051.4053.6
- Brand:
- Wieland
Subtotal (1 box of 100 units)*
£1,485.70
(exc. VAT)
£1,782.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 100 + | £14.857 | £1,485.70 |
*price indicative
- RS Stock No.:
- 170-7927
- Mfr. Part No.:
- 96.051.4053.6
- Brand:
- Wieland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wieland | |
| Pole Format | 5 | |
| Series | RST20i5 | |
| Gender | Female | |
| Number of Ways | 1 | |
| Plug/Socket | Plug | |
| Colour | Blue | |
| Type | Connector | |
| Mounting Type | Cable Mount | |
| Current Rating | 20A | |
| Voltage Rating | 250 V | |
| IP Rating | IP66, IP68, IP69 | |
| Wire Size | 0.75 → 4 mm² | |
| Strain Relief | Yes | |
| Contact Material | CuZn | |
| Diameter | 34.6mm | |
| Termination Method | Screw | |
Select all | ||
|---|---|---|
Brand Wieland | ||
Pole Format 5 | ||
Series RST20i5 | ||
Gender Female | ||
Number of Ways 1 | ||
Plug/Socket Plug | ||
Colour Blue | ||
Type Connector | ||
Mounting Type Cable Mount | ||
Current Rating 20A | ||
Voltage Rating 250 V | ||
IP Rating IP66, IP68, IP69 | ||
Wire Size 0.75 → 4 mm² | ||
Strain Relief Yes | ||
Contact Material CuZn | ||
Diameter 34.6mm | ||
Termination Method Screw | ||
- COO (Country of Origin):
- DE
Wieland Gesis® RST20i5 Cable Mount Circular Connectors
The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST classic series has a modular design for a range of standard applications. Suitable for outdoor and harsh environments in industrial and plant, construction sites and solar power systems.
Features and Benefits
- The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of 50/120V
- Connectors are cable mount with 1 connection for each pole
- Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity
- Connectors lock together and are self-locking
Applications and Uses
- Electrical installations
- General network applications
- Switching applications
- Multiphase systems
Approvals
CSA, DVE, UL
