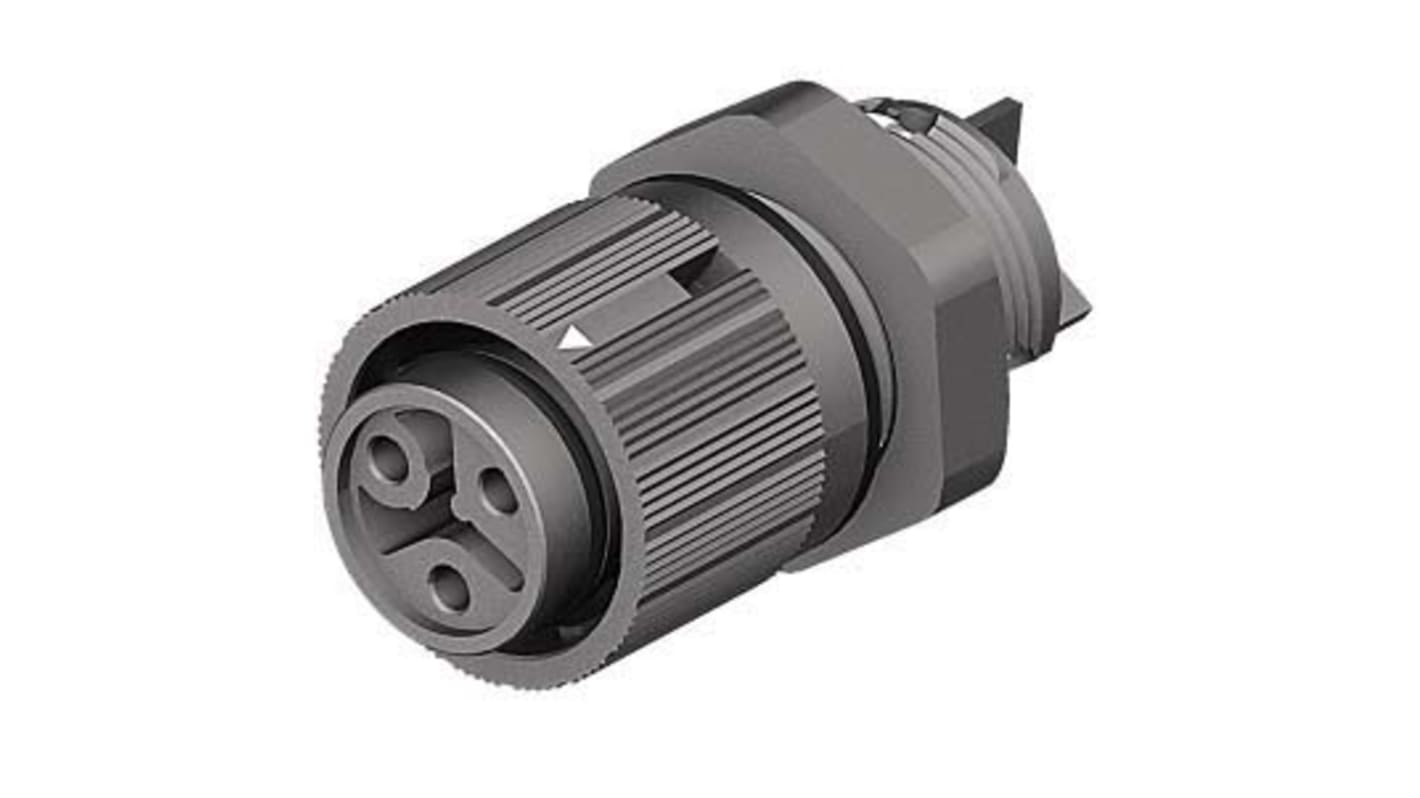

Wieland RST Mini Series Mini Connector, 3-Pole, Female, 1-Way, Panel Mount, 16A, IP66, IP68, IP69
- RS Stock No.:
- 144-3067
- Mfr. Part No.:
- 46.031.5053.1
- Brand:
- Wieland
Bulk discount available
Subtotal (1 unit)*
£6.86
(exc. VAT)
£8.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 133 unit(s) ready to ship
- Plus 18 unit(s) ready to ship from another location
- Plus 5 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £6.86 |
10 - 24 | £5.99 |
25 + | £5.65 |
*price indicative
- RS Stock No.:
- 144-3067
- Mfr. Part No.:
- 46.031.5053.1
- Brand:
- Wieland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wieland | |
Pole Format | 3 | |
Series | RST Mini | |
Gender | Female | |
Number of Ways | 1 | |
Plug/Socket | Socket | |
Colour | Black | |
Type | Mini Connector | |
Mounting Type | Panel Mount | |
Current Rating | 16A | |
Voltage Rating | 400 V | |
IP Rating | IP66, IP68, IP69 | |
Wire Size | 0.25 → 1.5 mm² | |
Diameter | 19.9mm | |
Contact Plating | Silver | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand Wieland | ||
Pole Format 3 | ||
Series RST Mini | ||
Gender Female | ||
Number of Ways 1 | ||
Plug/Socket Socket | ||
Colour Black | ||
Type Mini Connector | ||
Mounting Type Panel Mount | ||
Current Rating 16A | ||
Voltage Rating 400 V | ||
IP Rating IP66, IP68, IP69 | ||
Wire Size 0.25 → 1.5 mm² | ||
Diameter 19.9mm | ||
Contact Plating Silver | ||
Contact Material Brass | ||
- COO (Country of Origin):
- DE
Wieland RST Mini Series Connector
The Wieland RST mini-series is a female, 3-pole, one-way mini connector. It is a cable mount and comes with strain relief. It has an electric rating of 400V and 16A. It uses screw connection technology. They represent a complete stand one installation system. It is initial installations, modifications and extensions are realized quickly, while incorrect installations are consistently avoided and the plant's increased protection rating is reliably secured. The successful gesis installation philosophy is not troubled by harsh environments.
Features and Benefits
• Colour coded and mechanically coded
• Compact design
• Easy to switch from traditional cable glands to the convenient pluggable alternative
• Pollution degree 3
• Save up to 80% of installation time
• Twist lock technology
• Unused slots must be protected against moisture and dirt penetration
• Compact design
• Easy to switch from traditional cable glands to the convenient pluggable alternative
• Pollution degree 3
• Save up to 80% of installation time
• Twist lock technology
• Unused slots must be protected against moisture and dirt penetration
Applications
• Construction sites
• Functional buildings
• Outdoor lighting
• Solar systems
• Functional buildings
• Outdoor lighting
• Solar systems
Certifications
• BV
• CSA
• DNV/GL
• IP66 rated
• IP68 rated
• IP69 rated
• LR
• RINA
• UL listed
• VDE
• CSA
• DNV/GL
• IP66 rated
• IP68 rated
• IP69 rated
• LR
• RINA
• UL listed
• VDE
