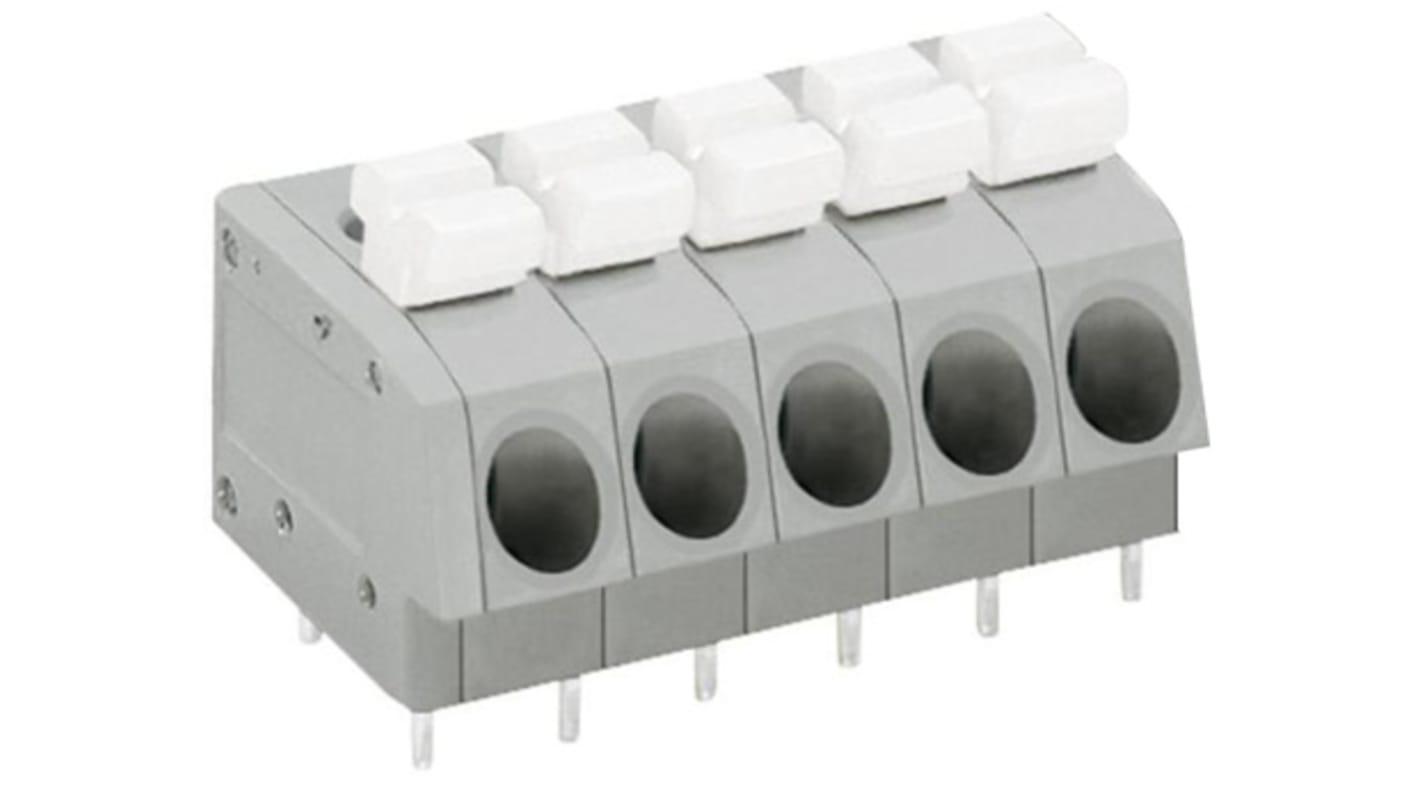

WAGO 804 Series PCB Terminal Strip, 5-Pole, Female, 5-Way, PCB Mount, 10 (UL/CSA) A, 24 (IEC/EN 60664-1) A
- RS Stock No.:
- 126-8928
- Mfr. Part No.:
- 804-105
- Brand:
- WAGO
Bulk discount available
Subtotal (1 pack of 5 units)*
£7.58
(exc. VAT)
£9.095
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.516 | £7.58 |
| 25 - 45 | £1.426 | £7.13 |
| 50 + | £1.318 | £6.59 |
*price indicative
- RS Stock No.:
- 126-8928
- Mfr. Part No.:
- 804-105
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Pole Format | 5 | |
| Series | 804 | |
| Gender | Female | |
| Number of Ways | 5 | |
| Plug/Socket | Socket | |
| Colour | Grey | |
| Type | PCB Terminal Strip | |
| Mounting Type | PCB Mount | |
| Current Rating | 10 (UL/CSA) A, 24 (IEC/EN 60664-1) A | |
| Voltage Rating | 630 V | |
| Wire Size | 20 → 12 AWG | |
| Termination Method | Push-In Cage Clamp | |
| Contact Plating | Tin | |
Select all | ||
|---|---|---|
Brand WAGO | ||
Pole Format 5 | ||
Series 804 | ||
Gender Female | ||
Number of Ways 5 | ||
Plug/Socket Socket | ||
Colour Grey | ||
Type PCB Terminal Strip | ||
Mounting Type PCB Mount | ||
Current Rating 10 (UL/CSA) A, 24 (IEC/EN 60664-1) A | ||
Voltage Rating 630 V | ||
Wire Size 20 → 12 AWG | ||
Termination Method Push-In Cage Clamp | ||
Contact Plating Tin | ||
- COO (Country of Origin):
- CH
Wago Terminal Strip with Pushbuttons, 5mm Pitch, Right Angle
The 804 Series offered by Wago are PCB terminal strips with push in CAGE CLAMP® connection and push button actuation.
Features and Benefits
• Terminal strips with push in CAGE CLAMP® connection and push button actuation
• Push in termination of solid and ferruled, fine-stranded conductors
• A large conductor entry accommodates conductors with a cross-section up to 12 AWG with an insulation diameter up to 4.2 mm
• Terminal strips with spacers to increase pin spacing
• Push in termination of solid and ferruled, fine-stranded conductors
• A large conductor entry accommodates conductors with a cross-section up to 12 AWG with an insulation diameter up to 4.2 mm
• Terminal strips with spacers to increase pin spacing
Wago PCB Terminal Blocks
