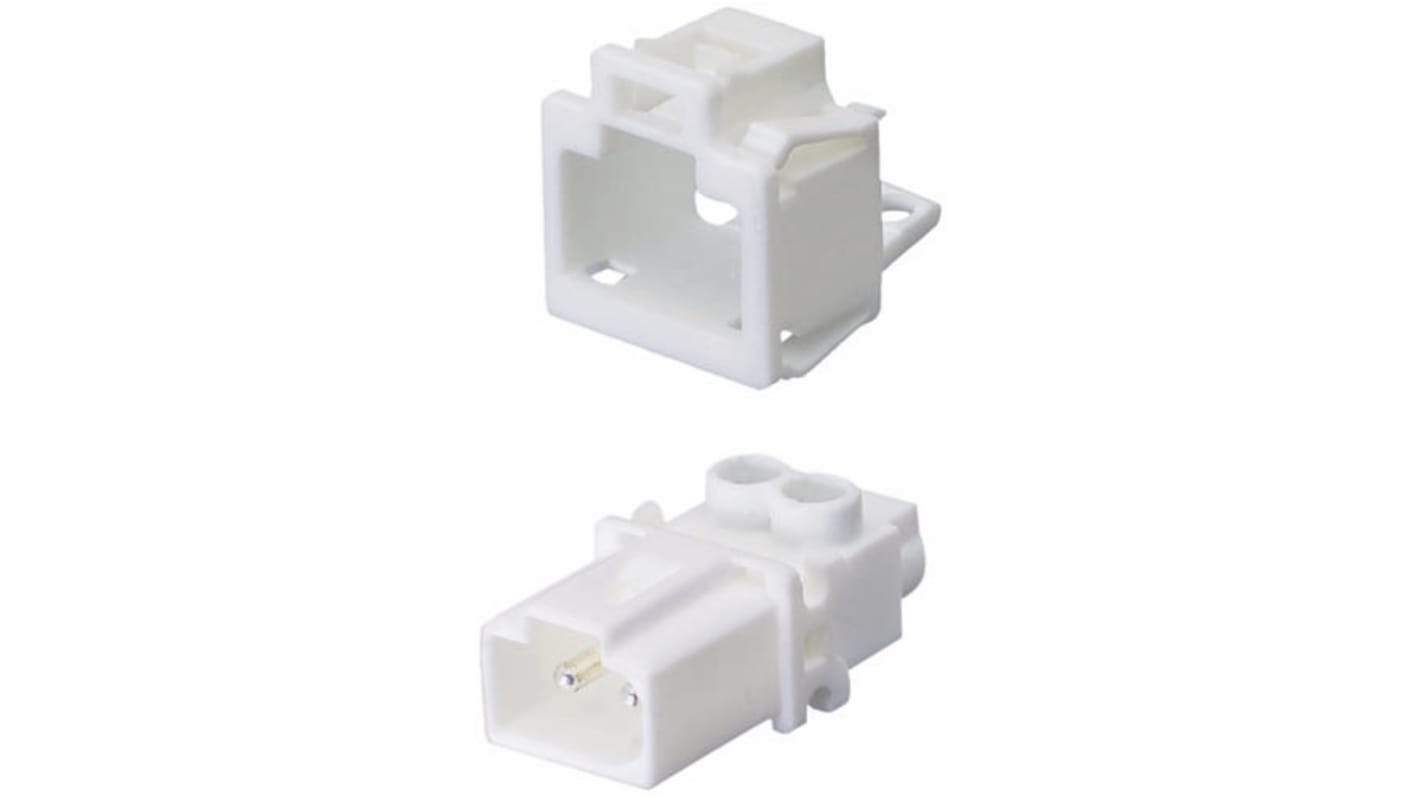

Wieland Gesis Series Power, Male, Panel Mount, 16A

View all Lighting Connectors

Subtotal (1 unit)*

£2.50

(exc. VAT)

£3.00

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 15 unit(s), ready to ship
Units
Per unit
1 +£2.50

*price indicative

RS Stock No.:
399-561
Mfr. Part No.:
91.922.9053.0
Brand:
Wieland
Find similar products by selecting one or more attributes.
Select all

Brand

Wieland

Series

Gesis

Gender

Male

Type

Power

Mounting Type

Panel Mount

Current Rating

16A

Voltage Rating

250 V

Contact Material

Brass

Termination Method

Screw Down

COO (Country of Origin):
DE

Panel Mount Plugs and Sockets


Available in 2, 3, 4 & 5 pole versions
Screw connection
Snap into a cut out in a panel wall (Material thickness 0.5 – 1.5mm)
Integrated locking device

Approvals

Din VDE 0606 Din VDE 0627 (5 pole)


GST15i Mini Compact Connector System


A pluggable electrical installation system designed for confined spaces. Ideal for general electrical wiring distribution and lighting applications. 2, 3, 4 or 5 pole schemes can be implemented using just a small number of components. The system complements the existing, industry standard, ST and GST connector systems but is physically smaller whilst maintaining the 250V 16A rating.


Rated Voltage 250-400V ac
Rated Current 16A
Instalation material Thermoplastic (halogen free)
Contact material Brass (plated)
Operation temperature 100°C
Connection cycles 50 to 100 (at 16A resistive load)
IP20

Approvals

Din VDE 0606 Din VDE 0627 (5 pole)
