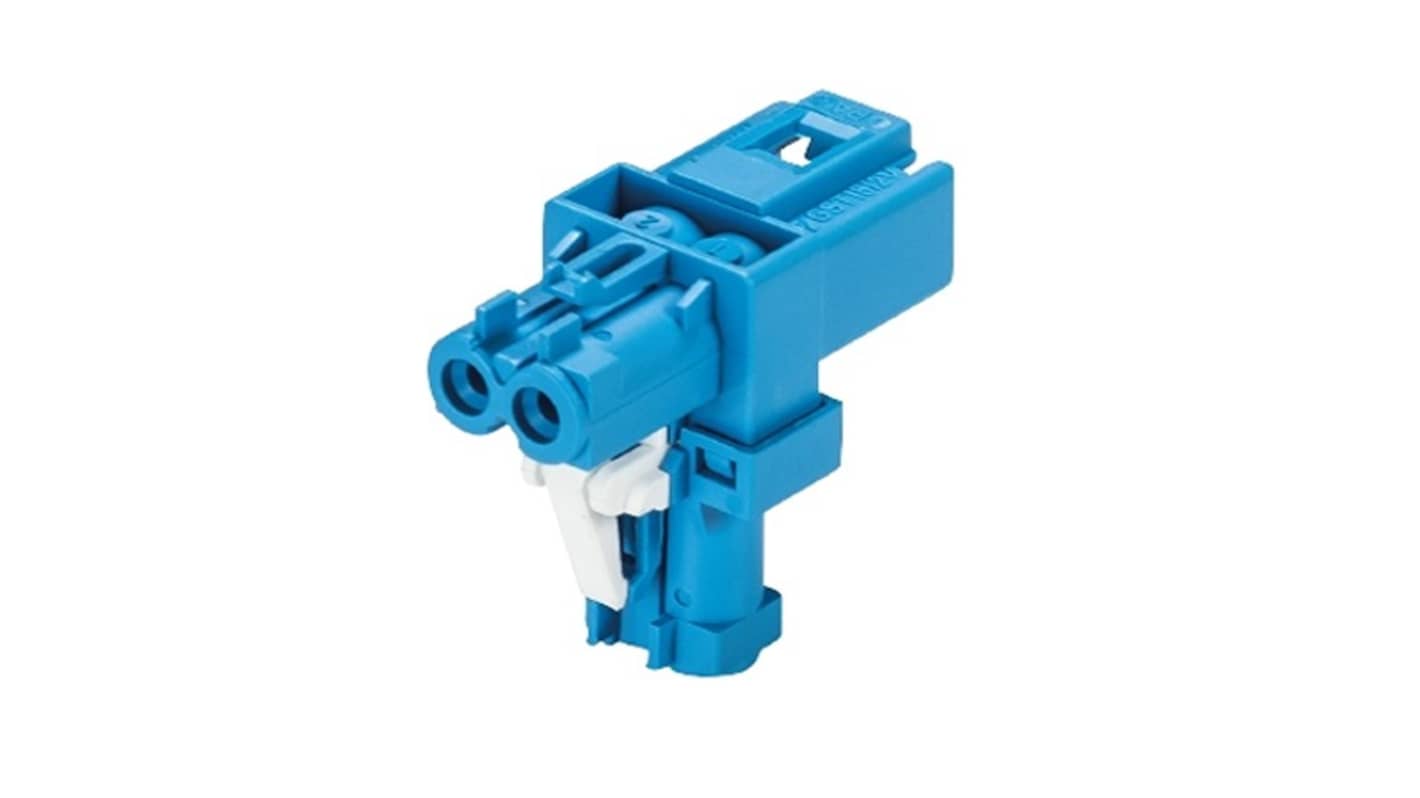

Wieland Gesis MINI Series Surface T-Distributor Screw, 2-Pole, 20A, 3-Way, IP20
- RS Stock No.:
- 212-710
- Mfr. Part No.:
- 91.020.1453.0
- Brand:
- Wieland
Subtotal (1 unit)*
£9.97
(exc. VAT)
£11.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.97 |
*price indicative
- RS Stock No.:
- 212-710
- Mfr. Part No.:
- 91.020.1453.0
- Brand:
- Wieland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wieland | |
| Product Type | Lighting Connector | |
| Pole Format | 2 | |
| Series | Gesis MINI | |
| Number of Ways | 3 | |
| Colour | Light Blue | |
| Termination Type | Screw | |
| Sub Type | T-Distributor | |
| Mount Type | Surface | |
| Voltage | 50V | |
| Lighting Connector Current | 20A | |
| IP Rating | IP20 | |
| Wire Size | 0.25, 2.5mm² | |
| Number of Rows | 1 | |
| Standards/Approvals | UL Recognised, RoHS Compliant, CE, EN 50041, Contains Lead (CAS No. 7439-92-1) | |
| Strain Relief | Yes | |
| Contact Material | Copper Zinc Alloy | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand Wieland | ||
Product Type Lighting Connector | ||
Pole Format 2 | ||
Series Gesis MINI | ||
Number of Ways 3 | ||
Colour Light Blue | ||
Termination Type Screw | ||
Sub Type T-Distributor | ||
Mount Type Surface | ||
Voltage 50V | ||
Lighting Connector Current 20A | ||
IP Rating IP20 | ||
Wire Size 0.25, 2.5mm² | ||
Number of Rows 1 | ||
Standards/Approvals UL Recognised, RoHS Compliant, CE, EN 50041, Contains Lead (CAS No. 7439-92-1) | ||
Strain Relief Yes | ||
Contact Material Copper Zinc Alloy | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- DE
The Wieland Gases Mini T distributor without mounting option cascadable number of poles 2 rated voltage 50 V rated current 16 A number of inputs 1 number of outputs 2 color of coding contact carrier light blue.
Rated current 16 A
Rated voltage 50 V
Rated impulse voltage 4 kV
