RS PRO Electronic Compact Fluorescent Lighting Ballast, 240 V

View all Lighting Ballasts
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO, 30 → 210V Output, 73.5W Output, 350mA Output, Constant Current
RS Stock No.
796-1898

Each

£56.48

(exc. VAT)

£67.78

(inc. VAT)

RS Stock No.:
778-5329
Distrelec Article No.:
304-19-735
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Lighting Ballast

Number of Lamps

2

Ballast Type

Electronic

Compatible Lamp Type

Compact Fluorescent

Voltage

240 V

Dimmable

No

High Frequency

Yes

Length

360mm

Minimum Operating Temperature

-25°C

Compatible Lamp Designation

TC-F, TC-L, T8, T5 HO

Maximum Operating Temperature

60°C

Height

26mm

Standards/Approvals

REACH, RoHS, EU

Width

30 mm

Series

HFL

RS PRO 18 → 36 (T8) W, 24 to 36 (TC-F) W, 24 to 39 (T5 HO) W, 34 to 40 (TC-L) W Electronic

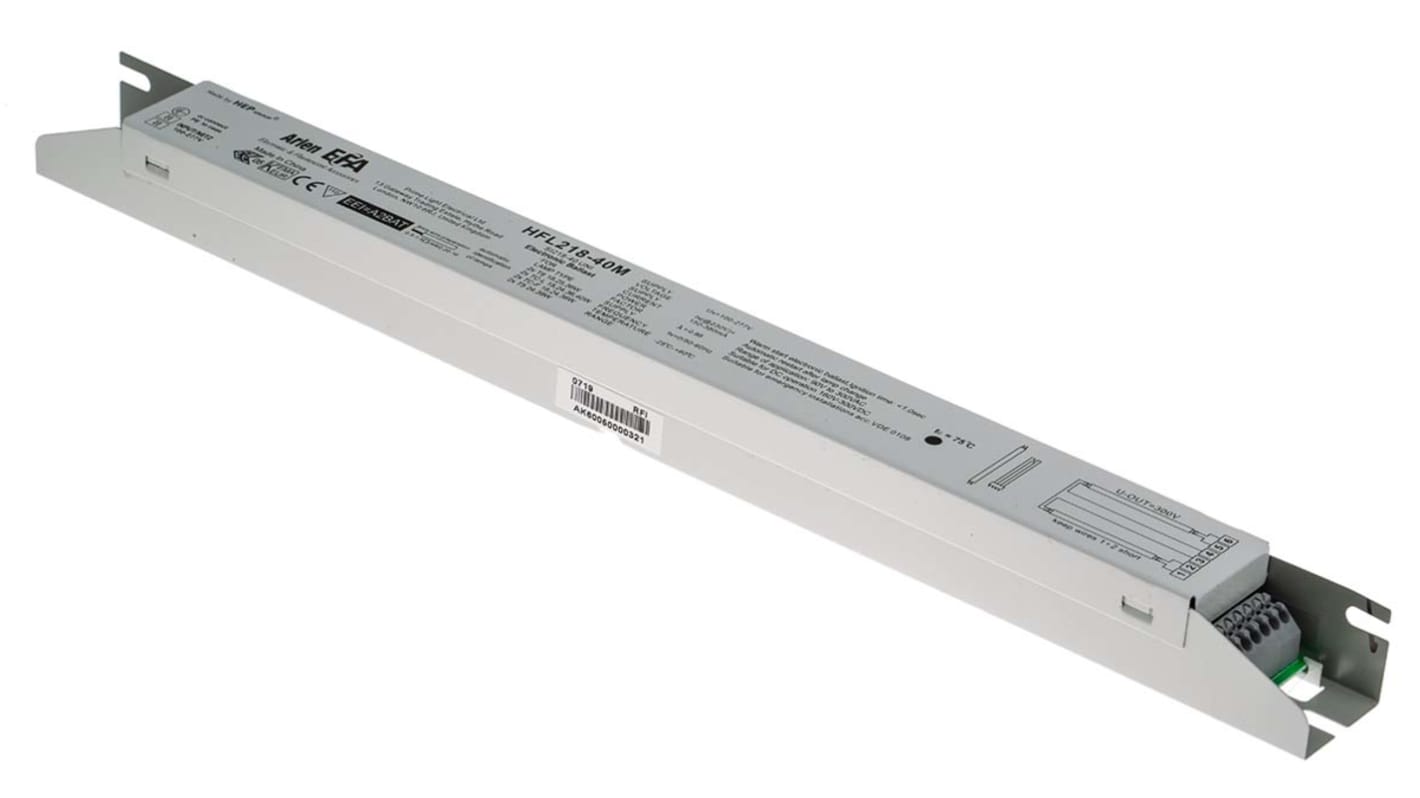

Safely start and operate your lighting system with this RS PRO universal voltage high-frequency electronic lighting ballast. It's compatible with a range of fluorescent tube shapes (T5 HO, T8, TC-F, TC-L) and starts to warm them within one second. You'll find it in both homes and businesses.

There's automatic cut-off protection when a lamp comes to the end of its life, plus auto-restart when you replace a defective tube. The ballast will automatically identify the lamp type during installation. It works best at universal rated voltages of 100 V AC to 277 V AC and 160 V AC to 300 V DC.

Like all of our RS PRO range, it's been stringently tested. This product has a lifespan of 80,000 hours and comes with short-circuit protection and open circuit safety. Made from environmentally friendly components, it also comes with an EU energy efficiency rating of A2.

Features and Benefits


• High-frequency lighting ballast

• Electronic

• Universal voltage

• Wattage of 18 to 36 (T8) W, 24 to 36 (TC-F) W, 24 to 39 (T5 HO) W, 34 to 40 (TC-L) W

• Two lamps

• Supports lamp shapes of T5 HO, T8, TC-F and TC-L

• Supports compact fluorescent and fluorescent lamps

• Voltage rating of 220 to 240 V

• Non-dimmable

• Dimensions of (L) 360 mm x (W) 30 mm x (H) 26 mm

• Operates from -25°C to +60°C

• EU energy efficiency rating of A2
